Linx 5900 - Multi-Stage Alarm Connectors

Page 33 of 33 FA69388–2 English
Jun 2013
33
How To Use the Parallel I/O Option
Linx 5900 & 7900
3.5 Multi-stage alarm connectors
The multi-stage alarm can use either a six-pin volt-free contact (VFC) connector or
seven-pin 24 V connector for outputs.
The function of the connector pins for each connector is shown in the following diagrams.

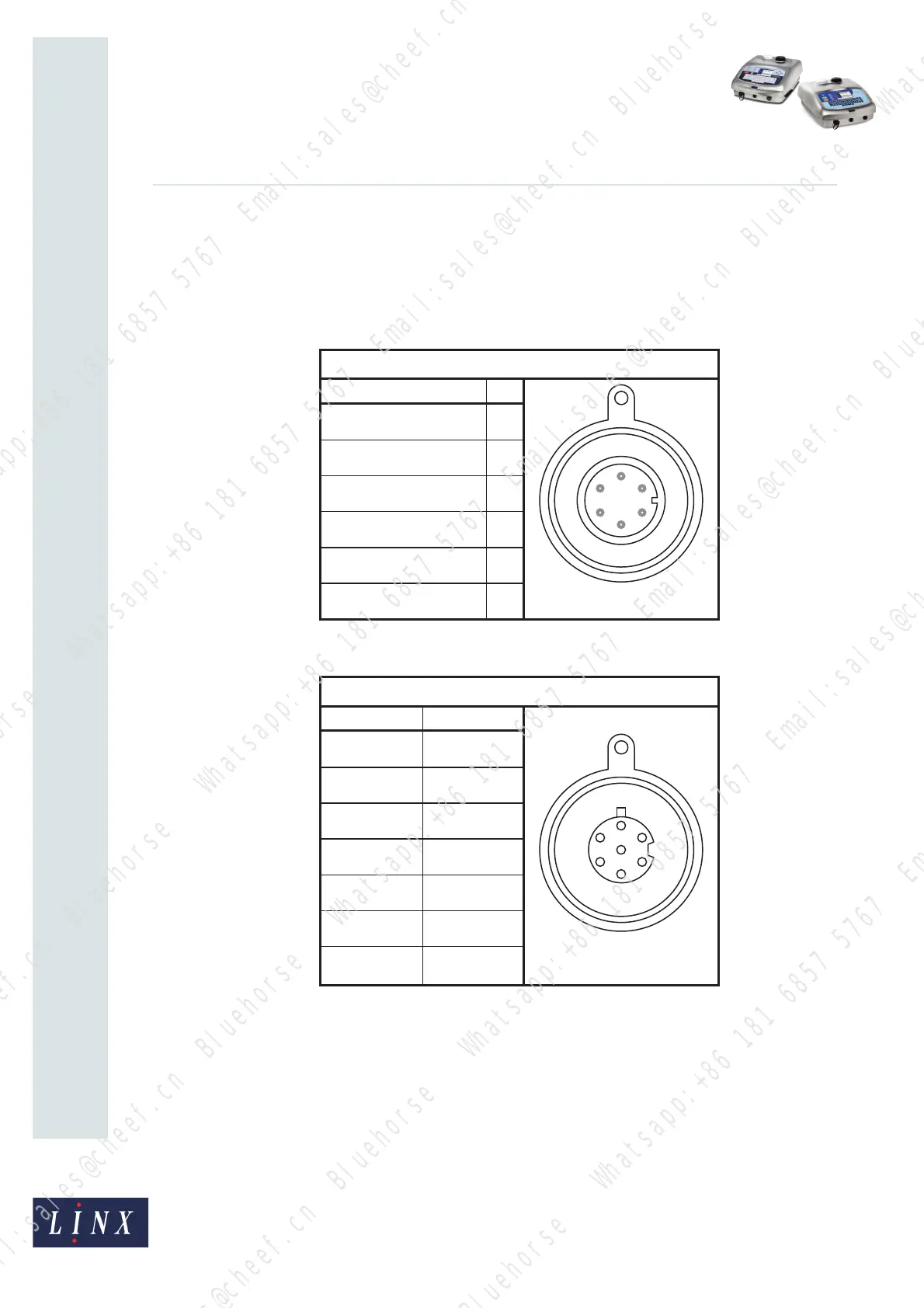

Figure 49. Multi-stage alarm: volt-free contact (VFC) six-pin connector
Figure 50. Multi-stage alarm: 24 V seven-pin connector
69391
MULTI-STAGE ALARM (VFC) CONNECTOR
Signal Pin
N/C (Normally Closed) 4 1
N/O (Normally Open) 4 2
Common 3
N/O (Normally Open) 3 4
N/O (Normally Open) 2 5
N/C (Normally Closed) 1 6
6
5
4
3
2
1
6-Way Plug Connector
on the Printer
1
2
7
3
4
5
6
7-Way Socket Connector
on the Printer
69392
MULTI-STAGE ALARM (24 V) CONNECTOR
Signal Pin
Alarm 1 1
Alarm 2 2
Alarm 3 3
24 V 4
Not used 5
Alarm 4 6
Not used 7
