How To Create Bar Codes
Linx 7900
1 At the Message Editor page (Figure 2 on page 3), select the text field “ABC”. Then
select Edit > Options to display the Options page for this field.

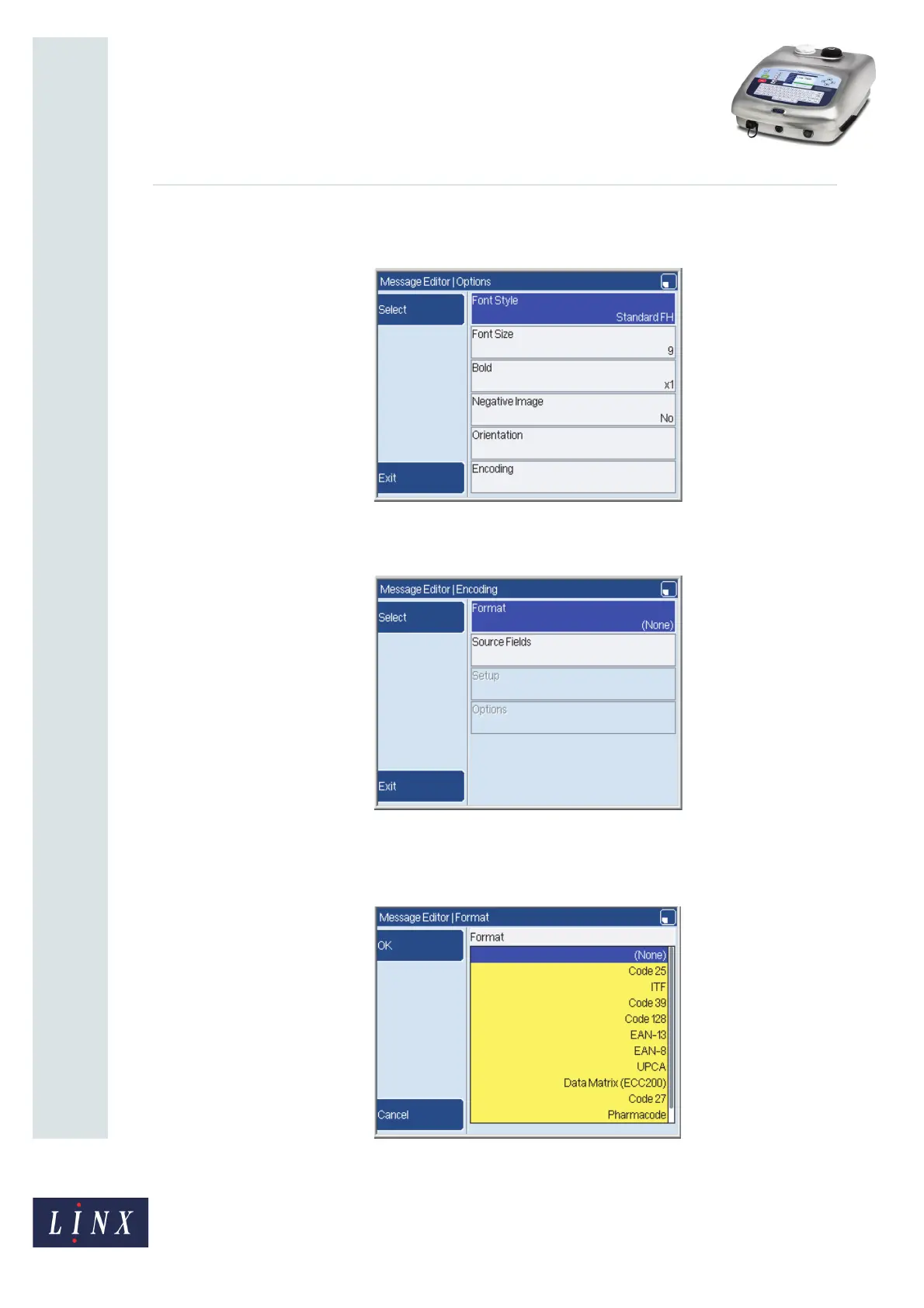

Figure 3. Options page
2 Select the Encoding option. The printer displays the Encoding page.
Figure 4. Encoding page
3 Select the Format option. The printer displays a list of bar the code formats that are
available.
Figure 5. Format page
69032
69298
