Page 14 of 23 FA69350–2 English
Jun 2013
23
How To Create a Production Schedule
Linx 7900
4 To print multiple prints from a single trigger, select the Production Schedule you
require from the Message Store. The Inter-Print Distance page is displayed.

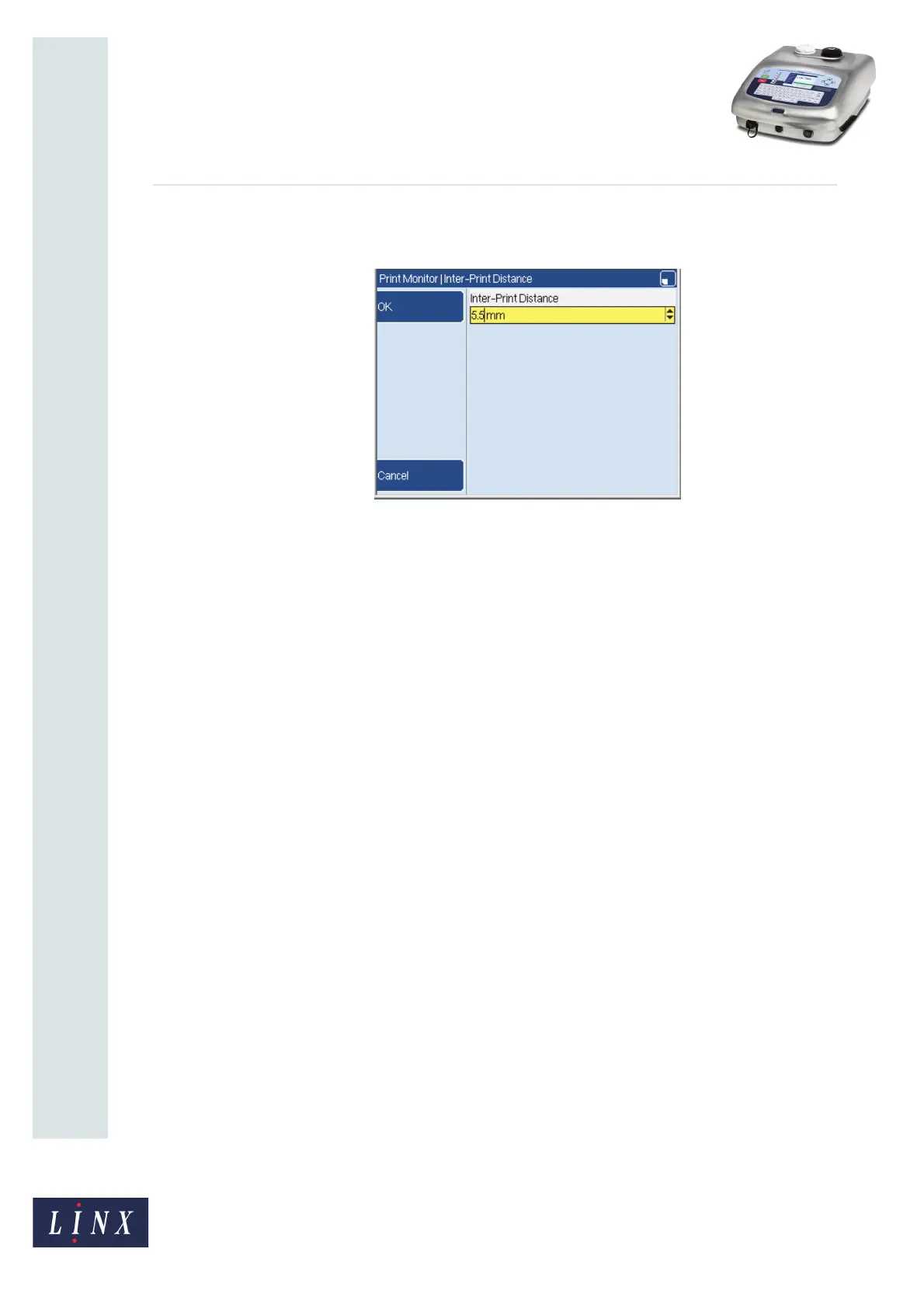

Figure 16. Inter-Print Distance page
You must enter an inter-print distance for the messages in the schedule. This value
is the distance between the start of one message and the start of the next message.
5 You must then select a trigger for the Production Schedule as shown in ‘Trigger
setup’ on page 15.
NOTE: If you use the High Level or Low Level Primary or Secondary trigger
options, the Multiprint option is ignored. The Production Schedule returns
to the default printing option.
6 For the example Production Schedule shown in Figure 15, Message1 is printed four
times, followed by one print of Message2 and two prints of Message3 from one
trigger.
