Page 10 of 11 FA69387–2 English
Jun 2013
11
How To Use the 7900 Food Grade
Printer
Linx 7900
6 Apply more solvent to the area shown with a circle in Figure 4 on page 8. Before the
solvent dries, use a foam swab to carefully remove any ink deposits from the
components identified in Figure 5 on page 9, as shown in Figure 6.

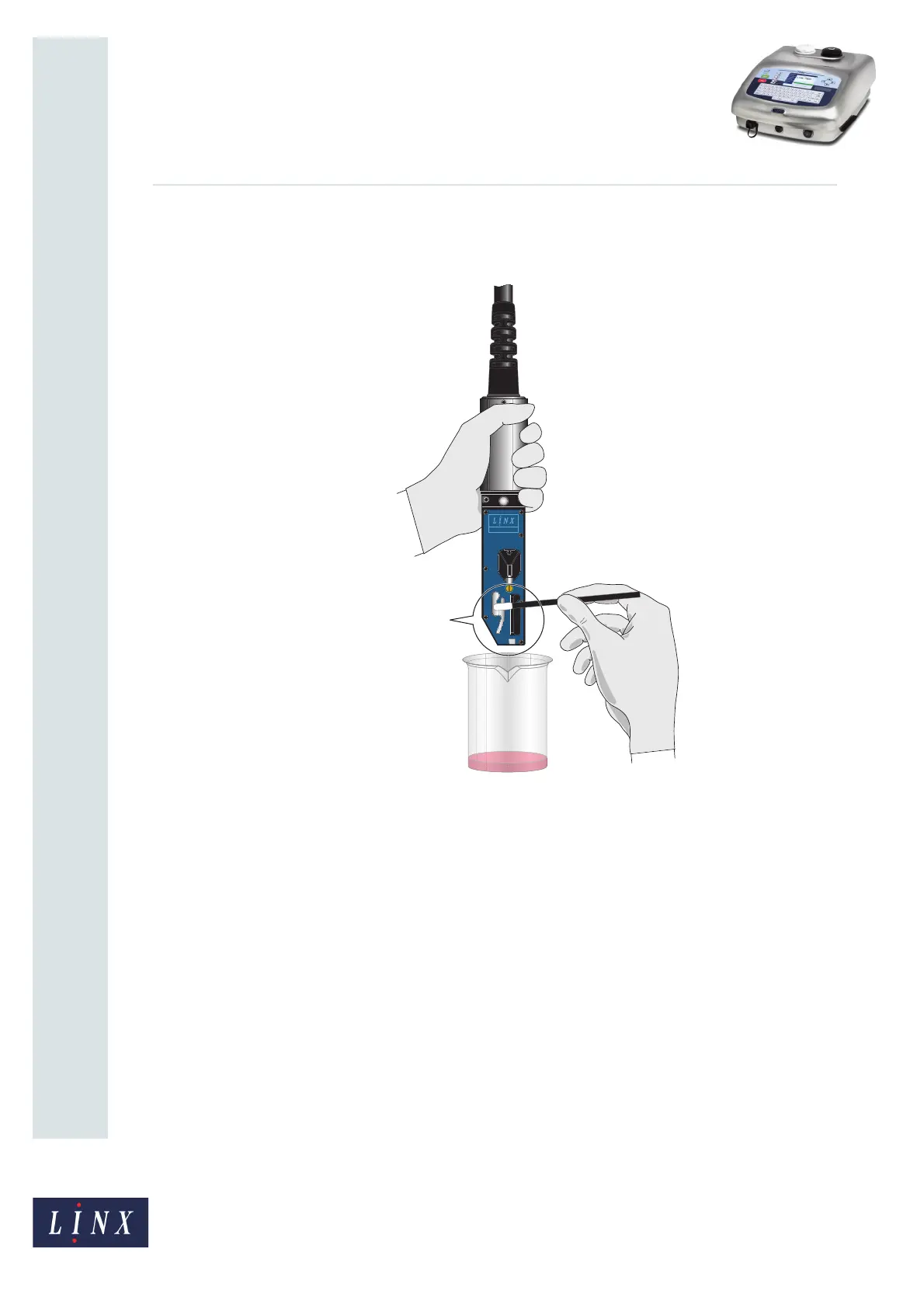

Figure 6. Clean the printhead components
Clean the following components:
• The reverse side of the EHT plate
• The EHT plate mounting pillars
• The DPP mounting pillars (on the side opposite the EHT plate)
Continue until any ink deposits that remain are removed.
7 Apply more solvent to the components. Before the solvent dries, use a foam swab to
carefully remove any ink deposits from the following components:
• The DPP
• The EHT plate
• The PCB (in the area shown with a circle in Figure 4 on page 8)
Continue until any ink deposits that remain are removed.
68780
THOROUGHLY
CLEAN
ALL THESE
COMPONENTS
MIDIMIDI
6262
EC EC
