How To Use QuickSwitch Plus
Product Selection
Linx 7900
This page displays all the remote fields in the selected message with their name and current
value. To enter data into any of these remote fields, select the required field, and then press
Edit to display the Edit Remote Field page.

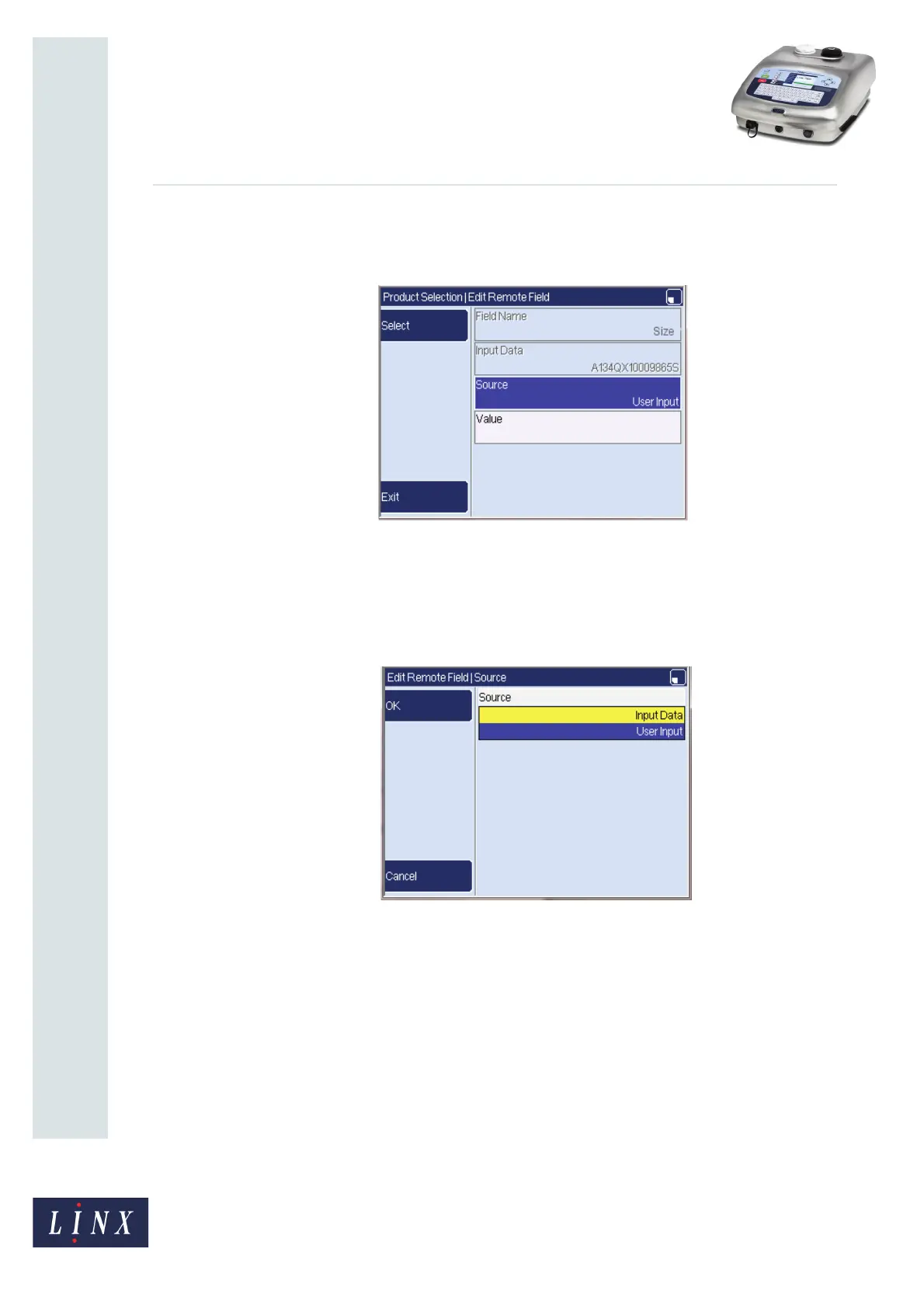

Figure 23. Edit Remote Field page
The following options are available:
• Source—This option allows you to select the data source for a remote field. Select either
User Input (for data that is entered manually), or Input Data (for data that is read from
a barcode).
Figure 24. Source page
