Screen Defender
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0003487

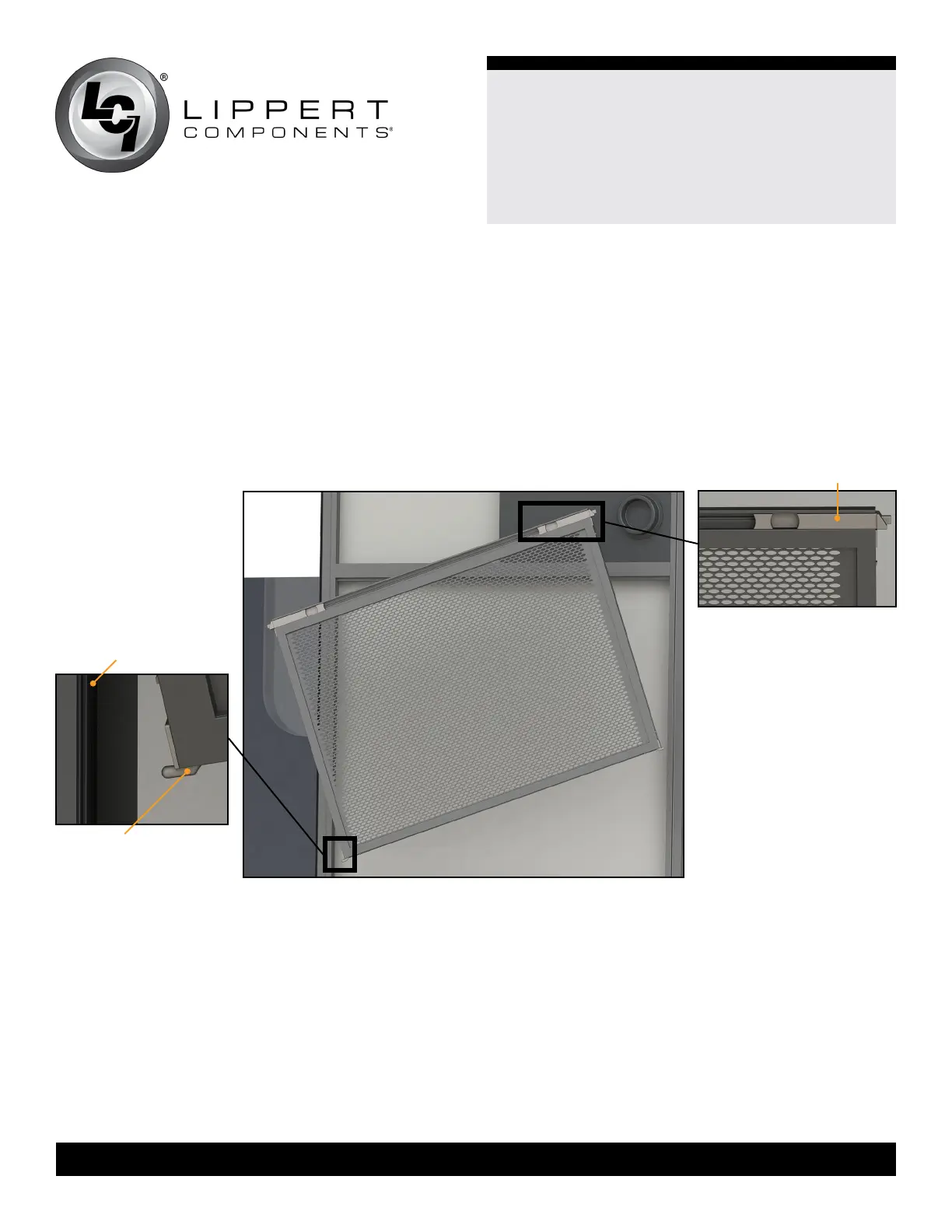

Fig.6
6. Tilt the Screen Defender and direct one side of the
Screen Defender toward the back window channel of the
screen door (Fig.6).
7. Insert the channel guide at the bottom of the Screen
Defender into the back channel of the screen door (Fig.6).
8. Insert the channel guide on the other end of the Screen
Defender into the back channel of the screen door.
9. Squeeze the two retractable latches at the top of the
Screen Defender.
10. Push the Screen Defender into the channel of the
screen door and then push down until it is seated on the
top of the extrusions.
NOTE: Some adjustments may be necessary to match
the height of the extrusions with the size of the gap. If
necessary, repeat steps 4 through 10 to create a tight fit.
channel guide
back channel
retractable latch
