Rev: 07.18.18
Page 5
CCD-0001654
B
A
C
B
A
C

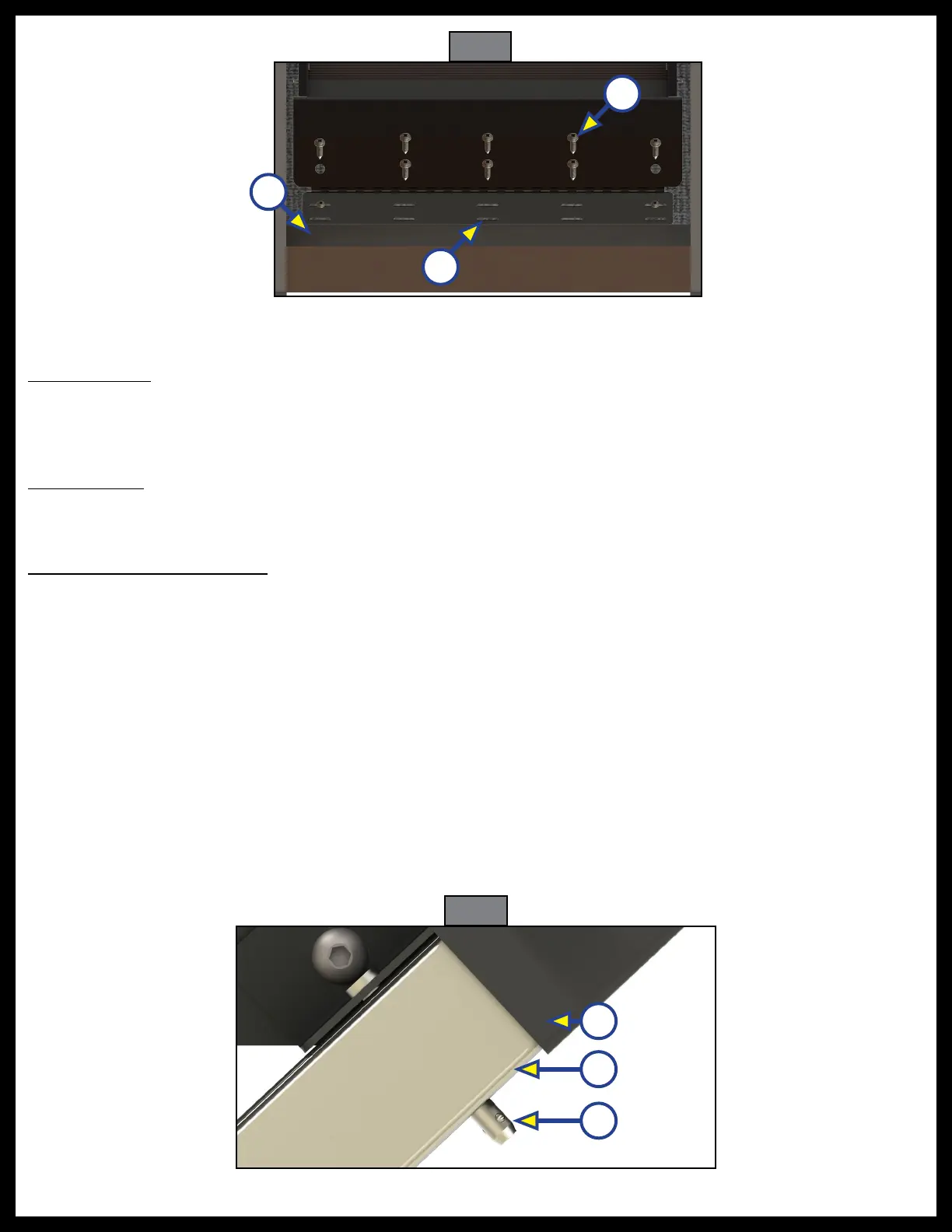

Fig. 4
Fig. 5
Operation
Release Steps
1. Disengage transport lock.
2. Firmly grasp and pull out the vertically stored SolidStep® and firmly rest it on the ground.
3. Adjust leg extensions as needed, see Leg Extension Adjustment section.
Secure Steps
1. Retract leg extensions, if desired, see Leg Extension Adjustment section.
2. Lift up SolidStep® to its stored position and make sure the transport lock has been engaged.
Leg Extension Adjustment
The leg extension is secured with a quick release clevis pin. Adjustments can be made to the leg extensions
in 1" increments by extending or retracting the inner leg for the optimal angle, and to adjust for the ground
surface angle.
1. To extend the inner leg (Fig. 5A):
A. Remove the quick release clevis pin (Fig. 5B) from the tube and the slot in the angle.
B. Extend the inner leg (Fig. 5A) to the ground and at an angle so the steps are parallel to the ground
and level.
C. Reinsert the quick release clevis pin (Fig. 5A) into the tube and slot closest to where the inner leg
and tube (Fig. 5C) meet.
2. To retract the inner leg (Fig. 5A):
A. Remove the quick release clevis pin (Fig. 5B) from the tube and slot.
B. Retract the inner leg.
C. Reinsert the quick release clevis pin in the tube and slot.
