page 7
gap

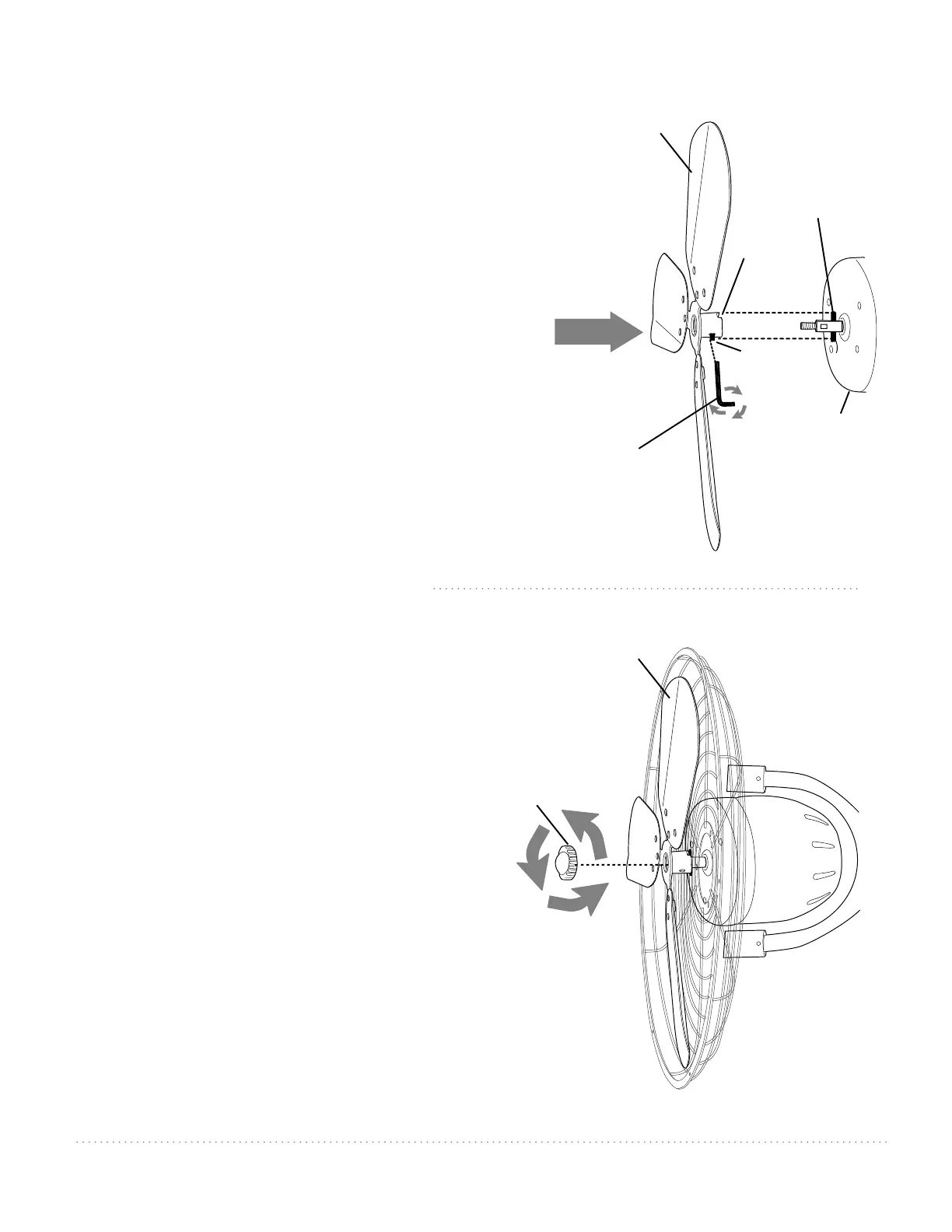

Place blade assembly over motor shaft, making
sure to align gap on the blade assembly with the
lock pin on the shaft. Using the Allen wrench,
located in one of the hardware packs, turn
preassembled set screw located on the blade
assembly clockwise to secure blade assembly to
fan motor.
blade
assembly
Re-attach blade assembly nut onto shaft in center of
blade assembly and turn counterclockwise to
secure.
blade
assembly
nut
blade
assembly
5. Installation of Fan. (cont.)
fan
motor
Allen wrench
lock
pin
shaft
set
screw
