LitterMaid LM680 - Rake Removal, Cleaning & Reinstallation; Cleaning the Rake; Reinstalling the Rake

11
Rake Removal, Cleaning & Reinstallation
Removing the rake:
Important: We recommend wearing rubber or latex gloves when handling
the soiled rake.
• Press the On/Off button and hold it for 3 seconds, the LED will start blinking
fast.
• Rake will move forward and stop at the dumping position.

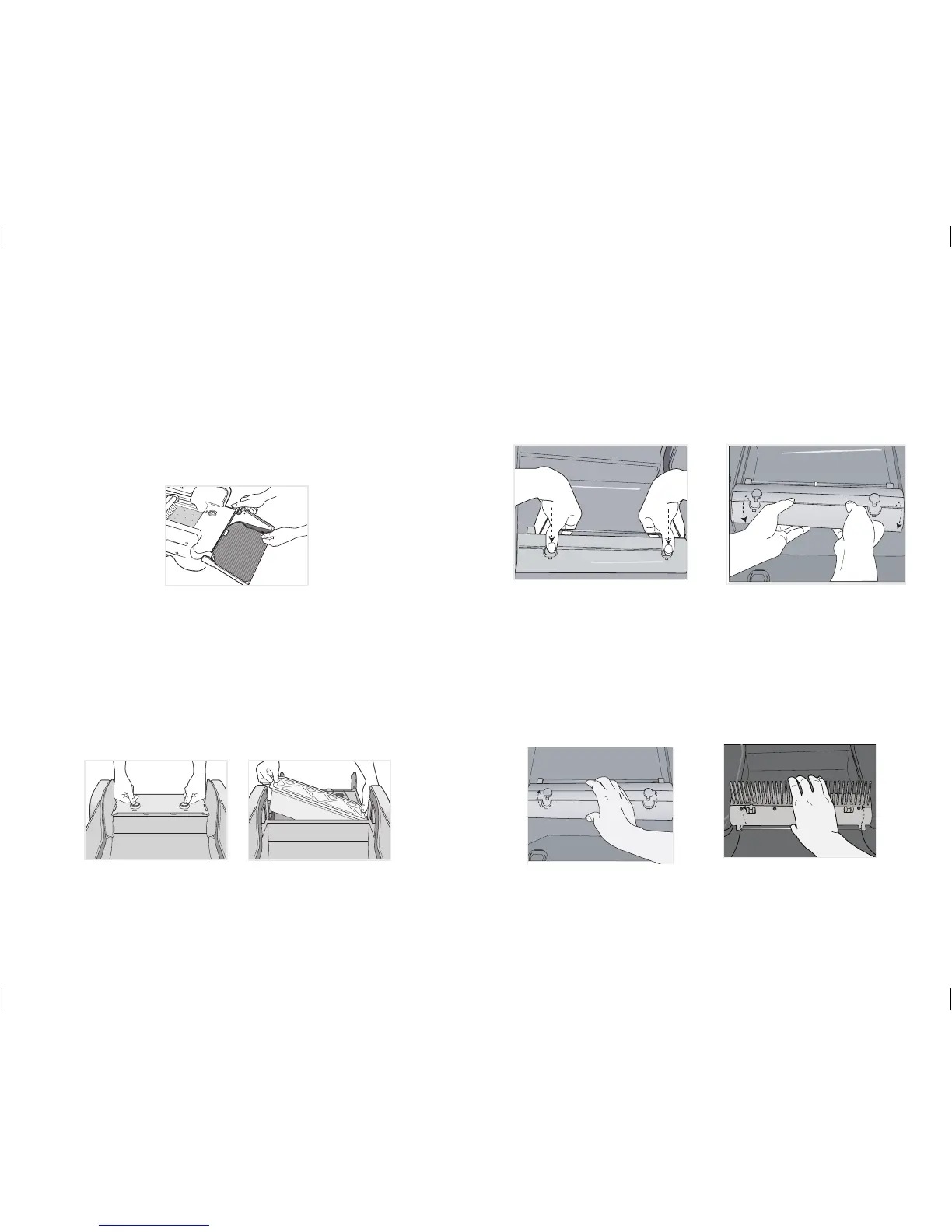

• With two thumbs, press the two buttons on the motor housing to release rake
(Fig. 12).
• Pull rake out (Fig. 13).
Important: Do not operate without the rake.
Cleaning rake:
• Use the LitterMaid
®
scoop and rake cleaner to quickly clean rake.
• Wash rake with a soft cloth using warm water and mild detergent.
Note: Do not use scouring pads or harsh and abrasive chemicals.
• Dry the rake.
Reinstalling rake:
• Hold rake with both hands and align the two indentations on the rake with the
two buttons on the motor housing (Fig. 14).
CA
UTION:
MO
TO
R ST
ARTS
A
U
TO
MA
TICA
LL
Y WITH
OUT
WA
RNIN
G
.
Fig. 12
CA
UTION:
M
O
T
O
R
S
T
A
RT
S
AU
T
O
M
A
T
I
C
AL
L
Y
W
IT
H
OU
T
WA
RN
I
NG
.
KE
E
P
H
A
N
D
S
,
CL
OT
HING
A
N
D CH
I
L
DREN
CL
EAR
O
F
UN
I
T
.
REA
D
IN
ST
R
UC
TION
M
A
NU
AL BE
FO
RE
USIN
G
.
Fig. 13
12
CA
U
T
ION:
MO
TO
R
ST
A
R
TS
AU
TO
MA
T
I
CALL
Y
WITH
OU
T
WA
RN
I
NG
.
KE
EP HANDS,
C
LO
T
H
ING
A
N
D
C
H
ILDREN
C
L
EA
R
O
F
U
NI
T.
R
E
A
D
I
NS
T
R
UC
T
I
ON
M
A
N
U
A
L
B
E
F
OR
E
US
I
N
G
.
Fig. 14
Fig. 15
• Use only premium clumping litter refill litter tray to just below the "Max Line".
• Plug in AC power adapter and replace batteries.
• Turn the On/Off button to "on" to reactivate automatic operation.
Paw-Cleaning Ramp
• Remove mat by gently pulling on fabric strip provided (Fig. 9).
• Mat is held in place by 5 tabs and will remove easily.
• Just remove and clean carpet by using a vacuum cleaner.
• To return it to its original position, reinsert carpet under tabs. It is not necessary
to remove plastic ramp to clean mat.
Note: Should small stains occur, moisten a sponge with a mild detergent and
cold water; wipe to clean. Do not use soaps or chemical cleaners as they may be
harmful to your cat.
Caution: Do not place carpet in washer or dryer. Do not vacuum carpet
when it is wet.
Removing Disposable Waste Receptacle
We recommend avoiding contact with waste material. Wear rubber or latex
gloves when handling used disposable waste receptacle.
• Depress pushtabs in waste receptacle compartment cover (Fig. 10). (Detach
disposable waste receptacle lid from waste receptacle compartment cover.)
• Lift compartment cover, exposing closed disposable waste receptacle
assembly.
• Press in on four corners of lid to secure lid to the waste receptacle, pull the
disposable waste receptacle edge free from the tabs holding it in place, lift out
and dispose (Fig. 11).
Disposable waste receptacles are available in packages of 12 or 18 and may
be purchased through your local retailer, by visiting our website at www.littermaid.
com, or by calling 1-800-738-0245. We will be happy to assist you in any way
we can.
Fig. 9
Fig. 10
Fig. 11
