Page 18
1
3
4
6
5
7
8
9
20
22
6
5
14
13
15
18
19
17
18
17
18
11
12
10
2
23

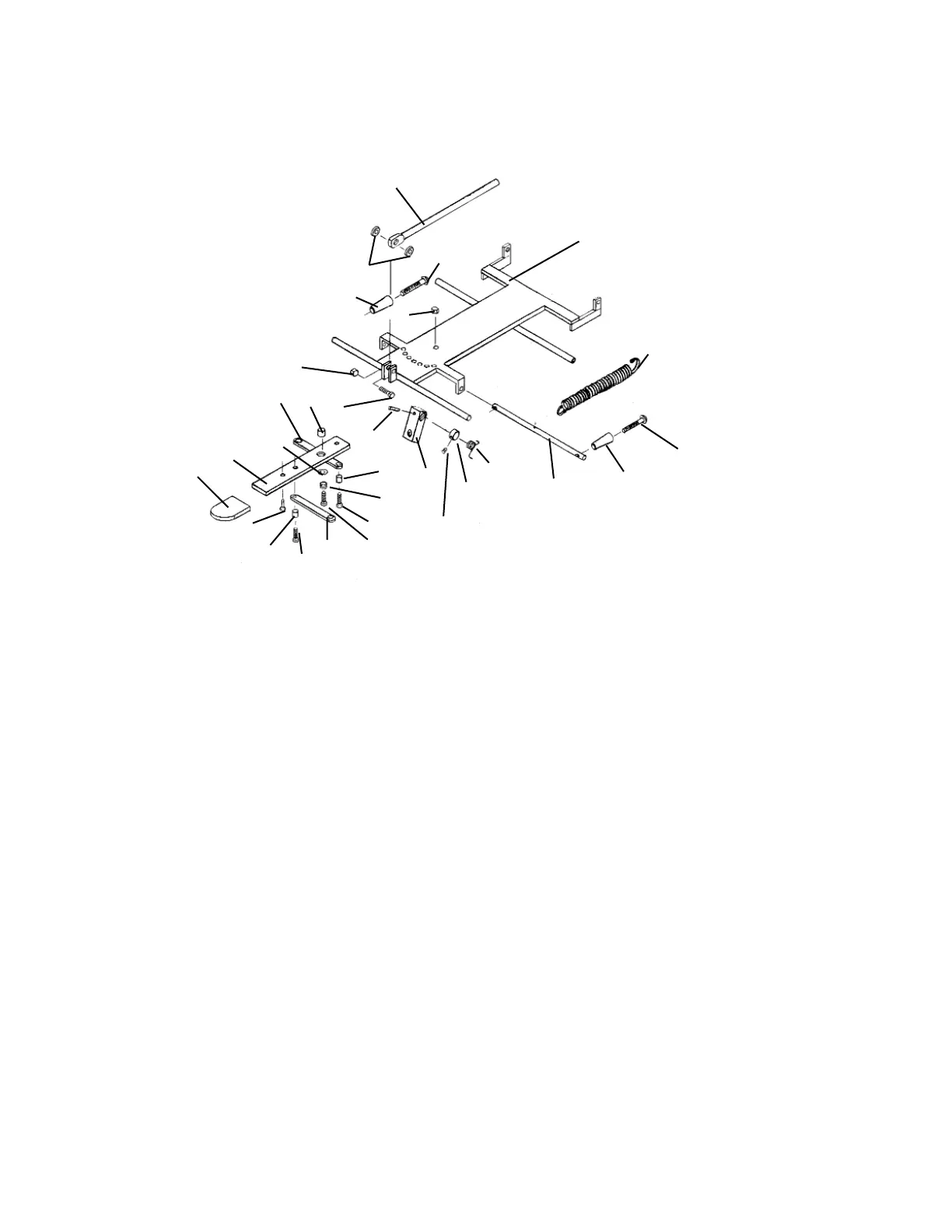

DELUXE HEAD FRAME ASS’Y
ITEM PART N0. DESCRIPTION QTY.
1 56051 FASTENER PLATE ASS’Y 1
2 57221 ADJUSTMENT ARM 1
3 55929 CENTER BAR 1
4 21616 PLASTIC FLAT WASHER, ¼ ID X ¾ OD 2
5 24020 HANDLE 2
6 22050 RD. HD. MACHINE SCREW, ¼-20 UNC X 2 ½ 2
7 21450 HEX. NUT, #10-24 UNC 1
8 21020 HEX. NUT, ¼-28 UNF 1
9 20115 HEX. HD. BOLT, ¼-28 UNF X 1.00 1
10 54107 ADJUSTMENT BLOCK 1
11 22670 ROLL PIN, 1/8RD. X ¾ 1
12 30870 TORSION SPRING 1
13 24236 PLASTIC CAP 1
14 57205 ADJUSTMENT ROD, 7/16 RD. X 9 5/8 1
15 22300 RD. HD. MACHINE SCREW, #8-32 UNC X ¼ 1
16 57175 LINKAGE BAR, 1/8 X ½ X 3 9/16 2
17 21995 PAN HD. MACHINE SCREW, #10-24 UNC X ½ 3
18 22860 BUSHING, 3/16ID X 1/4 OD X .160 3
19 30722 COMPRESSION SPRING, .235 ID X .5/16 OD X ½ 1
20 22912 COLLAR, 3/8 ID 1
21 22110 SET SCREW, ¼-20 UNC X ¼ 1
22 30785 TENSION SPRING, ½ ID X 5/8 OD X 7 1/8 (HYLO ONLY) 1
23 21610 WASHER, .26 ID X ½ OD 1
24 22003 PAN HD. MACHINE SCREW, #10-24 UNC X 3/4 1
21
16
16
24
To Next Page
