The following sections provide explanations on the operation of your Lloyd table. All references to right and left, will be in relation-
ship to your view, as you face table from the foot end. All references to the front will refer to the head end of the table. Those to the
rear will refer to the foot end.
Head Cushion
The head cushion is designed to provide a multitude of positions & operations though our standard Deluxe Headpiece and optional
Total Dimension Flexion
TM
Headpieces.

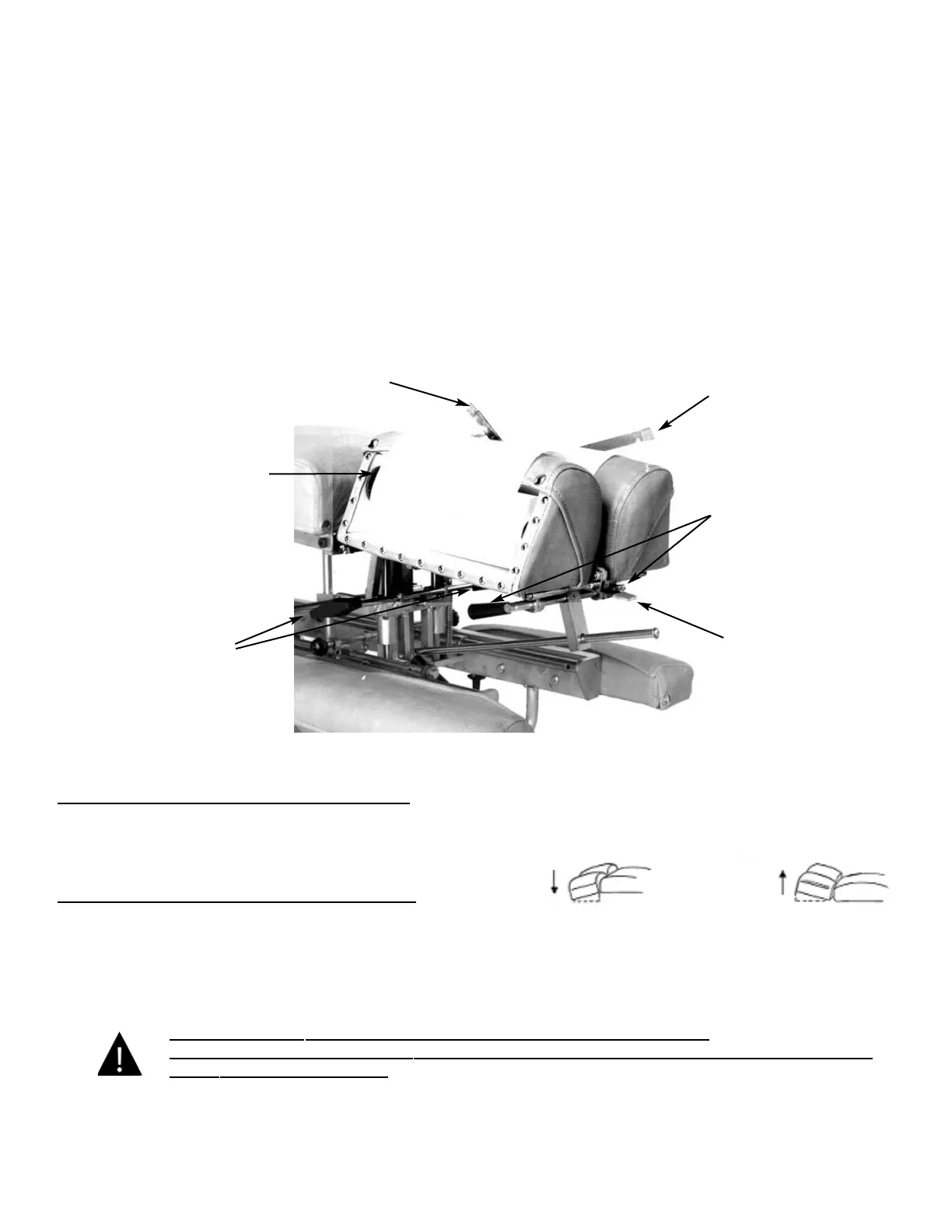

Standard Deluxe Headpiece
#5 Center Bar
#4 Paper Hanger
#2 Elevation Knob
#3 Face Opening
Lever
#1 Tilting Lock Handle
#6 Paper Cutting Bar
To Raise the tilting feature on the Deluxe Headpiece:
1. Lift on the bottom front edges of the cushion
2. Release at the desired height, the cushion will
automatically lock into position.
To Lower the tilting feature on the Deluxe Headpiece:
1. Support the front corner edge of the cushion.
2. Lift the Locking Handle (No. 1) to release.
3. Gently lower the cushion to the desired height.
4. Release the lock handle first and then the cushion to lock.
WARNING: TO AVOID INJURIES WHEN RAISING OR LOWERING HEAD
CUSHIONS, BE SURE TO HAVE A PROPER HOLD ON THE CUSHION BEFORE RELEASING THE
ELEVATING HANDLE (NO. 2).
