3. Go to the Measure page by clicking on the Measure icon.
4. In the tool list, click on the Duplicate button ( ) of the tool you want to duplicate.
A copy of the tool appears below the original.

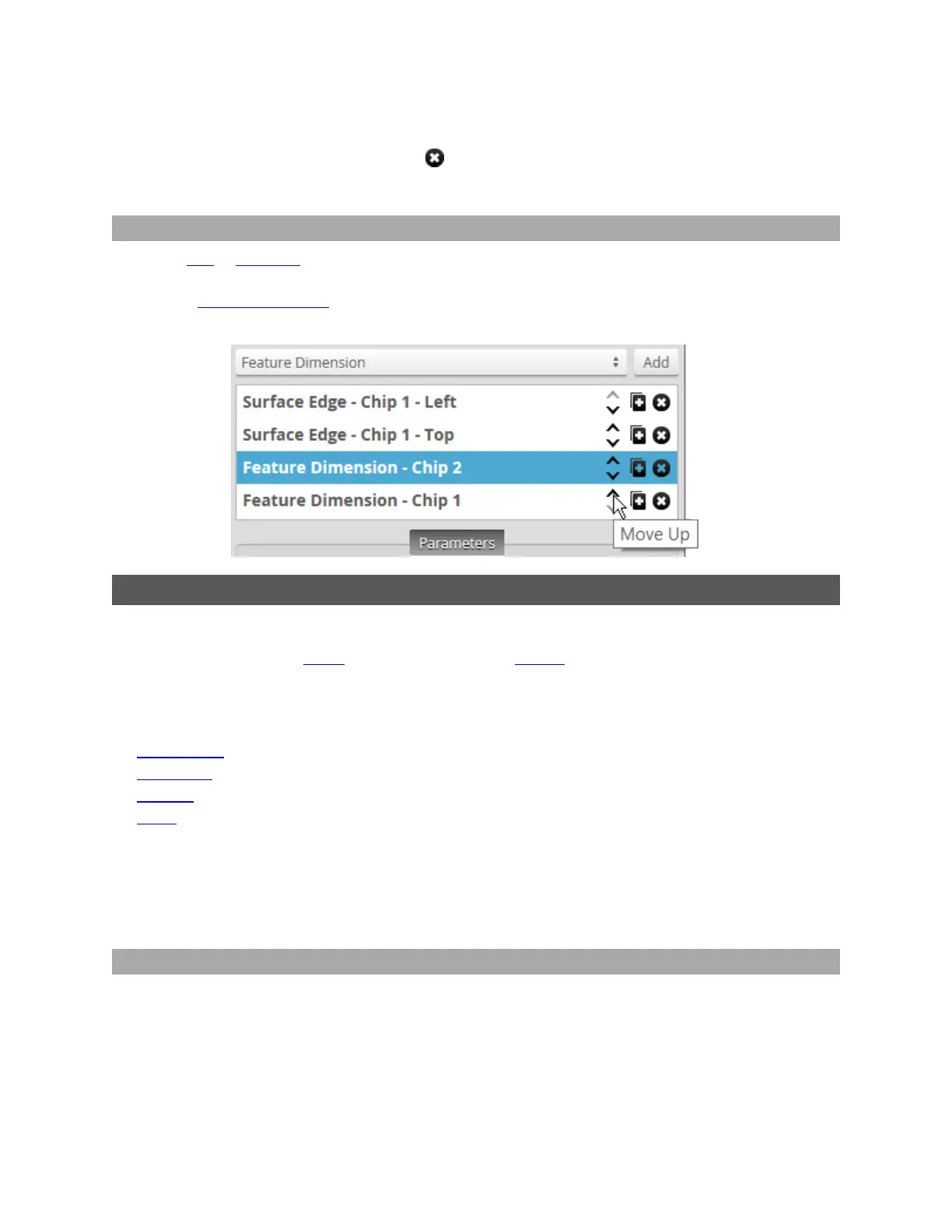

Reordering Tools
When you add or duplicate a tool, the tool is added to the bottom of the list in the Tools panel. You can
reorder tools in the web interface to organize tools more logically. For example, you could group tools
that output geometric features with the tools that use them. Or you could group tools you use as
anchors with the tools that use those anchors.
Profile Measurement
This section describes the profile measurement tools available in Gocator sensors.
When Gocator is in Surface mode and you have defined a section, a Stream option displays in Profile
tools.
Thefollowing tools are available when UniformSpacing is disabled:
l Bridge Value
l Dimension
l Position
l Script
For more information on the Uniform Spacing setting and resampled data, see Spacing (Data
Resampling) on page 59.
Profile measurement tools can be used on sections. For more information on sections, see Sections on
page 174.
Area
The Area tool determines the cross-sectional area within a region. Gocator compares the measurement
value with the values in Min and Max to yield a decision. For more information on decisions, see
Decisions on page 191.
All tools can use the measurements of other tools as anchors, to improve reliability and repeatability; for
more information, see Measurement Anchoring on page 194.
