OVERVIEW OF THE CONTROLS

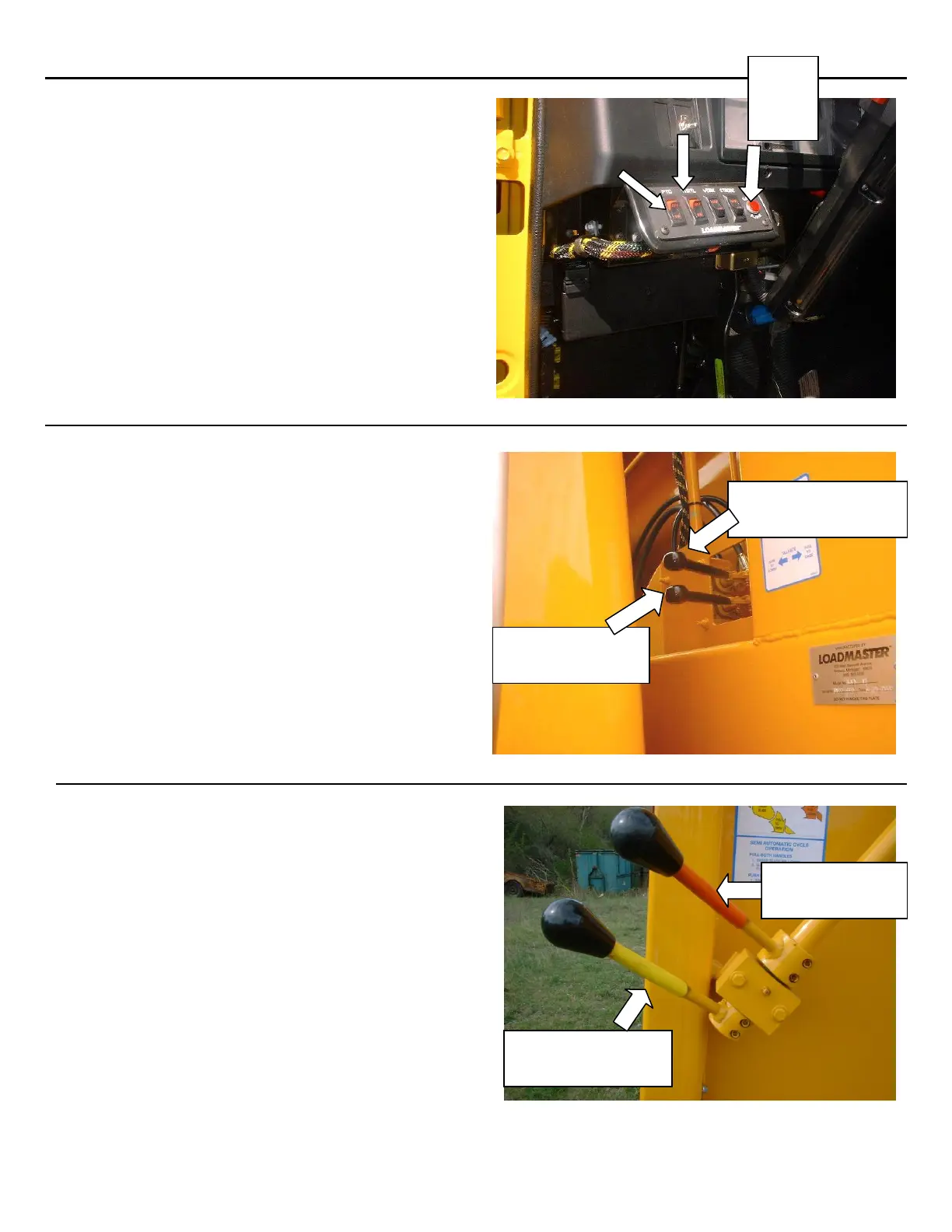

ROCKER SWITCH PANEL
This panel is located inside the cab and just to the
left of the steering wheel.
This ROCKER SWITCH PANEL groups together four
switches and one pilot light. They are:
PTO on/off switch
THRTL on/off switch
WORK light switch (optional)
STROBE light switch (optional)
GATE AJAR warning light
“BODY-MOUNTED VALVE” KNOBBED HANDLEVERS
These are located at the body’s left front corner,
just behind back of cab.
The lower knobbed handlever controls the tailgate
lift. The upper handlever controls the ejector blade.
These handlevers are spring-centered to their
neutral positions. The handlever must be “held” to
a shifted position by the operator.
“TALIGATE-MOUNTED VALVE” HANDLEVERS
These are located on the rearward, right-side of
tailgate shell.
The lower, yellow colored handlever controls the
sweep
blade. The sweep blade is the compaction
blade that “rotates” at the blades pivot.
The orange colored handlever controls the
slide
blade. The slide blade is the compaction blade that
slides in the “track” channel.
Any knobbed handlevers for
optional
attachments
will also be located near the above blade controls,
but they will
not
be colored yellow or orange. The
“2-10 reever” and the “kickbar” are examples of
optional equipment.
