LoadSurfer WH20L-65 - Page 7

6

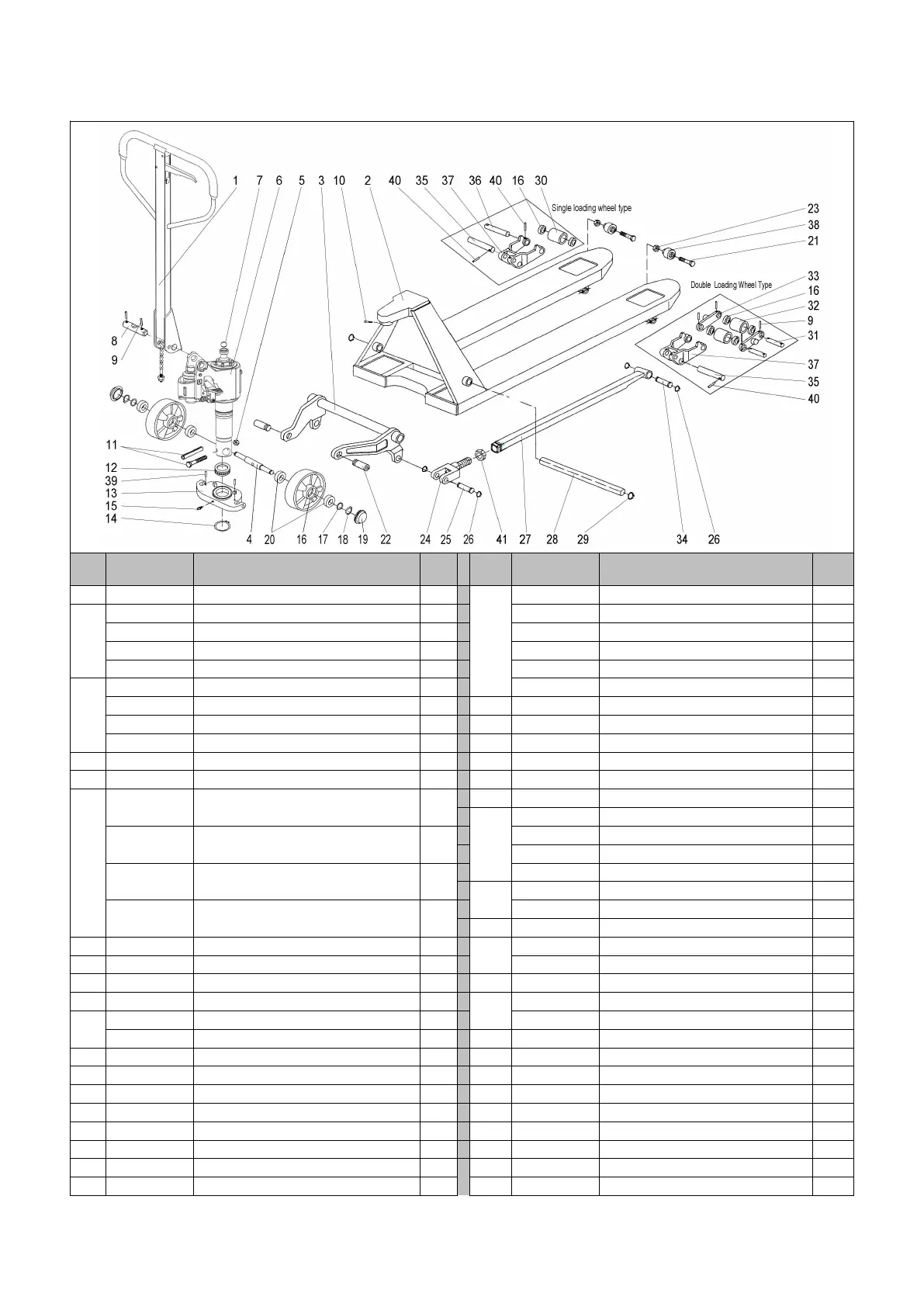

General parts for PWH25-II/PWH30-II/PWH35-II
No
Part No.
Description
Qty
No
Part No.
Description
Qty
1
17010101
Handle assembly
1
20
17010116
PU Steering wheel Ø180*50
2
2
17010102
Chasis (540*1150) (2.5T/3T)
1
17010117
Nylon Steering wheel Ø180*50
2
17010102-1
Chasis (685*1220) (2.5T/3T)
1
17010116-1
PU Steering wheel Ø200*50
2
17010102-2
Chasis (540*1150) (3.5T)
1
17010117-1
Nylon Steering wheel Ø200*50
2
17010102-3
Chasis (685*1220) (3.5T)
1
17010116-2
Rubber Steering wheel Ø180*50
2
3
17010103
Rocker arm 550 (2.5T/3T)
1
17010117-2
Rubber Steering wheel Ø200*50
2
17010104
Rocker arm 685 (2.5T/3T)
1
21
17010123
Hex bolt M6×50
2
17010103-1
Rocker arm 550 for (3.5T)
1
22
17010124
Axle 16×40
12
17010104-1
Rocker arm 685 for (3.5T)
1
23
17010143
Locknut M6
2
4
17010105
Steering wheel shaft 25*170
1
24
17010126
Rod end
2
5
17010106
Locknut M8(Matching with item 11)
1
25
17010127
Axle 16×49
2
6
17010107
BF pump assembly (2.5T/3T)
with Ø180 steering wheel
1
26
17010128
Snap ring 16
6
27
17010129
Push rod 1150 (2.5T/3T)
2
17010107-1
BF pump assembly (2.5T/3T)
with Ø200 steering wheel
1
17010129-1
Push rod 1220 (2.5T/3T)
2
17010129-2
Push rod 1150 (3.5T)
2
17010107-2
BF pump assembly (3.5T)
with Ø180 steering wheel
1
17010129-3
Push rod 1220 (3.5T)
2
28
17010130
Rocker shaft 550
1
17010107-3
BF pump assembly (3.5T)
with Ø200 steering wheel
1
17010130-1
Rocker shaft 685
1
29
17010131
Snap ring 25
2
7
17010108
Steel ball Φ19
1
30
17010132
PU single load wheel Ø80*93
2
8
17010109
Shaft for handle 20*103
1
17010133
Nylon single load wheel Ø80*93
2
9
17010110
Spring pin 5×35
1/9
31
17010134
Axle 20×94
4
10
17010111
Hex screw M6×12
1
32
17010135
PU double load wheel Ø80*70
4
11
17010112
Bolt M8×55(Matching with item 5)
1
17010136
Nylon Double load wheel Ø80*70
4
17010112-1
Spring pin 8*50 (New design)
1
33
17010137
Plate
4
12
17010113
Bearing 51111
1
34
17010138
Shaft 16×92
2
13
17010114
Supporting seat
1
35
17010139
Shaft 20×154
2
14
17010115
Snap ring 55
1
36
17010140
Shaft 20×122
2
15
17010120
Grease nipple
1
37
17010141
Wheel fork
2
16
17010118
Bearing 6204-2RS
8/12
38
17010144
Wheel 50×36
2
17
17010119
Gasket
2
39
17010125
Spring pin 5×30
2
18
17010121
Snap ring 20
2
40
17010145
Spring pin 5×32
2/4
19
17010122
Dust cap
2
41
17010142
Nut M20*9
2
