LoadSurfer WH20L-65 - Page 8

7

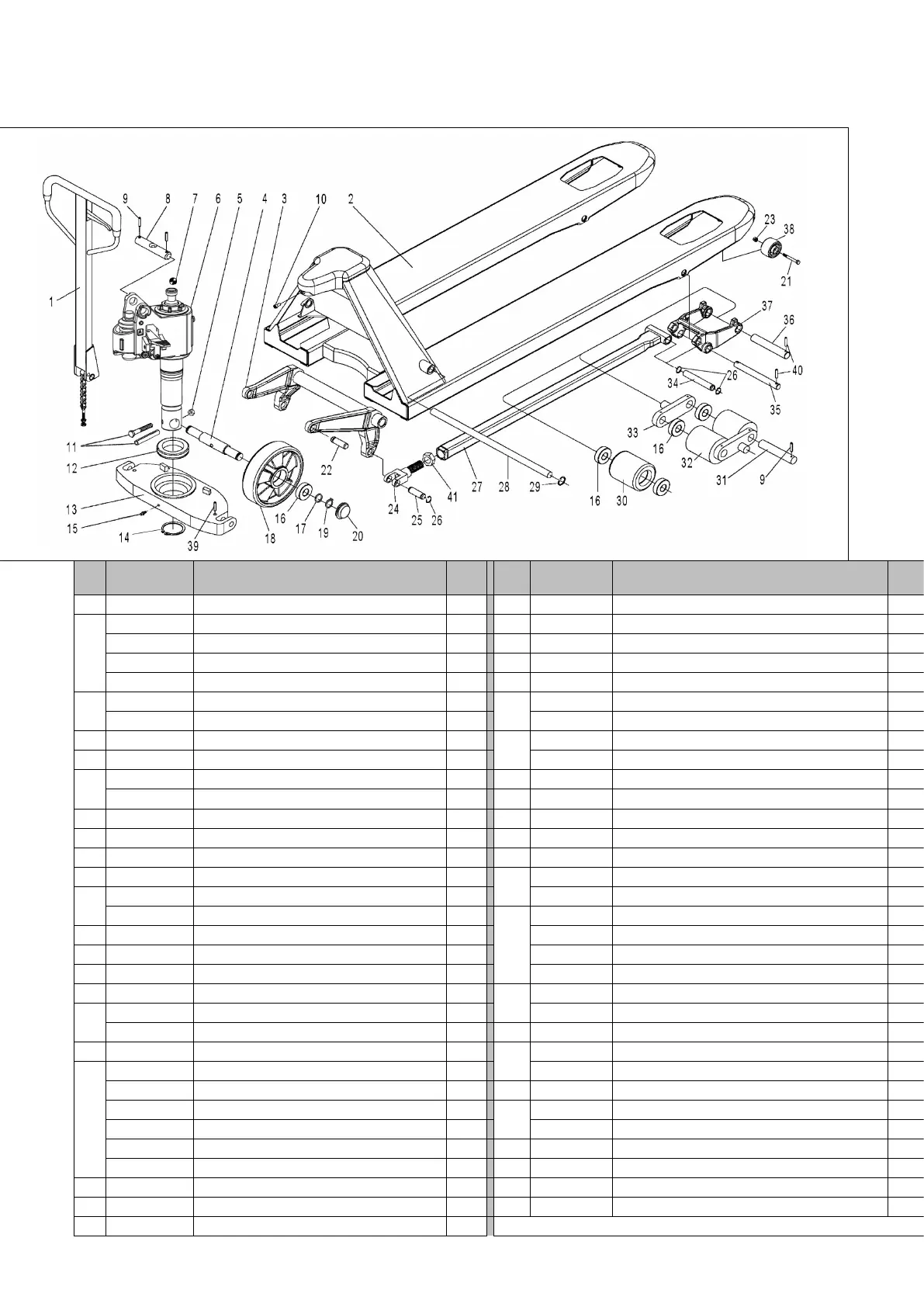

General parts for WH20L-65/WH25L-65(with 65mm profile)
& PWH25-II-75
(
with 75mm profile
)
No
New P/N
Description
QTY
No
New P/N
Description
QTY
1
17010101
Handle assembly
1
22
17010124
Axle 16×40
12
2
17010102
Chasis (540*1150) (75 low profile)
1
23
17010143
Locknut M6
2
17010102-1
Chasis (685*1220) (75 low profile)
1
24
17010126
Rod end
2
17010102-2
Chasis (540*1150) (65 low profile)
1
25
17010127
Axle 16×49
2
17010102-3
Chasis (685*1220) (65 low profile)
1
26
17010128
Snap ring 16
4
3
17010103
Rocker arm 550
1
27
17010129
Push rod 1150
2
17010104
Rocker arm 685
1
17010129-1
Push rod 1220
2
4
17010105
Steering wheel shaft 25*170
1
28
17010130
Rocker shaft 550
1
5
17010106
Locknut M8(Matching with item 11)
1
17010130-1
Rocker shaft 685
1
6
17010107-1
BFi pump assembly for (75 low profile)
1
29
17010131
Snap ring 25
2
17010107-4
BFi pump assembly for (65 low profile)
1
30
17010132-2
PU single load wheel Ø74*93 (75 low profile)
2
7
17010108
Steel ball Φ19
1
30
17010133-6
Nylon Single load wheel Ø74*93 (75 low profile)
2
8
17010109
Shaft for handle 20*103
1
30
17990008-4
PU single load wheel Ø60*93 (65 low profile)
2
9
17010110
Spring pin 5×35
12/16
30
17990008-5
Nylon Single load wheel Ø60*93 (65 low profile)
2
10
17010111
Hex screw M6×12
1
31
17010134
Axle 20×94 (75 low profile)
4
11
17010112
Bolt M8×55(Matching with item 5)
1
17010134-1
Axle 17×94 (65 low profile)
4
17010112-1
Spring pin 8*50 (New design)
1
32
17990008
PU Double load wheel Ø74*70 (75 low profile)
4
12
17010113
Bearing 51111
1
17990008-2
Nylon Double load wheel Ø74*70 (75 low profile)
4
13
17010114
Supporting seat
1
17990008-6
PU Double load wheel Ø60*70 (65 low profile)
4
14
17010115
Snap ring 55
1
17990008-7
Nylon Double load wheel Ø60*70 (65 low profile)
4
15
17010120
Grease nipple
1
33
17010137
Plate (75 low profile)
4
16
17010118
Bearing 6204-2RS (75 low profile)
8/12
17010137-1
Plate small (65 low profile)
4
17010118-1
Bearing 6203-2RS (65 low profile)
8/12
34
17010138
Shaft 16×92
2
17
17010119
Gasket
2
35
17010139-1
Shaft 16*152 (75 low profile)
2
18
17010116
PU Steering wheel Ø180 (75 low profile)
2
17010139-1
Shaft 16*154 (65 low profile)
2
17010117
Nylon Steering wheel Ø180 (75 low profile)
2
36
17010140
Shaft 20×122
2
17010116-2
Rubber Steering wheel Ø180 (75 low profile)
2
37
17010141
Wheel fork (75 low profile)
2
17020112
PU Steering wheel Ø160 (65 low profile)
2
17010141-1
Wheel fork (65 low profile)
2
17020113
Nylon Steering wheel Ø160 (65 low profile)
2
38
17010144
Wheel 50×36
2
17020113-2
Rubber Steering wheel Ø160 (65 low profile)
2
39
17010125
Spring pin 5×30
2
19
17010121
Snap ring 20
2
40
17010145
Spring pin 5×32
2/4
20
17010122
Dust cap
2
41
17010142
Nut M20*9
2
21
17010123
Hex bolt M6×50
2
