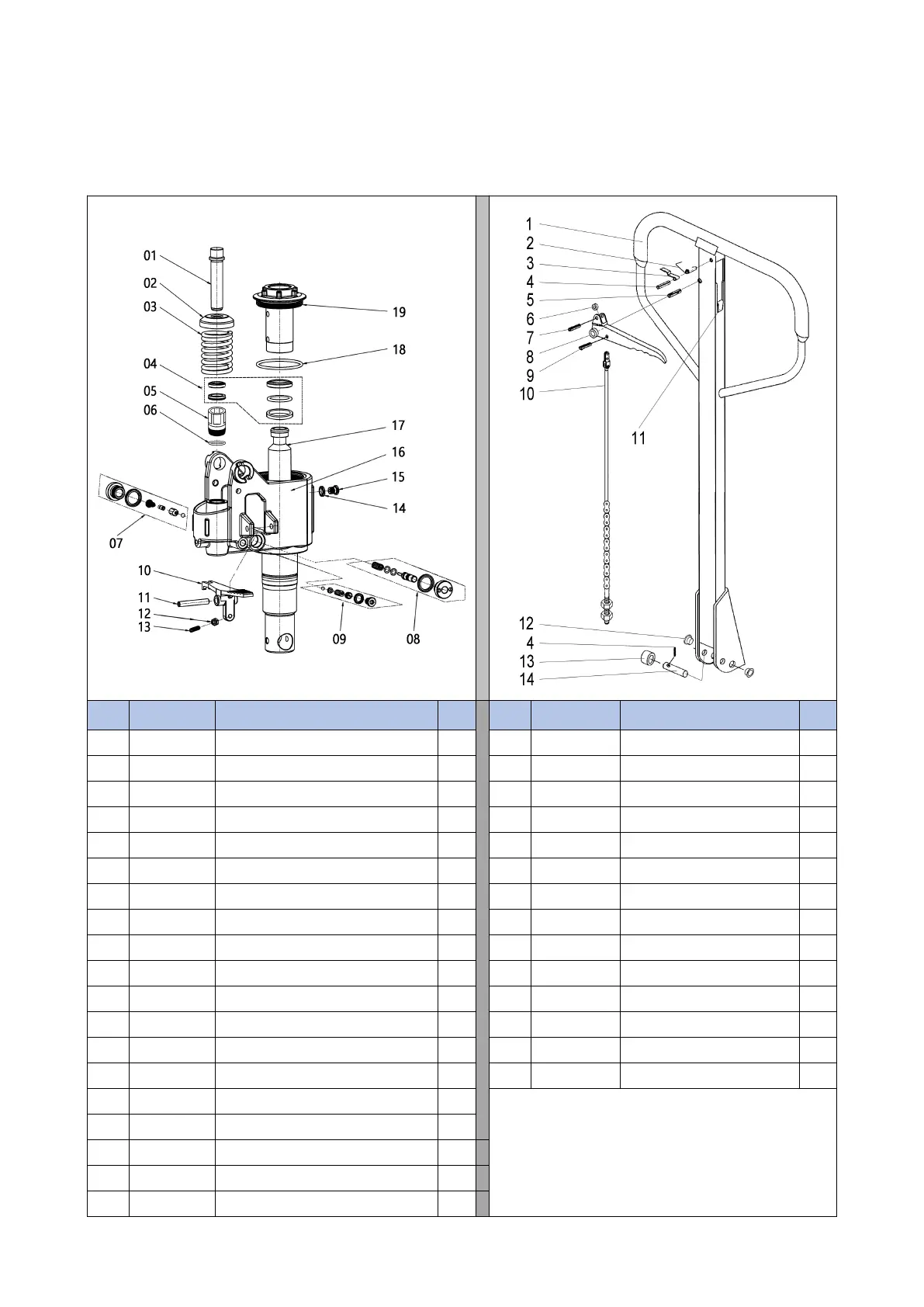

Pump & handle parts details
PWH25-II PWH30-II
No.
Part No.
Description
Qty
Item
Parts No.
Parts details
Qty
01
17010201
Small pump core
1
1
17010316
Draw-bar
1
02
17010202
Cover of spring
1
2
17010327
Torsional Spring
1
03
17010205
Big spring
1
3
17010310
Blade Spring
1
04
17010332
Pump seals kit Ø31.5 for 2.5T/3T
1
4
17010311
Spring Pin 4x30
2
05
17010360
Small cylinder
1
5
17010314
Spring Pin 6x30
1
06
17010361
Copper gasket
1
6
17010312
Roller
1
07
17010328
Check valve
1
7
17010313
Spring Pin 4x17
1
08
17010330
Relief valve
1
8
17010315
Control Handle
1
09
17010329
Safety valve
1
9
17010333
Spring Pin 4x13
1
10
17010302
Lever plate
1
10
17010335
Release rod & chain assy.
1
11
17010303
Spring pin 8×50
1
11
17010331
Rubber pad
1
12
17010227
Nut
1
12
17010325
Bushing 20*15
2
13
17010301
Bolt
1
13
17010318
Pressure Roller 26*14*22
1
14
17010219
Seal washer
1
14
17010317
Roller Axle 12*60
1
15
17010220
Bolt
1
16
17010213
Pump body
1
17
17010309
Piston rod Ø31.5 for 2.5T/3T
1
18
17010305
O-ring 69×2.65
1
19
17010306
Slide bushing Ø31.5 for 2.5T/3T
1
