LKF Pittsburgh 16 Gauge

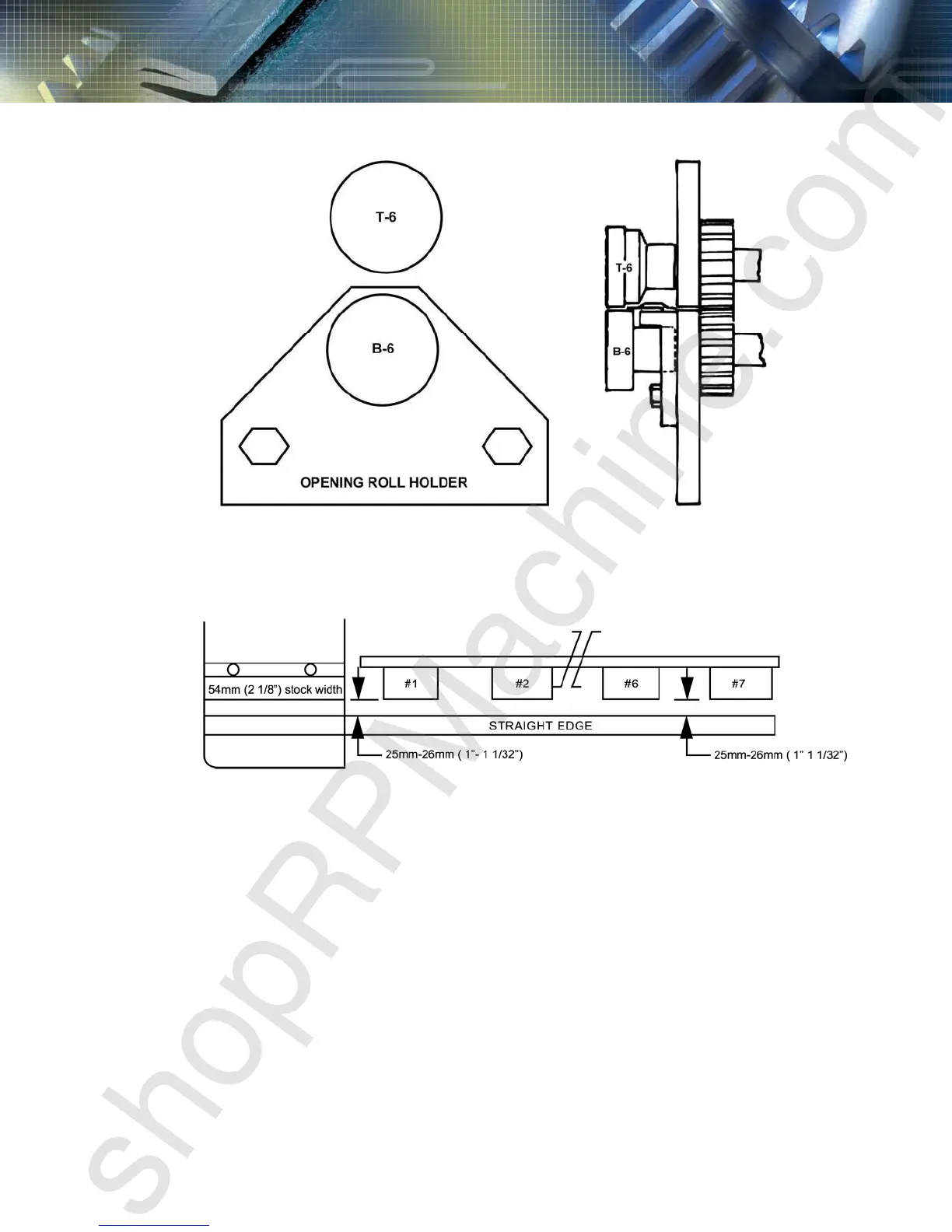

SKETCH No. 4 SKETCH No. 4A
F. Drive Cleat: (20-26) Gauge Material) Cleat width, 1-1/8”, 2-1/8” stock width.
Gauge setting (See Sketch No. 5)…………….. 1” to 1-/32”
Note: The top =3 roll is not fastened by bolt and washer but allowed to float.
SKETCH No. 5
G. Combination 3-in-1 Rolls: (22-28 Gauge) Uses approximately 1-3/4” on “T” Section 1-1/8”
on standing seam ½” on right angle flange.
Three Step Entrance Gauge
Top Step “T” Section Gauge setting………..2-1/16”
Middle Step Standing Seam
Gauge setting………………………………….1-1/2”
Bottom Step Right Angle Flange
Gauge setting………………………………….15/16”
