3.2 Before placing the exterior assembly
on the door, make sure the torque blade is
in vertical position and the deadbolt is
extended.
Vertical
When installing the exterior assembly,
make sure the deadbolt is fully
extended and the slit hole is vertically
positioned on the bottom, the torque
blade should be inserted in a vertical
position.
M
B
Peel paper off the
Adhesive tape
3.3 Place the exterior assembly on the door
by inserting the torque blade on a vertical
position to the deadbolt slit hole and guide
the cable under the deadbolt. Secure with
the adhesive strips.
EXTERIOR VIEW
(1)

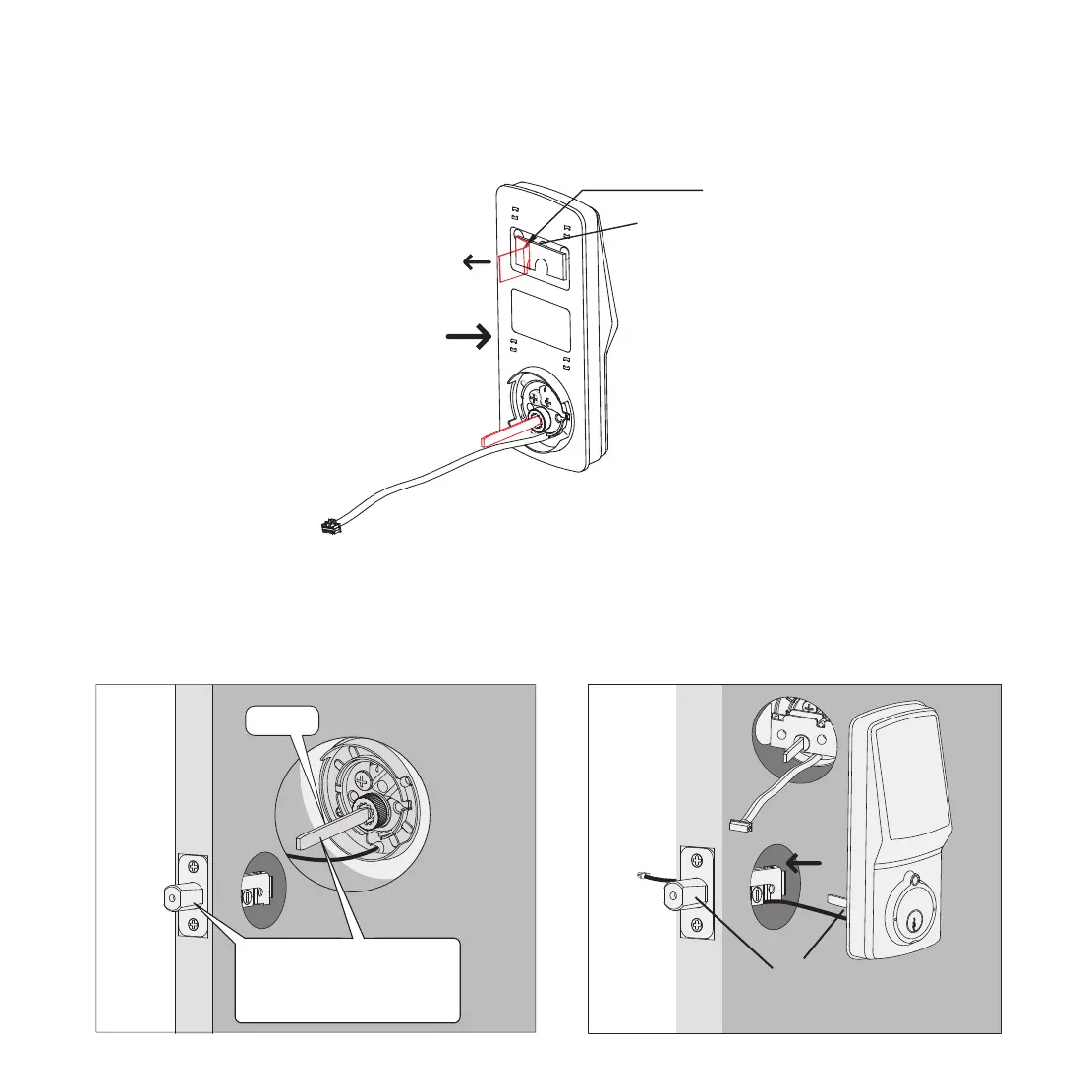

3.1 To secure Exterior Assembly of lock, peel the cover off the adhesive strips
STEP 3. INSTALLING THE EXTERIOR ASSEMBLY
