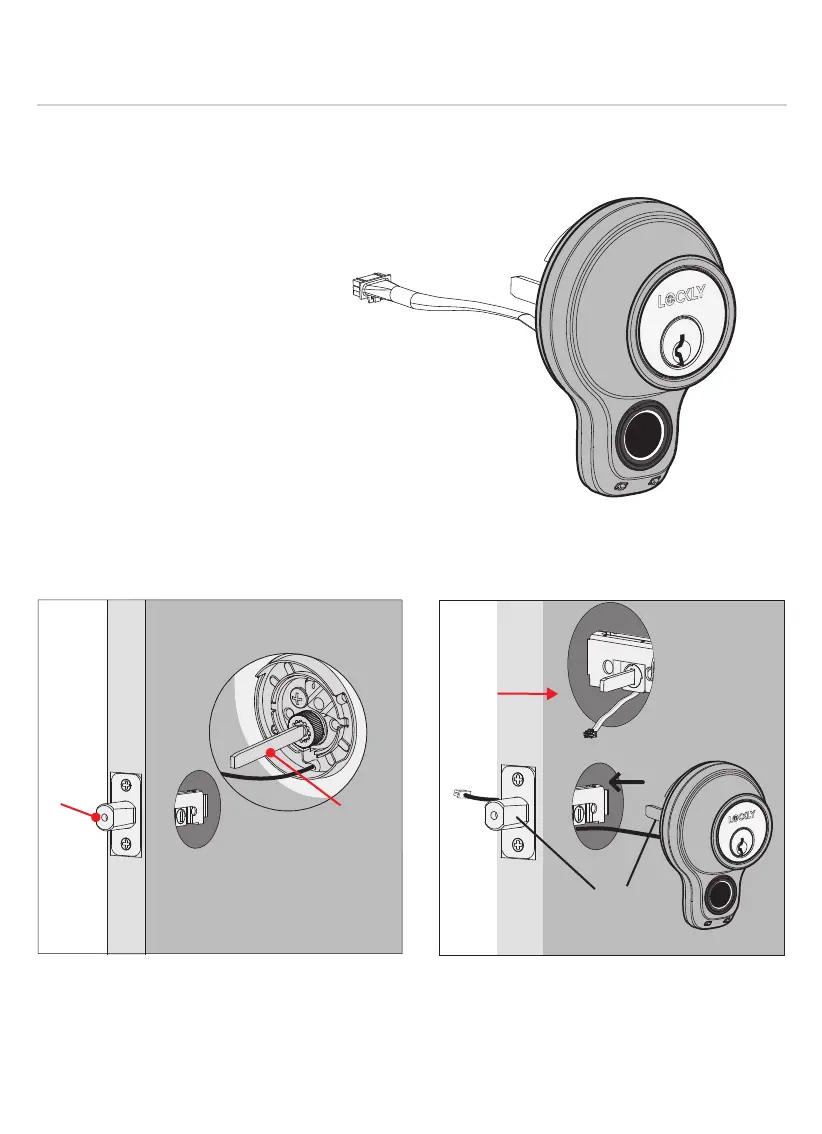

INSTALLING EXTERIOR ASSEMBLY (B)
Step 2
Before mounting exterior lock
assembly (B) make sure torque
blade is in the vertical position while
deadbolt is extended [1].
Place assembly and torque blade
through the deadbolt slot and guide
connection cables through the
cross-bore hole under the deadbolt
as shown. Align and secure until
flush to exterior door surface.
6
EXTERIOR VIEW
[1]
Vertical
Extended
Under
To Next Page
