INSTALLING INTERIOR ASSEMBLY (F)
7
Step 3
TIP: when installing screws by hand, turn screws clockwise several turns then
counterclockwise one turn to ensure smooth threading and no cross threading.

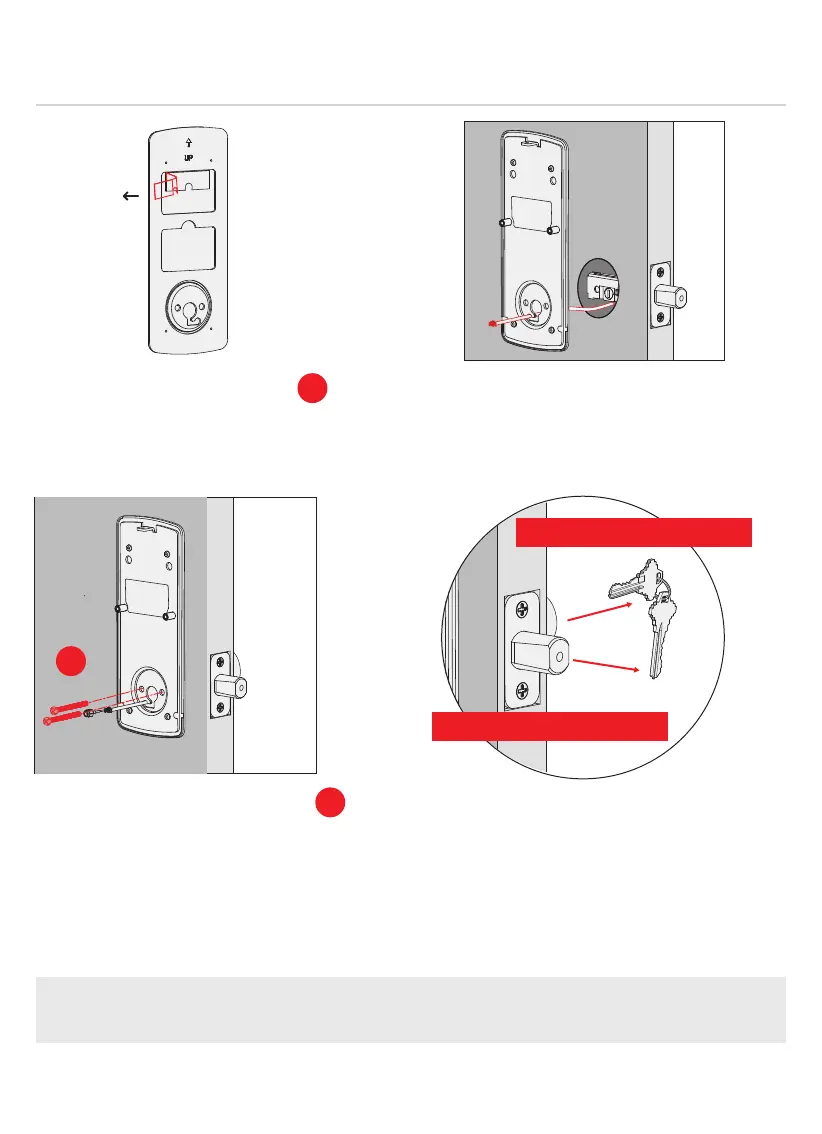

1: Check mounting plate
alignment to door hole before
securing with adhesive strips.
3: Insert, tighten by hand 2
screws located on the left and
right of the blade. Check
alignment and tighten with
screwdriver until mounting plate
is securely placed on door.
4: Use the key to ensure deadbolt
locks and unlocks smoothly (no
binding or rubbing). IMPORTANT:
when finished, leave the deadbolt
extended and remove the key
before proceeding to the next step.
2: Align and secure mounting plate
with adhesive strips. Guide con-
nection cable through and secure
to the lower left notched hole.
2X
G
D
G
Remove key when finished
Leave deadbolt extended
To Next Page
