9
PREPARING LOCK FOR INSTALLATION
Step 3
2
D
3

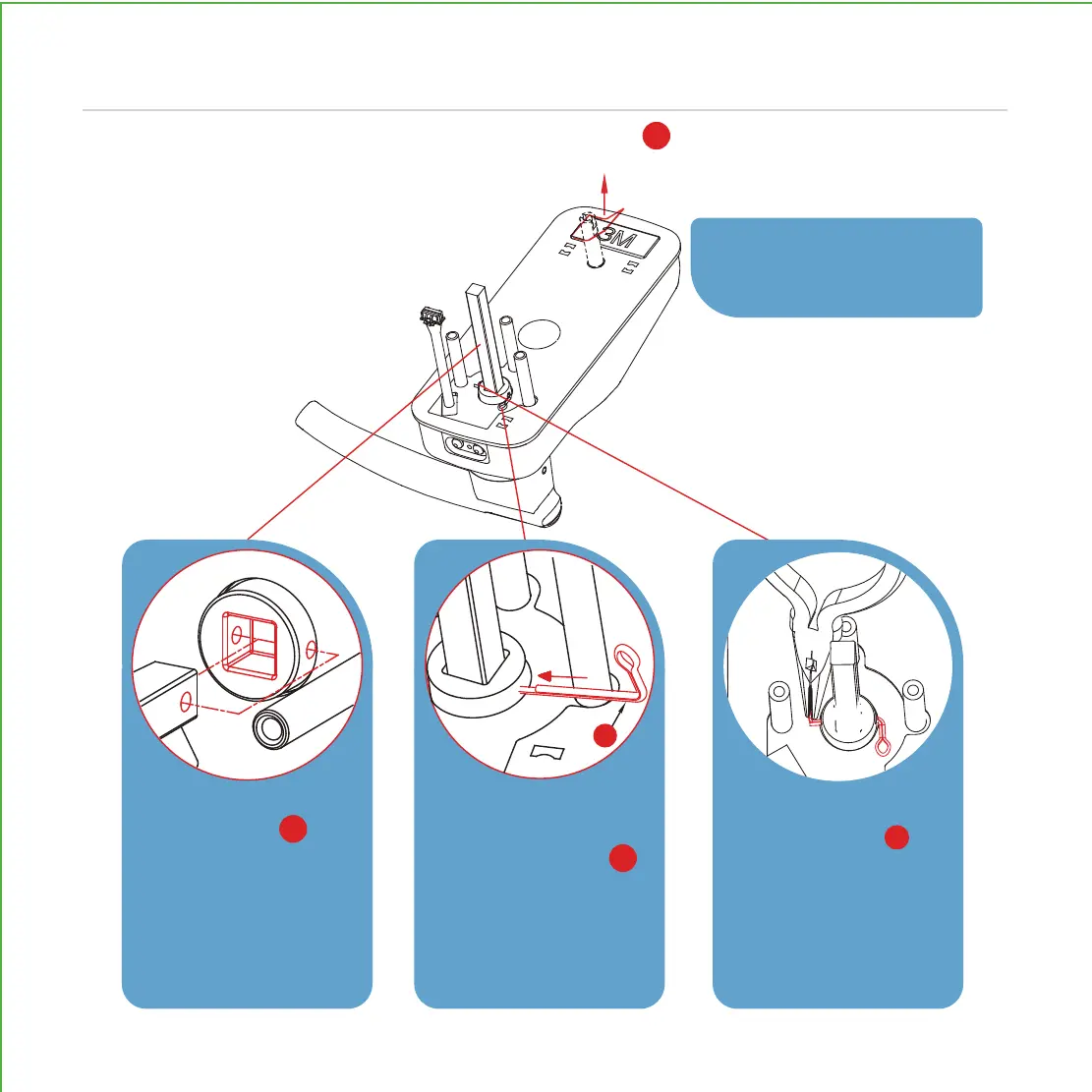

If you drilled a hole in Preparation, use Slotted Barrel Extension U and securely tighten with a flat head
screwdriver by turning it clockwise onto the lock. If you did not drill a hole in Preparation, you can leave
this pole removed.
1
Install Spindle C with
the holes side into the
base of the lock and
align the holes locate
in the 3 o’clock and
9 o’clock position.
Insert locking pin D
in to the hole as
shown above.
Carefully bend the end
of the locking pin D with
a needle nose pliers.
Failure to bend the locking
pin and turn the handle
freely without obstruction
will result to malfunction.
4
Peel paper layer OFF the
Adhesive tape and
prepare for installation.
To Next Page
