12
INSTALLING THE LOCK (INTERIOR)
Step 5
continued
* If you have drilled a hole on the
top in Preparation, please secure
the hole with screw M1 or M2
depending on your door thickness.
Skip this if no hole was drilled in
Preparation.
P M 5 X 2 5 m m
P M 5 X 3 5 m m
LK
O
3
x

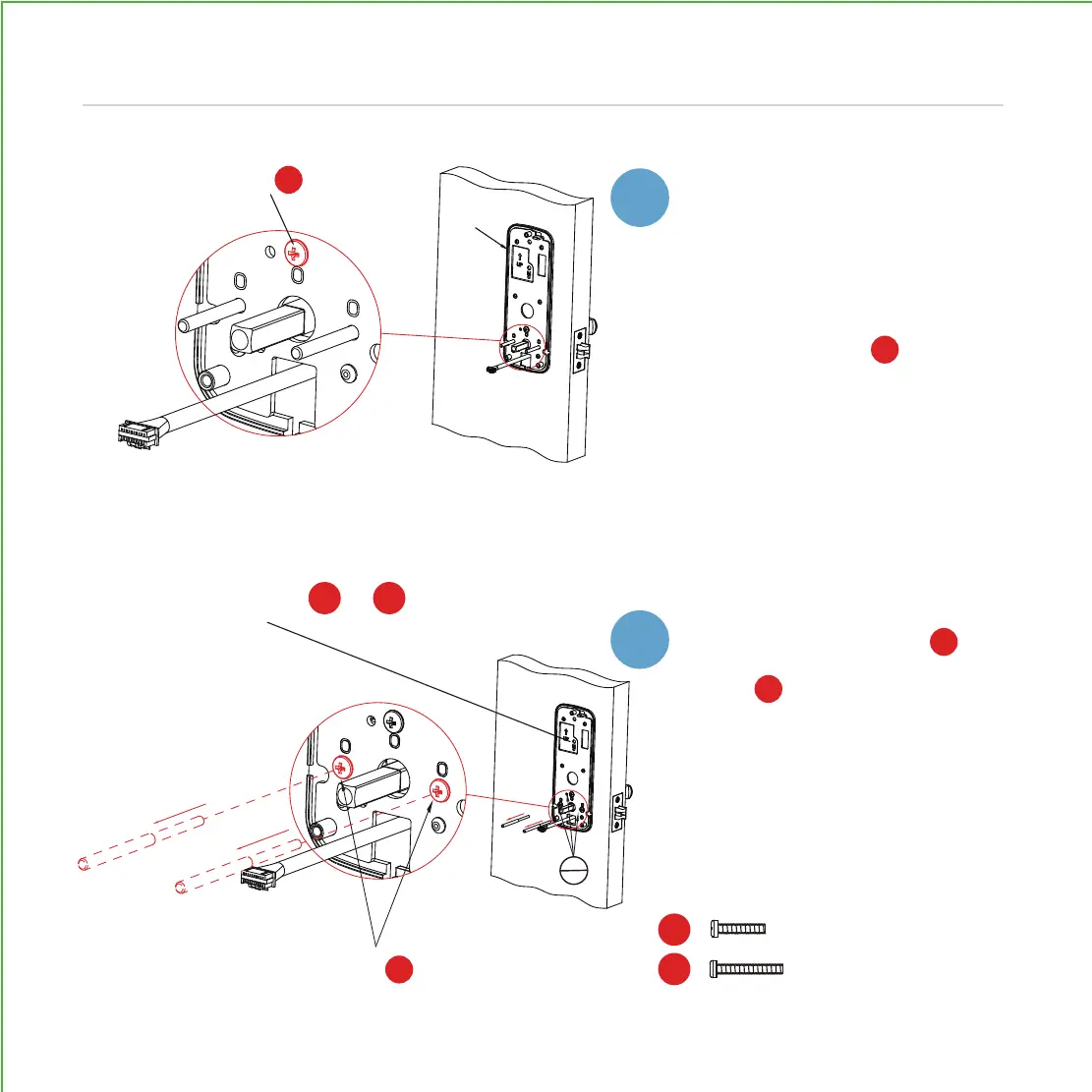

Pull the cable from the lock
exterior through the rectangular
hole underneath the positioning
rods and spindle.
Secure the hole above the
spindle with screws O .
Remove the position rods V
and replace them with
screws O Tighten clockwise until
the mounting plate is secure.
Screw O
*Secure top with M1 or M2
Screw O
M1
M2
3
4
To Next Page
