INSTALLING THE LOCK (INTERIOR)
Step 5
Interior

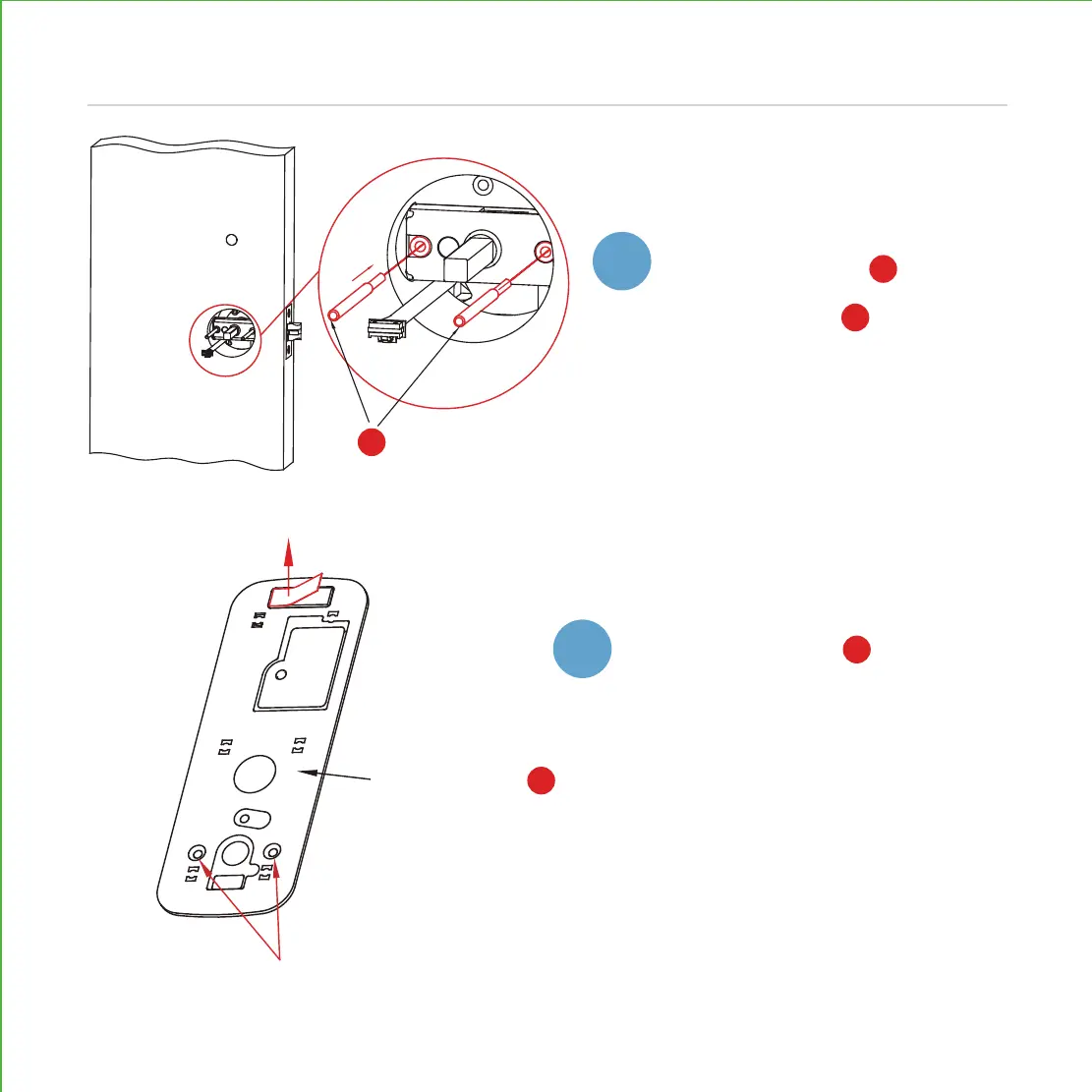

Positioning rods slide
through these holes.
Install the side with the black
plastic seal against the door.
Insert Positioning Rods V into
the holes to the left and
right of the Spindle C .
The holes are located at the 3
o’clock and 9 o’clock positions.
Interior Mounting Plate LK will go
against the interior side of your door.
Remove the paper layer off of the
Adhesive Tape and align the
positioning rods on the bottom of
the plate to the corresponding left
and right holes.
V
Mounting Plate LK
1
2
