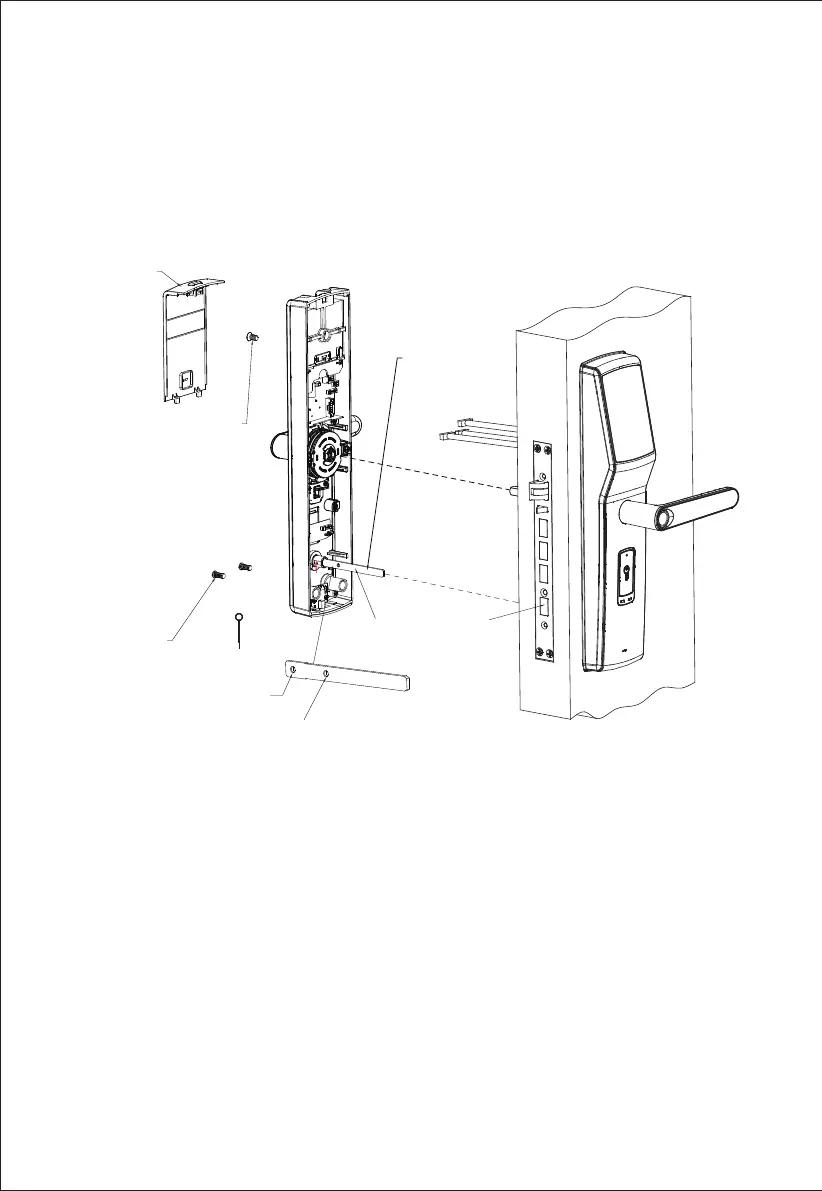

STEP 5 . INSTALLING THE INTERIOR PANEL
Remove and discard the positioning sleeve then insert both lock cables to the correspond-
ing socket of the interior panel. Insert the cotter pin to the flat shaft. See notes as illustrated
in the diagram. Then insert the flat shaft to the corresponding holes and tighten with screws
provided.
Flat Shaft
Fixing Screw
Fixing Screws
Battery Cover
Cotter Pin
Turnable Flat Strip
When deadbolt is
scaled back, the
thumb turn is on
vertical position.
When the door thickness is
greater than 70mm, insert
the cotter pin through this
hole.
When the door thickness is
less than 70mm, insert the
cotter pin through this hole.
To Next Page
