Lockly Secure LUX Installation Manual

STEP 4. INSTALLING THE EXTERIOR PANEL
4.1 Insert the square shaft through the exterior panel. Cut the shaft according to the
door thickness. Then install the exterior panel, shaft, EVA and the escutcheon in place.
4.2 Route both the lockset and exterior panel cables through the corresponding holes
then insert the positioning sleeve into the inner side of the square shaft. Make sure they
are all aligned and correctly oriented.
4.3 Check both inner and outer handles if they are in smooth operation. Then check if
the locking and unlocking operations are smooth. If not, adjust the mounting screws

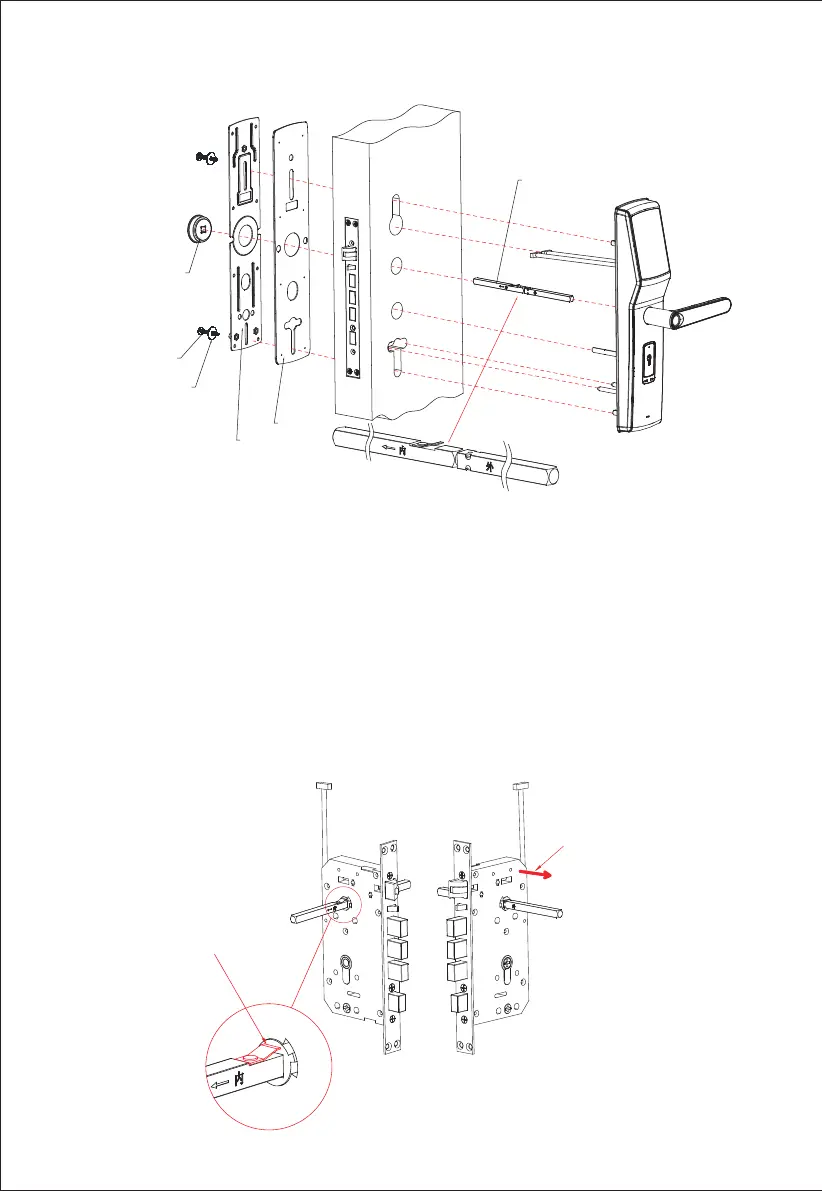

until the the operation is running smooth. See illustration as shown below:
Note: This shaft needs to be inserted through the outer part of the door
Position Sleeve
(Should be removed
after the shaft is
positioned)
Outer Panel Fixing
Screw Gasket
Outer Panel
Fixing Screw
EVA
Escutcheon
Shaft
Shaft Installation
Inside Door: The shaft
must be inserted in place
after installation. The shaft
must pass through
completely the lock body,
as shown below.
Outside Door: After the
shaft is installed, pull the
shaft outward by hand in
the direction of the arrow,
and ensure the shaft
cannot be pulled out.

Lockly Secure LUX Specifications

General

Brand	Lockly
Model	Secure LUX
Category	Door locks
Language	English
