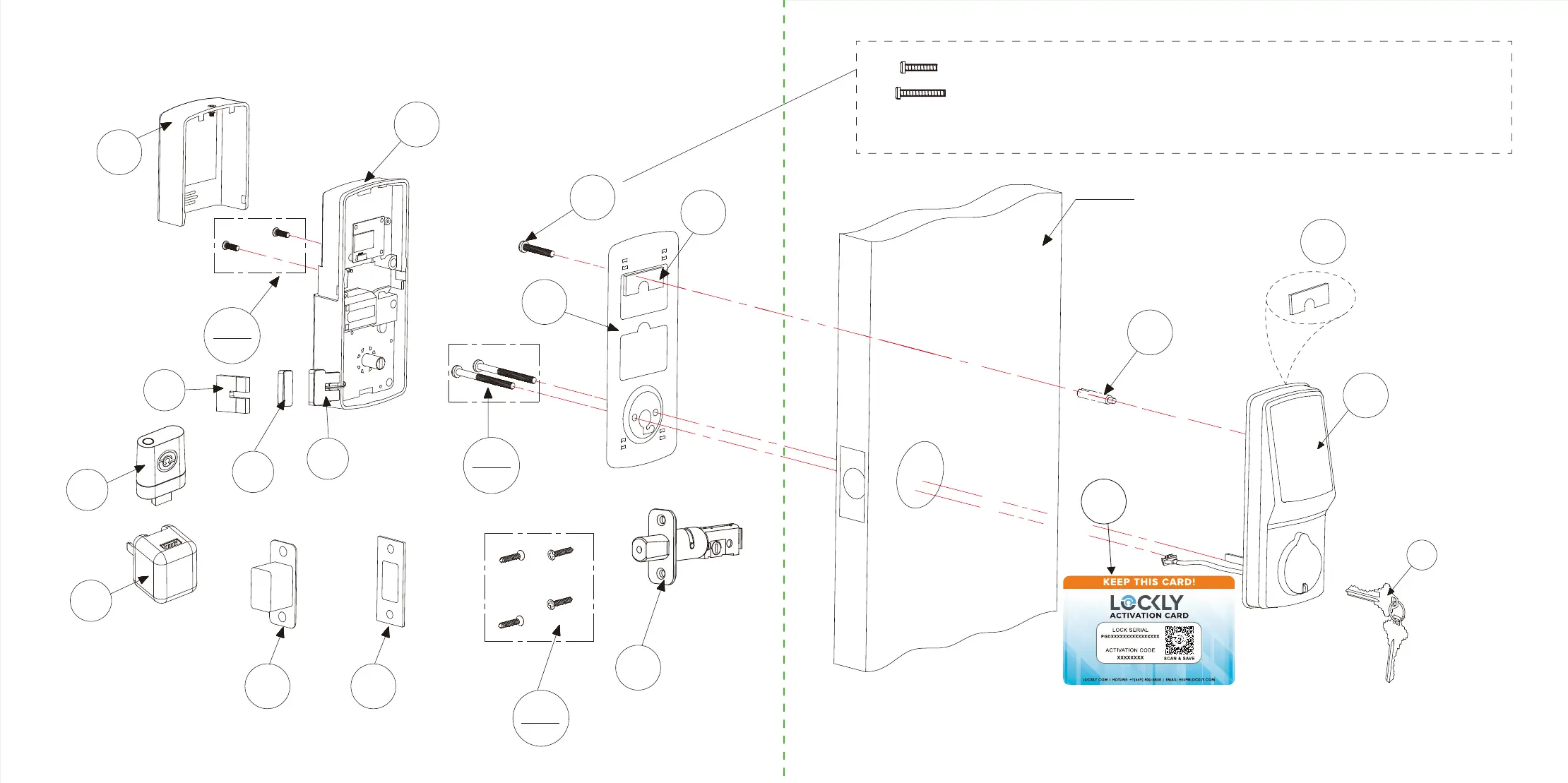

Lockly SECURE PRO - INSTALLATION OVERVIEW & PARTS LIST

Q
P
S
R
T
K
I
2X
H
F
D
J
L
N
4X
Slotted Barrel
Extension
Exterior
M
G
2X
E
O
（Optional）
Adhesive
Keys
Exterior Assembly
Adhesive TAPE
A
B
M
Adhesive TAPE
E1 PM5 x 25mm Screw, Door thickness1-19/50"~1-69/100"(35~43mm)
E2 PM5 x 35mm Screw, Door thickness1-69/100"~1-97/100"(43~50mm)
NOTE: You can either use M or O to stabilize the exterior part. O requires drilling
an extra hole. Use provided Template for drilling instructions if needed.
U
Sensor Magnet
Wired Sensor
UNF10-32*60mm Screw
Wi-Fi Hub
Foam Pads
Power Adaptor
Battery Cover
Interior Assembly
PM5 Screw
Mounting
Plate
Adhesive
Deadbolt
Strike Plate
Dust Box
KA4*20MM Screw
PM4*12MM
Screw
INSTALLATION OVERVIEW & PARTS LIST
Lockly Secure Pro can be fitted for both right swing doors and left swing doors.
ACC20211201
