Lockly VISION ELITE - Section 2 - Product Overview; 2.1 Product Overview- Exterior

J
K
4x
L
N
LOCKLY.COM | HOTLINE: +1(669) 500-8835 | EMAIL: HELP@LOCKLY.COM
ACC20211201
KEEP THIS CARD!
ACTIVATION CARD
Lockly Vision
™
Elite can be fitted for both right swing doors and left swing doors.

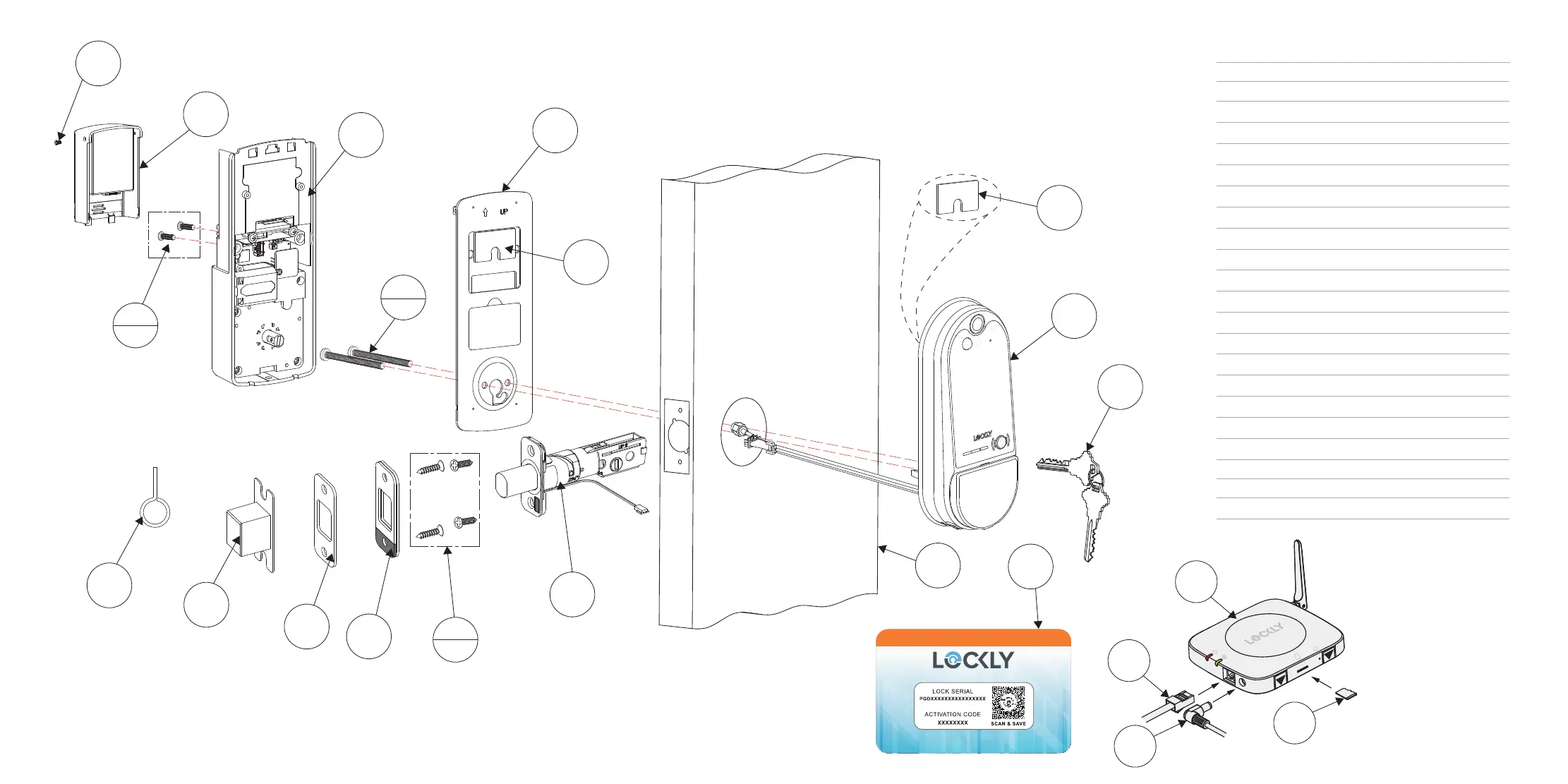

INSTALLATION OVERVIEW AND PARTS LIST
A
B
S
U
T
C
D
G
I
W
H
2x
P
E
E
F
2x
Parts List
Labeled As Description
A Keys
B Exterior Assembly
C Exterior
D Mounting Plate
E Adhesive
F PM5×60mm Screw
G Interior Assembly
H PM4*12MM Screw
I Battery Cover
J Deadbolt
K KA4*20MM Screw
L
Strike Plate
P Strike Spacer
N Dust Box
R
S
T
Vision Connect
LAN Cable
Power Plug
U
TF Card
V
Activation Card
W
KM3x6mm Screw
X
Pin Key
R
Adhesive TAPE
V
X
