If your door gap is larger than 5mm, it is recommended
to install Strike Spacer to lessen the gap to ensure
the normal operation of the door sensor.
P
P
Use the supplied door strike plate (L) which has the built-in door sensor magnet.
12

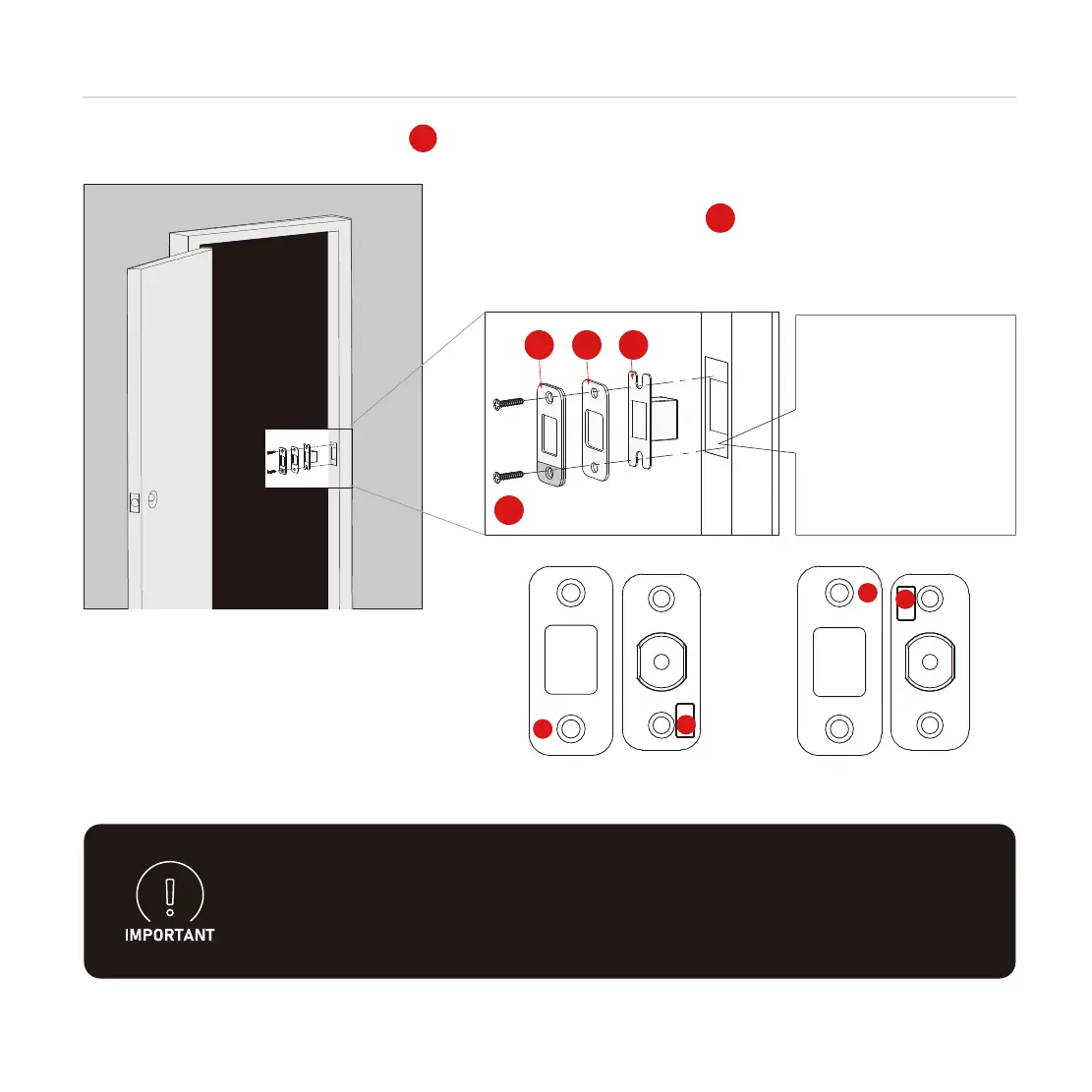

INSTALLING STRIKE PLATE
Step 5
side view (70mm)
side view (60mm)
When installing the deadbolt and
door strike, make sure the two red
marks are aligned.
(2X)
NL
K
L
L
K(2X)
N
P
USE THE INCLUDED
DOOR STRIKE PLATE
WITH INTEGRATED
DOOR SENSOR.
Depending on your
door and door frame
gap you may need to
increase the depth of
the groove or use strike
spacer to lessen the gap.
Because doors and frames vary in design it may be necessary to make
slight adjustments to your strike plate and/or dust box in order to ensure
smooth deadbolt operation. This is very important. If the deadbolt is
binding or catching in any way, the lock will beep rapidly, indicating
it cannot close due to misalignment and/or excessive rubbing or binding.
To Next Page
