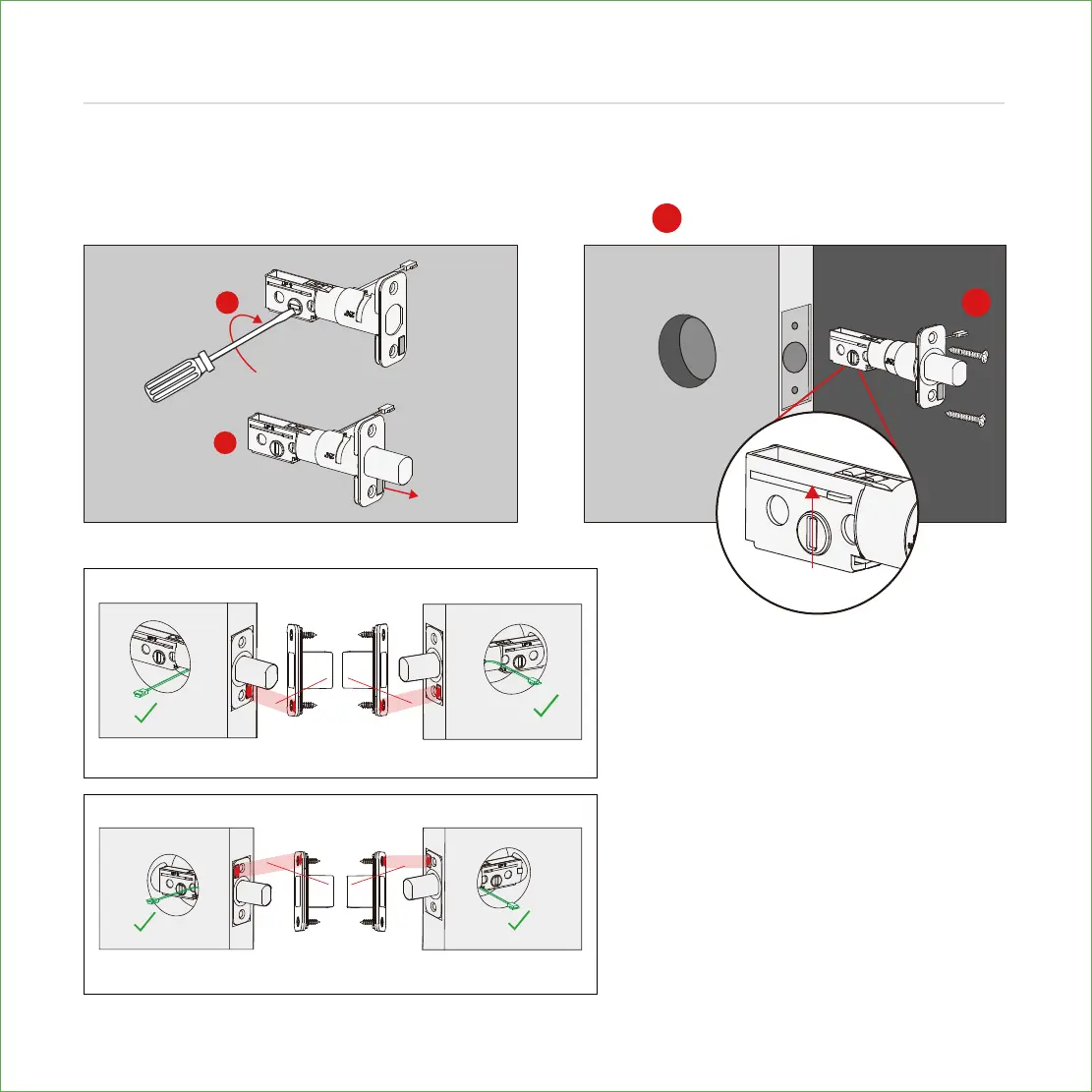

Extend the deadbolt by inserting a flat-head
screwdriver into the slot and turning clockwise.
Insert the deadbolt into the door edge,
make sure that the right side is up and
the slot is in the vertical position. Secure
with 2 screws.
Observe the correct position of the cable
to ensure it is according to your door
opening orientation (Left / Right Swing)
and Backset size (60mm/70mm).
During installation, DO NOT hammer the
deadbolt and/or its metal plate to avoid
damaging the built-in sensor.
K
ADJUST DEADBOLT AND INSTALL
Step 1
continued
Door edge side view (70mm)
Door edge side view (60mm)
Interior
Interior
LEFT SWING DOORRIGHT SWING DOOR
LEFT SWING DOORRIGHT SWING DOOR
Interior
Interior
(2X)
K
To Next Page
