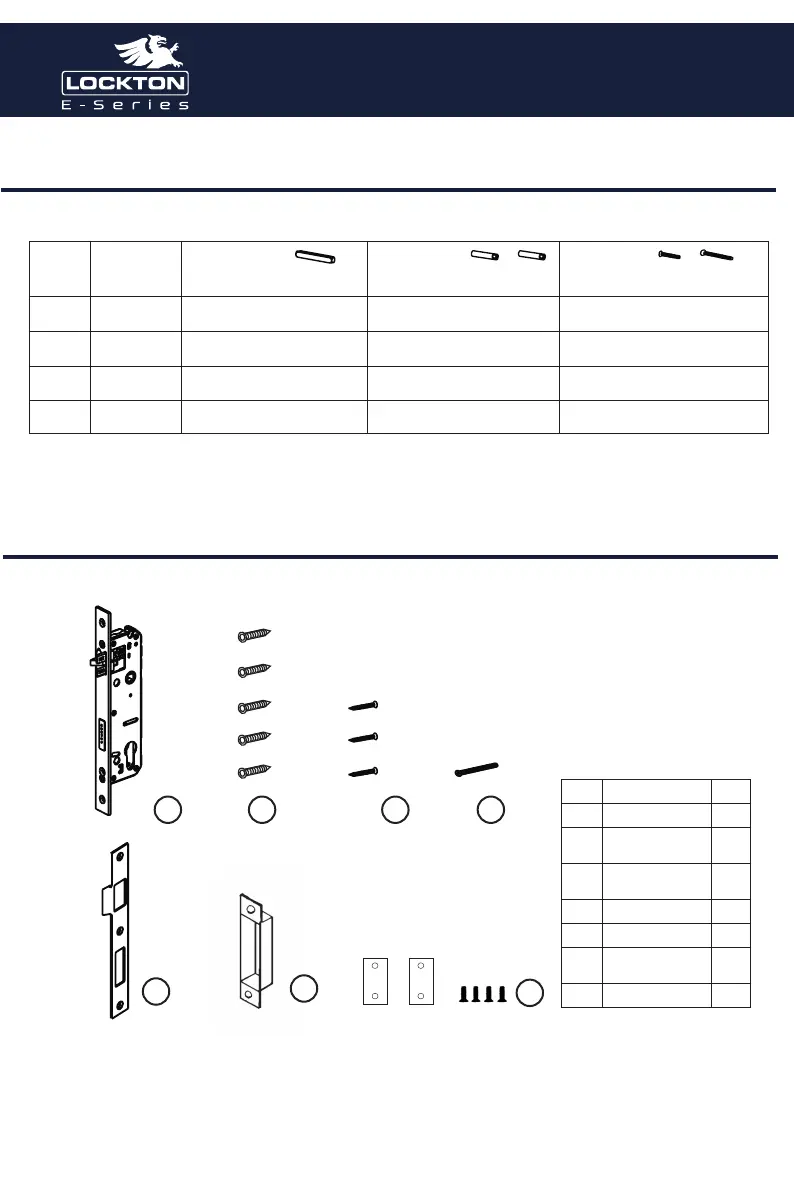

Content of Screw & Spindle packs
No. Door Thickness Spindle Connecting Pillar Screws
1 32-38 mm 50mm 5x5 25mm 2pcs "M5*25mm 1pc
M5*30mm 1pc"
2 39-45 mm 55mm 5x5 35mm 2pcs "M5*25mm 1pc
M5*40mm 1pc"
3 46-52 mm 65mm 5x5 45mm 2pcs "M5*25mm 1pc
M5*40mm 1pc"
4 >53 mm 90mm 5x5 45mm 2pcs M5*45mm 2pc
Content of Smart Euro Mortice Lock
KEY PART QT Y.
a Mortice lock 1
b Wood screws 4.2
x 20 mm
5
c Metal self-tapping
4.2 x 20 mm
3
d Cylinder screw 1
e Strike plate 1
f Strike plate plastic
box
1
g Fixing tabs set 1
a b
c
d
e
f
g
Art. ELEV36
