Lockton ELEV36 - Detailed Installation Guide: Door Preparation; Template Usage and Marking

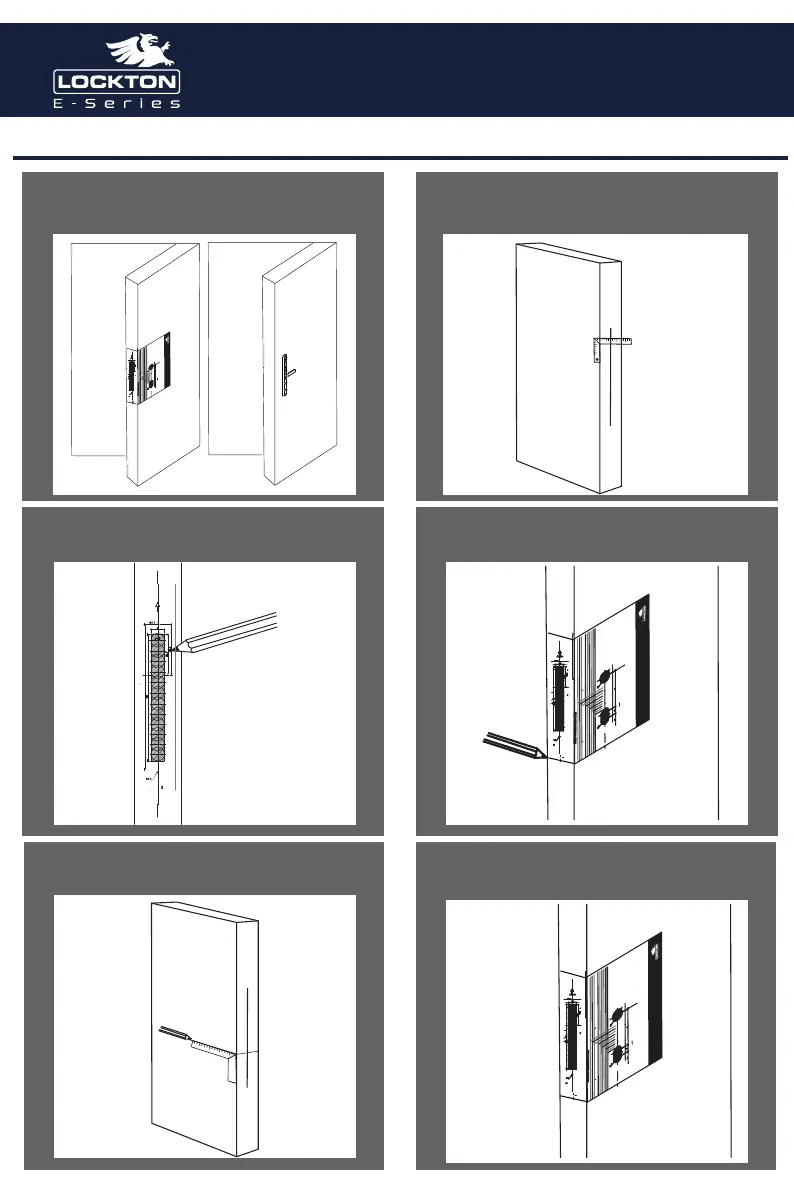

STEP 1. Work out the desired fitting position by
using both the printed template & the ELEV36
handle.
Art. ELEV36
Detailed step-by-step Installation guide
Arrow up
FOLD ON DESIRED BACKSET
SIEPER Group
Tel: 02 9352 0600
E-mail: support@siepergroup.com
www.sglocks.com.au
Door Face
*All Measurements in Millimetres
NOTE:
Handle Bottom
70mm
65mm
60mm
50mm
45mm
40mm
35mm
30mm
28mm
25mm
STEP 2. Measure the door thickness & mark the
centre of the doors edge. Use the template to align
the centre line of the template with your door centre.
STEP 3. Mark the hole centres on the door edge for
installation of the mortice lock.
STEP 4. Mark a horizontal line at the bottom of
the template.
STEP 5. Use a set square to mark the horizontal
line to the front and rear of the door.
STEP 6. Fold the template at the desired backset
between 25-70mm on the vertical line & align with
the doors edge on the front of the door.
Arrow up
210
FOLD ON DESIRED BACKSET
FOLD ON DESIRED BACKSET
Arrow up
FOLD ON DESIRED BACKSET
SIEPER Group
Tel: 02 9352 0600
E-mail: support@siepergroup.com
www.sglocks.com.au
Door Face
*All Measurements in Millimetres
NOTE:
Handle Bottom
70mm
65mm
60mm
50mm
45mm
40mm
35mm
30mm
28mm
25mm
Arrow up
FOLD ON DESIRED BACKSET
SIEPER Group
Tel: 02 9352 0600
E-mail: support@siepergroup.com
www.sglocks.com.au
Door Face
*All Measurements in Millimetres
NOTE:
Handle Bottom
70mm
65mm
60mm
50mm
45mm
40mm
35mm
30mm
28mm
25mm
Art. ELEV36
