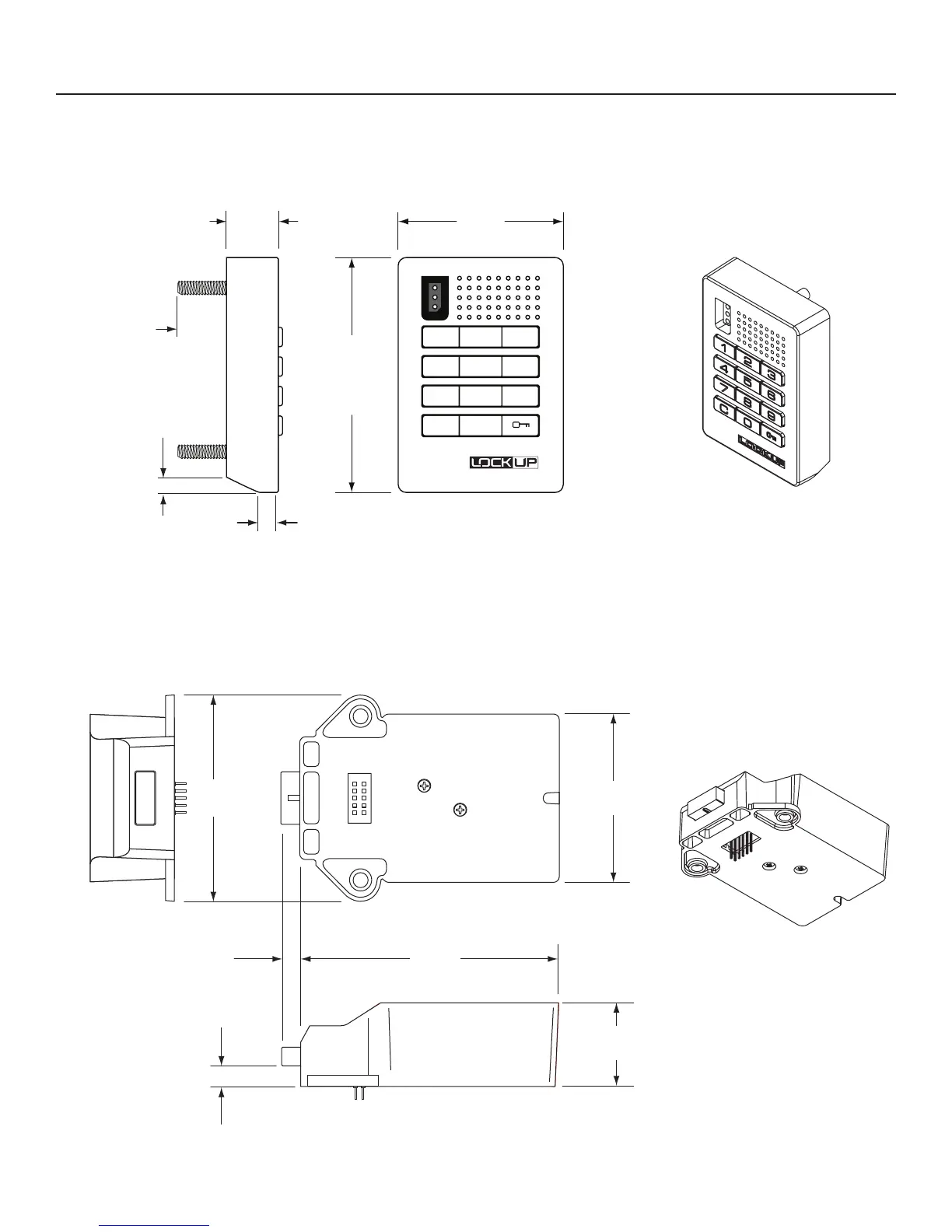

Drawings & Dimensions
Screw Post Length
1 2 3
4 5 6
7 8 9
C 0
2.17 in
(55 mm)
3.10 in
(79 mm)
0.69 in
(18 mm)
0.56 in
(14 mm)
0.21 in
(5 mm)
0.15 in
(4 mm)
SIDE VIEW
FRONT VIEW
Solenoid Spring Bolt
Solenoid Spring Latch
BACK VIEW
SIDE VIEW
FRONT SIDE VIEW
FRONT SIDE VIEW
BACK VIEW
SIDE VIEW
2.75 in
(70 mm)
2.24 in
(57 mm)
1.12 in
(29 mm)
3.45 in
(88 mm)
0.27 in
(7 mm)
0.29 in
(7 mm)
2.75 in
(70 mm)
2.24 in
(57 mm)
1.12 in
(29 mm)
3.45 in
(88 mm)
0.27 in
(7 mm)
0.29 in
(7 mm)
Front Unit - with Screw Post
Rear Unit - Spring Bolt
ISO VIEW
ISO VIEW
