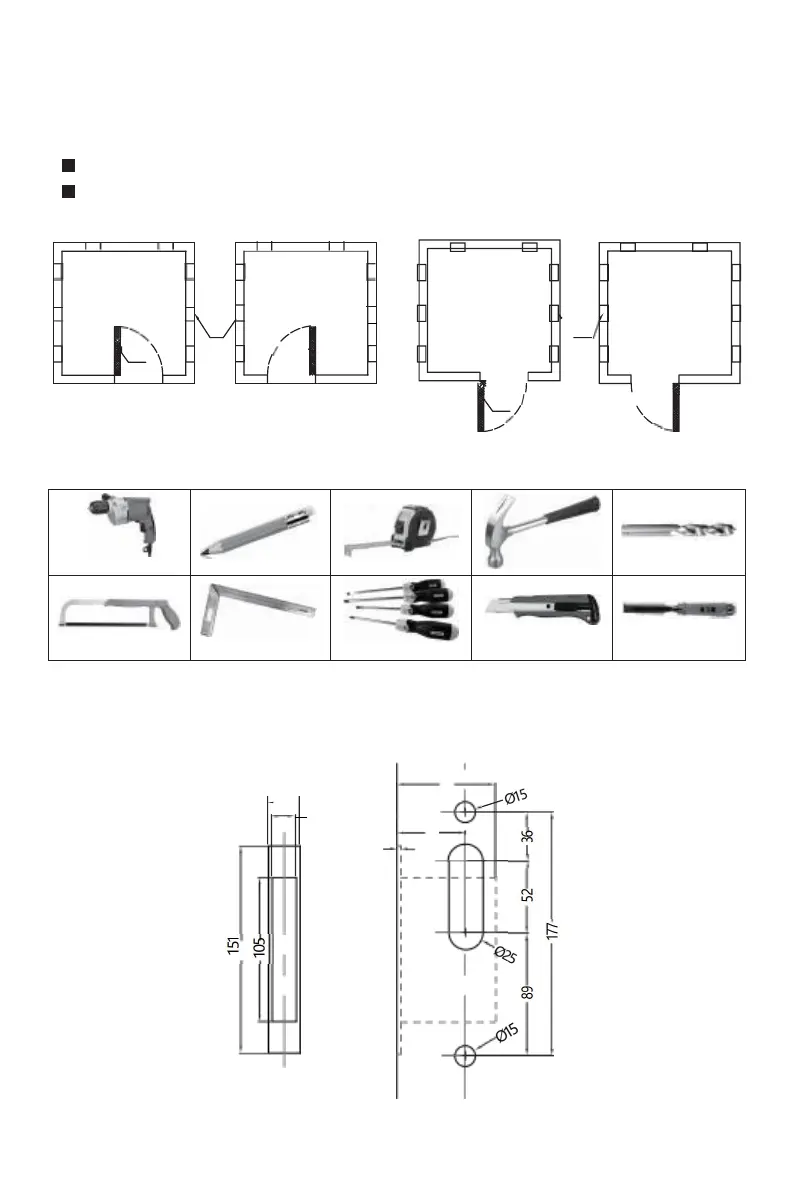

Ⅱ、Installation Guide
1、installation conditions
1.1、Door thickness
Door lock border ≥110 mm (thickness of inconsistent doors)
45mm≤door thickness ≤120mm( custom accessories are required when size exceeded)
1.2、Opening direction
indoor
door
Left inside Right inside
indoor
Left outside
door
2、Installation tool
(for reference only)
1.manual electricdrill
2.pencil
3.tape ruler
4.hammer
5.bit
6.hacksaw
7.angle ruler
8.screwdriver
9.Cutter
10.chisel
3、Opening size diagram
(for reference only)
——-—
23
17.5
72
50
3
indoor
door
\
door
i
\
wall
wall
