Art 40-55
User guide
english
8

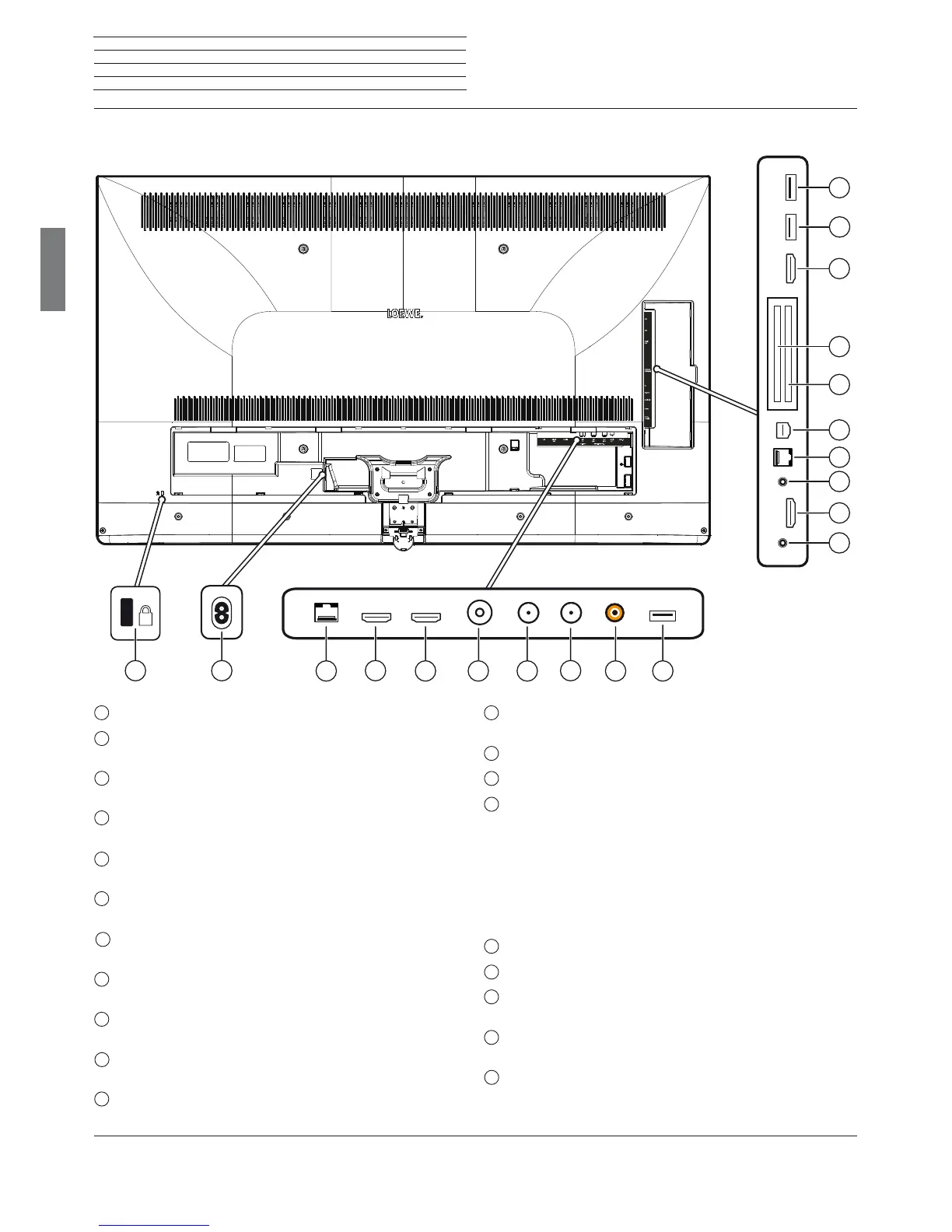

Connections rear side of the device
Position and function of the connections
1
Slot for Kensington lock
2
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
3
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
4
HDMI 1 ARC - HDMI input 1 (with Audio Return Channel)
HDMI type A 1.4b – Digital Video IN (4K@30Hz)/Audio IN/OUT
5
HDMI 2 - HDMI input 2
HDMI type A 1.4b – Digital Video IN (4K@30Hz)/Audio IN
6
ANT TV - Antenna/cable analogue /
DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
7
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
8
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
9
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
10
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 900mA)
11
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
12
HDMI 3 - HDMI input 3
HDMI type A 1.4b– Digital Video IN (4K@30Hz)/Audio IN
13
AUDIO OUT - Audio output (analogue) L/R – (
Jack 3,5 mm)
14
RS-232C - Serial interface
(1
– (RJ12)
15
AV - Micro AV socket
(1
Audio/Video IN with Scart adapter:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
16
COMMON INTERFACE - CI slot 1 (standard V1.3)
17
COMMON INTERFACE - CI slot 2 (standard V1.3)
18
HDMI 4 UHD - HDMI input 4
(2 (3
HDMI type A 2.0 – Digital Video IN (4K@60Hz)/Audio IN
19
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
20
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
(1
The adaptor is available as an accessory from your dealer.
(2
In case of TV set types Art 55/48/40 (Ultra HD): HDMI sources that provide UHD content should be connected to this port.
(3
In case of TV set types Art 40 (Full HD): connection does not exist.
