Loewe bild c | User Manual

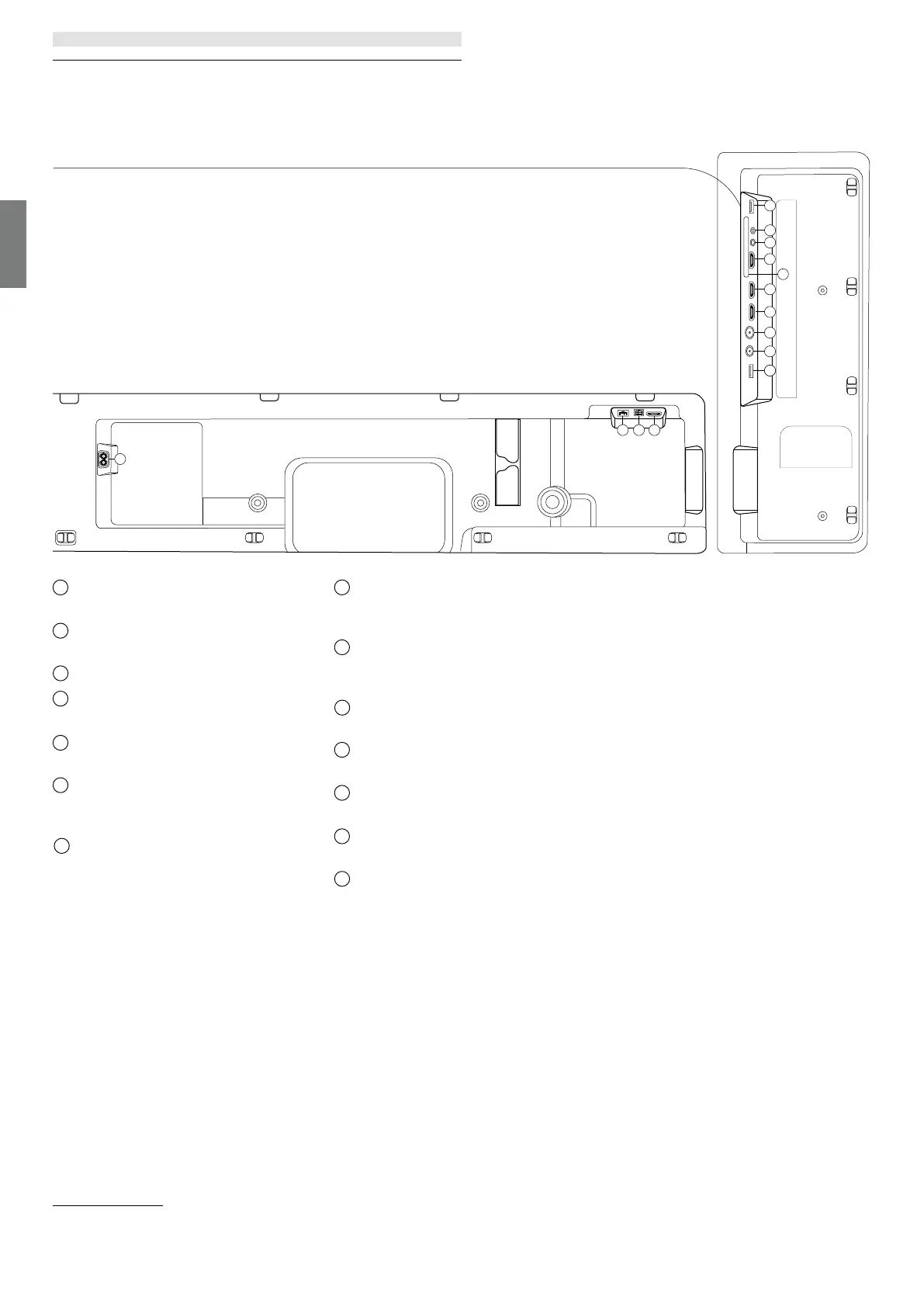

Position and function of the connections
14
13 12 11
1
2
3
4
5
6
7
8
9
10
1
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
2
AUDIO OUT- Audio output
Jack 3,5 mm (analogue) L/R
3
SERVICE
4
HDMI 1 - HDMI input 1
HDMI – Digital Video IN/Audio IN
5
COMMON INTERFACE -CI slot
(standard V1.4)
6
HDMI 2 - HDMI input 2
(with enhanced Audio Return Channel)
HDMI – Digital Video IN/Audio IN/OUT
7
HDMI 3 - HDMI input 3
HDMI – Digital Video IN/Audio IN
8
ANT TV - Terrestrial/cable
analogue / DVB-T/T2/C HD
IEC socket – 75 Ohm / 5 V / 80mA
9
ANT SAT - Satellite antenna
DVB-S/S2 HD
F socket – 75 Ohm / 13/18 V / 500mA
10
USB 2.0 - USB connection
USB type A – USB 2.0 (max. 500mA)
11
HDMI 4
(1
- HDMI input 4
HDMI – Digital Video IN/Audio IN
12
TOSLINK - Audio output
TOSLINK (digital)
13
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
14
AC IN - Mains connection
Mains socket - 220-240 V - 50 / 60 Hz
Position and function of the connections
1)
HDMI 4 input is not available on the bild c.32.
