Loewe Profil Plus 3272Z - Page 24

Tuner: 86974.051 86984.052
Q4806 / BC 857 B .................... X
Q4810 / BC 847 B .................... X
Q4811 / BC 847 B .................... X
Q4812 / BC 847 B .................... X
R4551 / 5K6 ............................. X
R4552 / 10k.............................. X
R4559 / 33k.............................. X
R4561 / 33k.............................. X
R4562 / 33k.............................. X
R4563 / 22k.............................. X
R4564 / 33k.............................. X
R4566 / 10R ............................. X
R4601 / 2k2.............................. X
R4701 / 2k2.............................. X
R4702 / 2k2.............................. X
R4703 / 10k.............................. X
R4704 / 10k.............................. X
R4706 / 22k.............................. X
R4707 / 68k.............................. X
R4708 / 10k.............................. X
R4711 / 22k .............................. X
R4714 / 0R ............................... X
R4714 / 270R ........................................................ X
R4716 / 10k.............................. X
R4717 / 10k.............................. X
R4801 / 10k.............................. X
R4802 / 10k.............................. X
R4803 / 10k.............................. X
R4804 / 10k.............................. X
R4805 / 27k.............................. X
R4806 / 22k.............................. X
R4807 / 47k.............................. X
R4808 / 22k.............................. X
R4809 / 27k.............................. X
R4810 / 68k.............................. X
R4811 / 10k .............................. X
R4812 / 10k.............................. X
R4813 / 22k.............................. X
R4814 / 22k.............................. X
R4816 / 5k6.............................. X
X4701 / OFW K6263 ................ X
X4711 / OFW G 3355-K ........................................ X
X4716 / 5,5MHZ .................................................... X
X4801 / OFW K9463M ............. X
X4811 / OFW K9461-M ............ X
Tuner: 86974.051 86984052
B4511 ....................................... X
B4703....................................... X
B4811 ....................................... X
B4824....................................... X
C4562 / 100p ........................... X
C4566 / 100n ........................... X
C4601 / 68p ............................. X
C4602 / 4n7 ............................. X
C4603 / 4n7 ............................. X
C4604 / 100n ........................... X
C4711 / 100n ............................ X
C4713 / 47n ............................. X
C4716 / 180p ........................... X
C4717 / 180p ........................... X
C4718 / 150p ........................... X
C4801 / 4n7 ............................. X
C4802 / 4n7 ............................. X
C4803 / 4n7 ............................. X
C4804 / 4N7 ............................. X
C4806 / 3p3 ............................. X
C4811 / 2n2 .............................. X
C4812 / 4n7 ............................. X
C4813 / 4n7 ............................. X
C4814 / 4n7 ............................. X
C4816 / 47n ............................. X
D4701 / BAT 1805 .................... X
D4716 / BA 592 ........................ X
D4801 / BAT 1805 .................... X
D4804 / LS4148-GS08............. X
D4808 / BA 592 ........................ X
D4811 / BAT 1805 .................... X
I4550 / HEF 4051 ..................... X
J4534 / 0R................................ X
J4707 / 0R................................ X
J4801 / 0R................................ X
J4803 / 0R................................ X
J4807 / 0R................................ X
L4601 ....................................... X
L4716 / 5.5 MHz....................... X
L4716 / 10µH ........................................................ X
Q4561 / BC 847 B .................... X
Q4701 / BC 847 B .................... X
Q4702 / BC 847 B .................... X
Q4801 / BC 847 B .................... X
Q4802 / BC 847 B .................... X

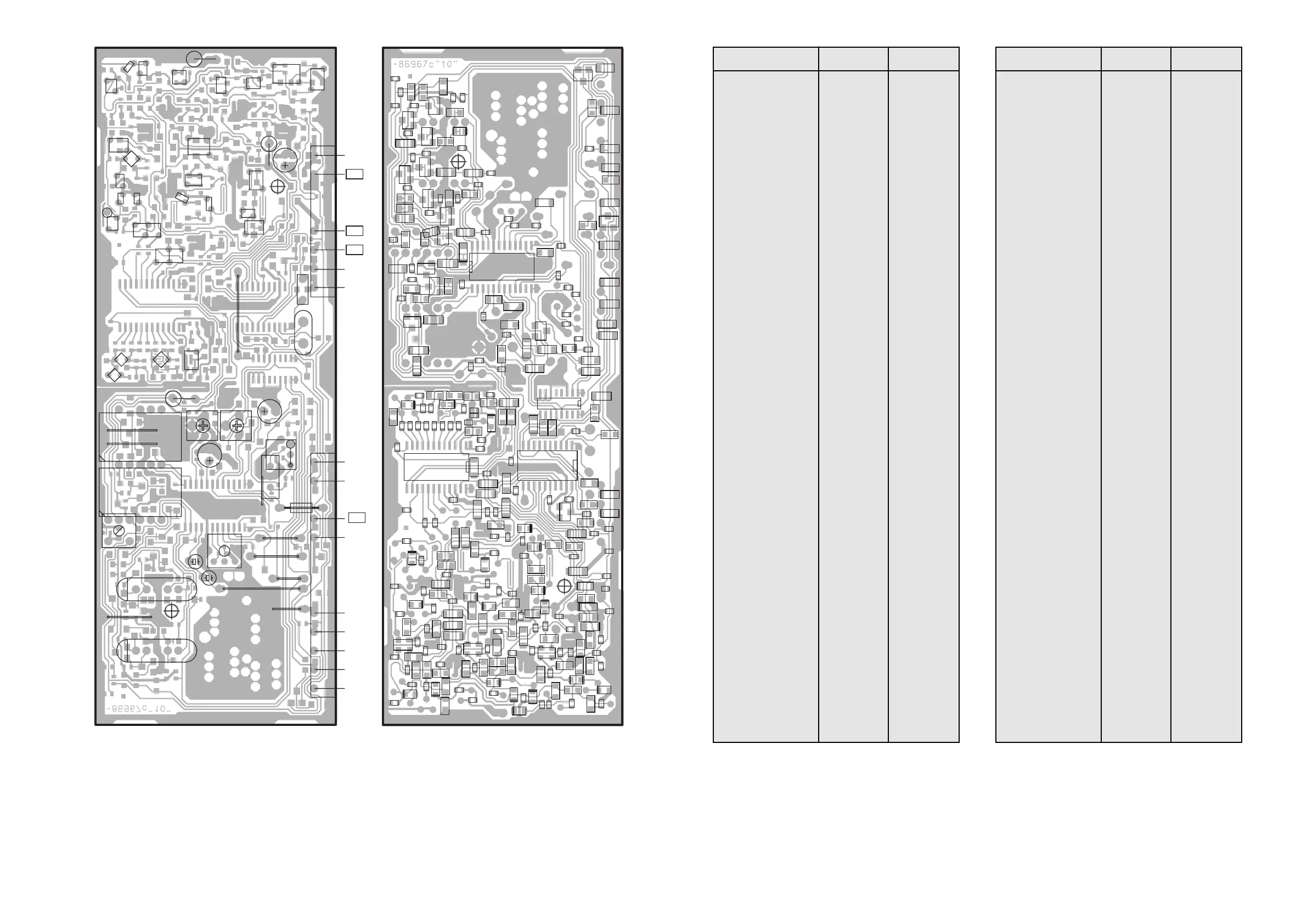

Ltpl. Tuner/ZF 396-86967C (86974C / 86984C)
Tuner/IF P.C.B.
Platine Tuner/FI
Piastra Tuner/FI
Lötseite - Solder side -
Côté soudure - Lato saldature
Ltpl. Tuner/ZF 396-86967C (86974C / 86984C)
Tuner/IF P.C.B.
Platine Tuner/FI
Piastra Tuner/FI
Bestückungsseite - Component side -
Côté composants - Lato componenti
Q4202
Q4101
C4101
C4103
C4105
C4106
C4107
C4115
C4116
C4117
C4118
C4120
C4123
C4126
C4135
C4140
C4144
C4149
C4205
C4209
C4211
C4216
C4217
C4218
C4221
C4224
C4230
C4233
C4236
C4241
C4246
C4248
C4250
C4304
C4310
C4312
C4313
C4314
C4316
C4319
C4322
C4325
C4328
C4331
C4332
C4334
C4337
C4343
C4345
C4355
C4356
C4439
C4454
C4457
C4465
C4466
C4467
C4468 C4469
C4470
C4471
C4472
C4473
C4474
C4479
C4481
C4482
C4485
C4487
C4491
C4492
C4493
C4502
C4503
C4513
C4514
C4516
C4517
C4518
C4519
C4521
C4531
C4533
C4534
C4536
C4546
C4547
C4548
C4601
C4602
C4603
C4604
C4701
C4711
C4713
C4724
C4742
C4747
C4801
C4802
C4804
C4806
C4811
C4812
C4813
C4814
C4816
C4827
C4847
D4101
D4105
D4107
D4110
D4113
D4116
D4117
D4203
D4206
D4208
D4211
D4212
D4215
D4302
D4304
D4309
D4314
D4418
D4419
D4420
D4533
D4534
K
A2
A1
D4701
D4716
K
A2
A1
D4801
D4804
D4808
K
A2
A1
D4811
I4401
J4101
J4103
J4117
J4206
J4210
J4302
J4304
J4305
J4308
J4309
J4417
J4445
J4511
J4513
J4520
J4531
J4534
J4569
J4601
J4707
J4724
J4752
J4801
J4803
J4807
J4
8
1
1
J4826
S
D
G1
G2
S
D
G1
G2
G1
G2
D
S
Q4303
C
E
B
Q4520
C
E B
Q4561
C
E
B
Q4701
C
E
B
Q4702
C
E
B
Q4751
C
E
B
Q4801
C
E
B
Q4802
C
E
B
Q4806
C
E
Q4810
C
E
B
Q4811
C
E
B
Q4812
C
E
B
Q4826
R4101
R4102
R4105
R4107
R4110
R4111
R4114
R4116
R4118
R4122
R4123
R4126
R4130
R4131
R4133
R4134
R4203
R4206
R4212
R4213
R4215 R4219
R4224
R4227
R4228
R4231
R4304
R4308
R4309
R4317
R4320
R4321
R4325
R4329
R4336
R4440
R4441
R4442
R4444
R4445
R4447
R4448
R4449
R4450
R4501
R4502
R4521
R4531
R4533
R4547
R4548
R4559
R4561
R4562
R4563
R4564
R4566
R4601
R4602
R4603
R4701
R4702
R4706
R4707
R4708
R4709
R4712
R4718
R4721
R4752
R4753
R4805
R4806
R4807
R4808
R4809
R4810
R4813
R4814
R4816
R4827
R4828
C4717
R4716
C4719
C4566
R4719
C4580
J4824
C4562
C4486
R4711
R4512
R4532
R4552
R4703
R4704
R4446
R4717
R4801
R4802
R4803
R4804
R4811
R4812
R4551
C4714
I4701
R4722
R4751
C4721
R4511
I4500
C4153
C4712
J4114
C4731
C4803
C4732
C4718
C4716
R4714
C4715
I4550
(GND)
B4701
B4702
B4703
B4811
C4338
C4501
C4532
C4741
C4751
C4821
L4100
L4101
L4103
L4105
AGC
1
5
U12
2
L4108
L4118
L4122
L4123
L4206
L4209
L4210
L4214
L4219
L4221
L4229
L4230
L4302
L4304
L4307
L4311
L4312
L4313
L4315
L4317
L4324
L4325
L4326
L4431
L4432
L4433
L4434
L4601
L4701
L4732
P4711
P4712
X4501
X4701
1
X4711
1
X4801
1
X4811
1
B4721
(U5)
(AFC)
B4569
(SIF)
(AGC)
R4826
B4824
B4747
B4826
C4744
B4841
(NF)
W4501
B4511
W4502
X4716
L4716
U33
8
SDA
17
18
AGC
20
21
25
FBAS
7
SCL
6
U5
U5
GND
26
Ton-ZF
27
28
NF 1
29
