620 Operation and Troubleshooting Guide
plus
CAN
®
Max Speed
Set analog speedometer full scale speed
MPH 15, 20, 25, 30, 35, 40 (default), 45, 50, 55, 60, 70, 75, 80, 85, 95 or 100
km/h 20, 30, 40, 50, 60 (default), 70, 80, 90, 100, 110, 120, 130, 140, 150 or 160
Kts 10, 20, 25, 30, 35 (default), 40, 45, 50, 55, 60, 65, 70, 75, 80 or 85
Note: This only sets the range of the analog gauge. This does not limit the speedometer digital value.
Quad Adjust
Enable (On) or disable (Off, default)
Enabling Quad Adjust allows the gauge configuration of the Analog and Digital Gauge Pages to be
changed. Disabling Quad Adjust prevents accidental changes.
Voltmeter
Set system voltage
Setting the system voltage sets the analog voltmeter full scale voltage.
Voltmeter 12V (16 V fullscale, default)
24V (32 V fullscale)
Note: This only sets the range of the analog gauge .This does not limit the voltmeter digital value.

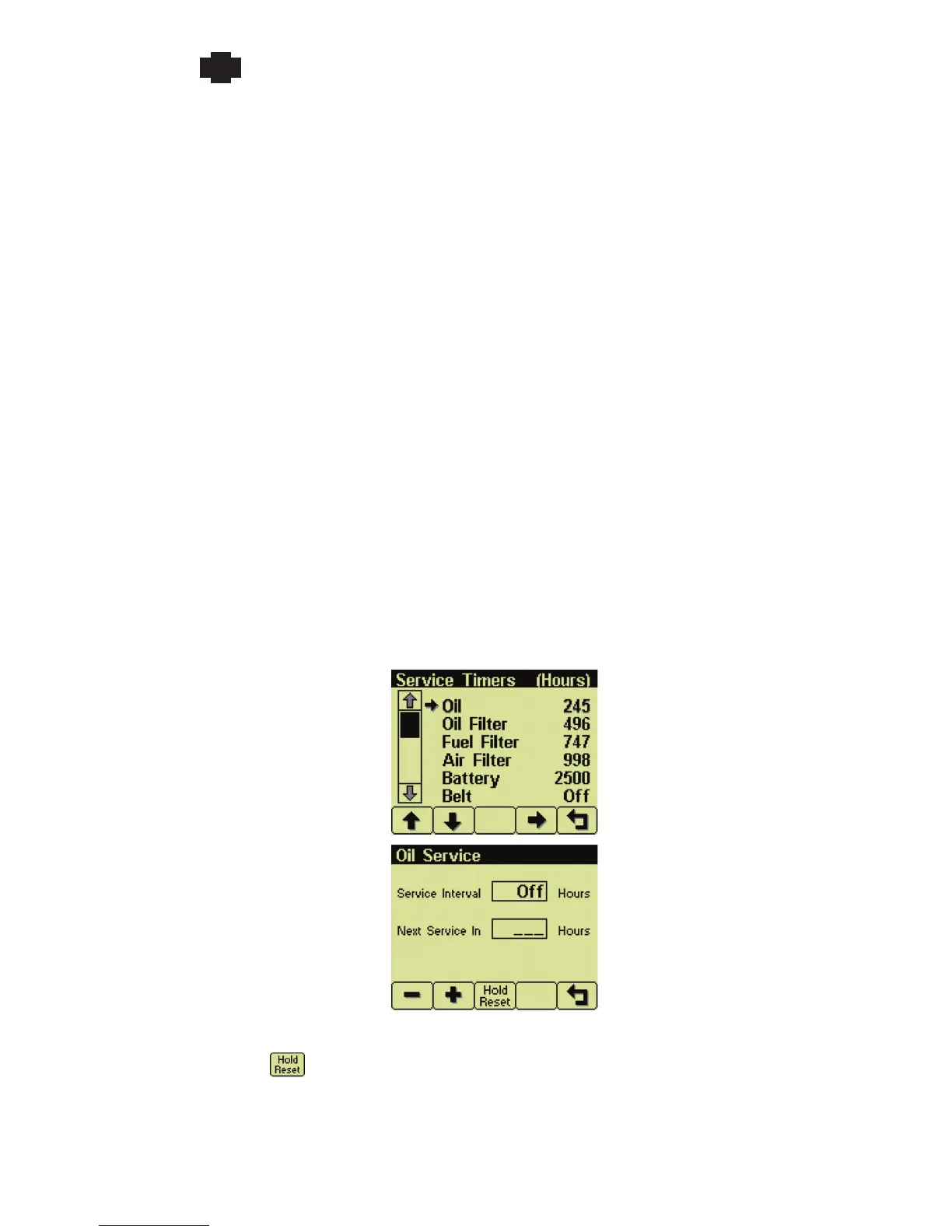

Service
Reset service interval timers
The service interval is adjustable in 10 hour increment starting from Off (0, default) using buttons 1 and
2. Holding button 3 for approximately 3 seconds resets Next Service In using the current service
interval and the engine hours.
Note: It is not possible to set service timers if engine hours are not being received by the display.
To Next Page
