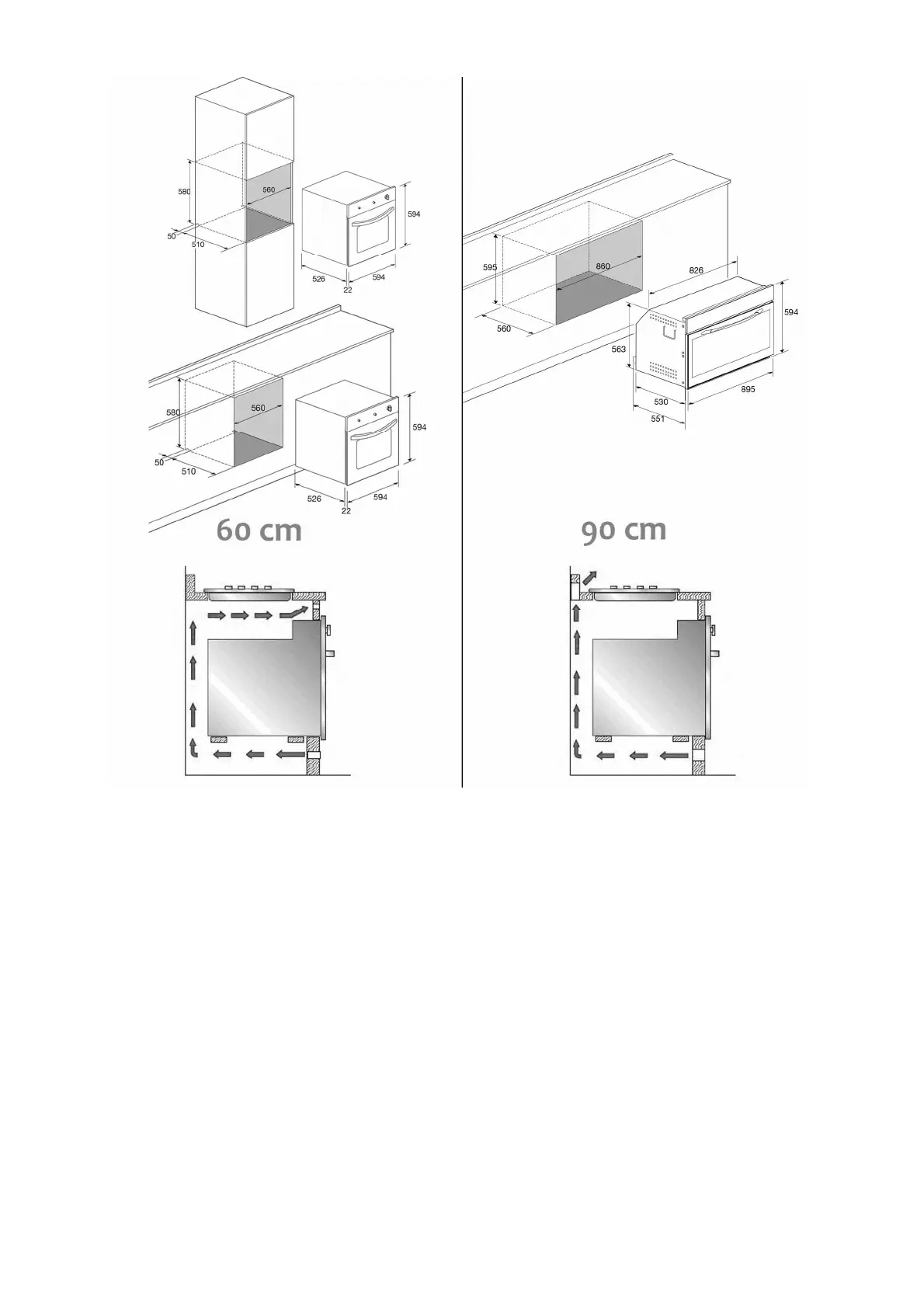

Put the oven inside the furniture and open the door.
Insert four self-threading burnished screws for wood with washer salvo-enamel edge in
four holes of diameter 9mm from the front.
Close the oven door.
1.2 ELECTRICAL CONNECTION
Connection to the electrical system must be done using the oven’s cable. If it should
become necessary to replace the electric power cable , it should be noted that the correct
type to use for connecting to the grid is : H05VV - F 3x1.5 mm
2
, With dimensions 90 cm
using cable 3x2.5 mm
2
. Do not position the cable on parts of the oven which get to a
temperature above 50C room temperature (top and sides); install a switch in overvoltage
category III.
