Logan Graphic Products 650-1 User Manual

Framer’s Edge Elite Mat Cutter
Instruction Manual
Model 650-1 / 655-1 / 660-1
5
Logan Graphic Products Inc., 1100 Brown St, Wauconda, IL 60084 847-526-5515 cs@logangraphic.com LoganGraphic.com

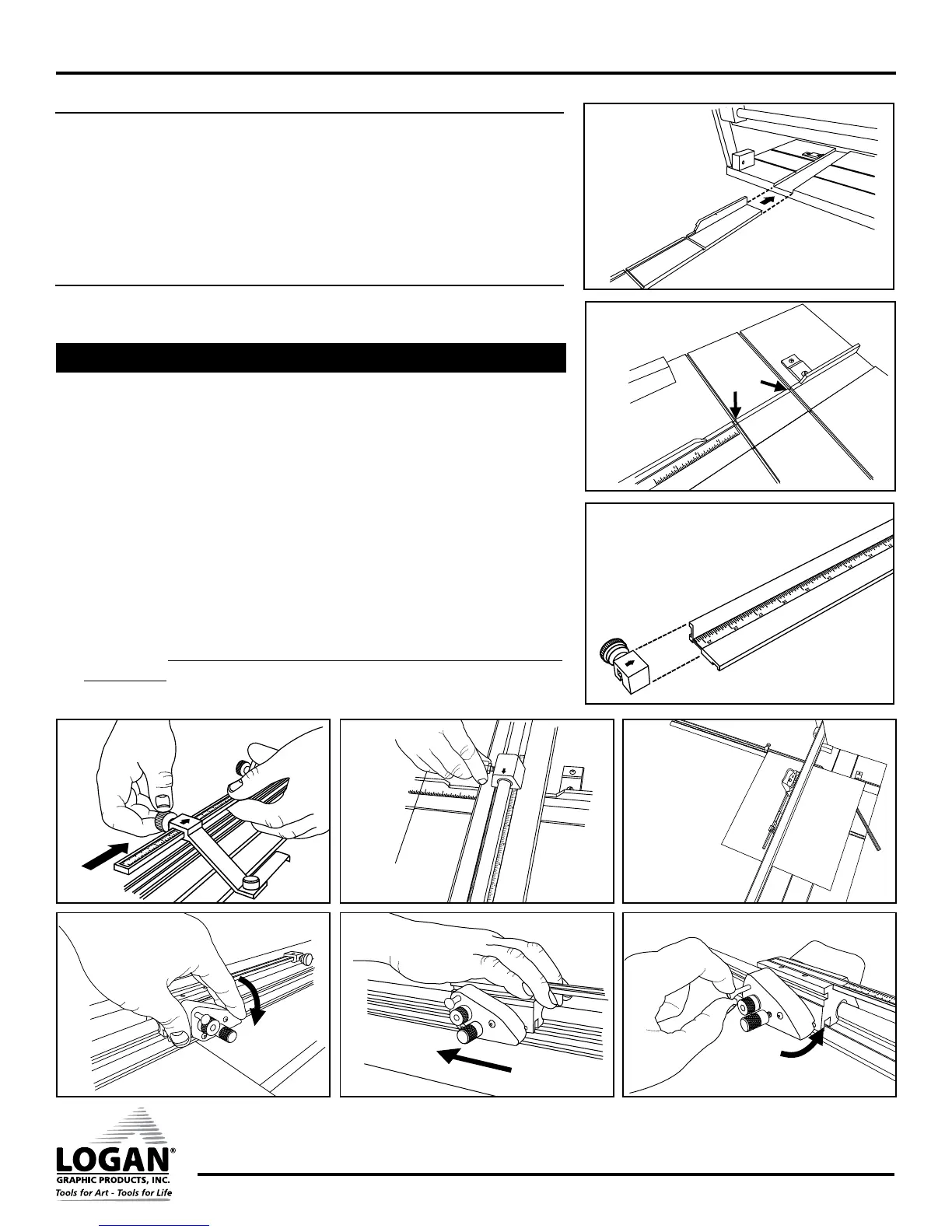

1. Remove mat guide and slip sheet.
2. Loosen bottom production stop and move to bottom of cutting bar. (Fig. 14)
3. Lift Handle bar into up position.
4. Set squaring arm stop to dimension of cut. Place mat (color side down) against
squaring arm and stop. (Fig. 15)
5. Lower handle bar into down position so cutting bar rests on mat.
6. Slide cutting head past far end of mat.
7. Rotate straight cut blade holder down until lock down pin “pops” into lock slot.
(Fig. 16)
8. Holding the cutting head as shown (Fig. 17), pull the cutting head until the board is
completely cut.
NOTE: Do not apply downward pressure on blade holder. The lock down pin is holding blade
at proper depth.
9. IMPORTANT: After finishing the cut, pull lock down pin out and rotate blade holder to
safety position. (Fig. 18)
NOTE: It is dangerous to leave the blade set in the “cut” position.
Straight Cutting Board to Size Using 32” Squaring Arm
1
2
3
Squaring Arm Assembly
NOTE: There are two squaring arms from which to choose. The 32” arm is used for straight
cutting. The 9” is an option if straight cutting is unnecessary or saving space is required.
1. Line up squaring arm along side of slot, ensuring the bottom of the v-groove is
underneath screw. (Fig. 10)
2. Slide into the slot.
3. Align slots and tighten screw. (Fig. 11)
4. Slide stop onto squaring arm. (Fig. 12)
Top Production Stop Assembly
1. Slide top production stop onto measuring bar. (Fig. 13)
2. Tighten knob.
Fig. 10
Fig. 11
Fig. 12
Fig. 15
Fig. 13
Fig. 16
Fig. 14
Fig. 17
Fig. 18
