Logan Graphic Products 650-1 User Manual

Framer’s Edge Elite Mat Cutter
Instruction Manual
Model 650-1 / 655-1 / 660-1
8
Logan Graphic Products Inc., 1100 Brown St, Wauconda, IL 60084 847-526-5515 cs@logangraphic.com LoganGraphic.com

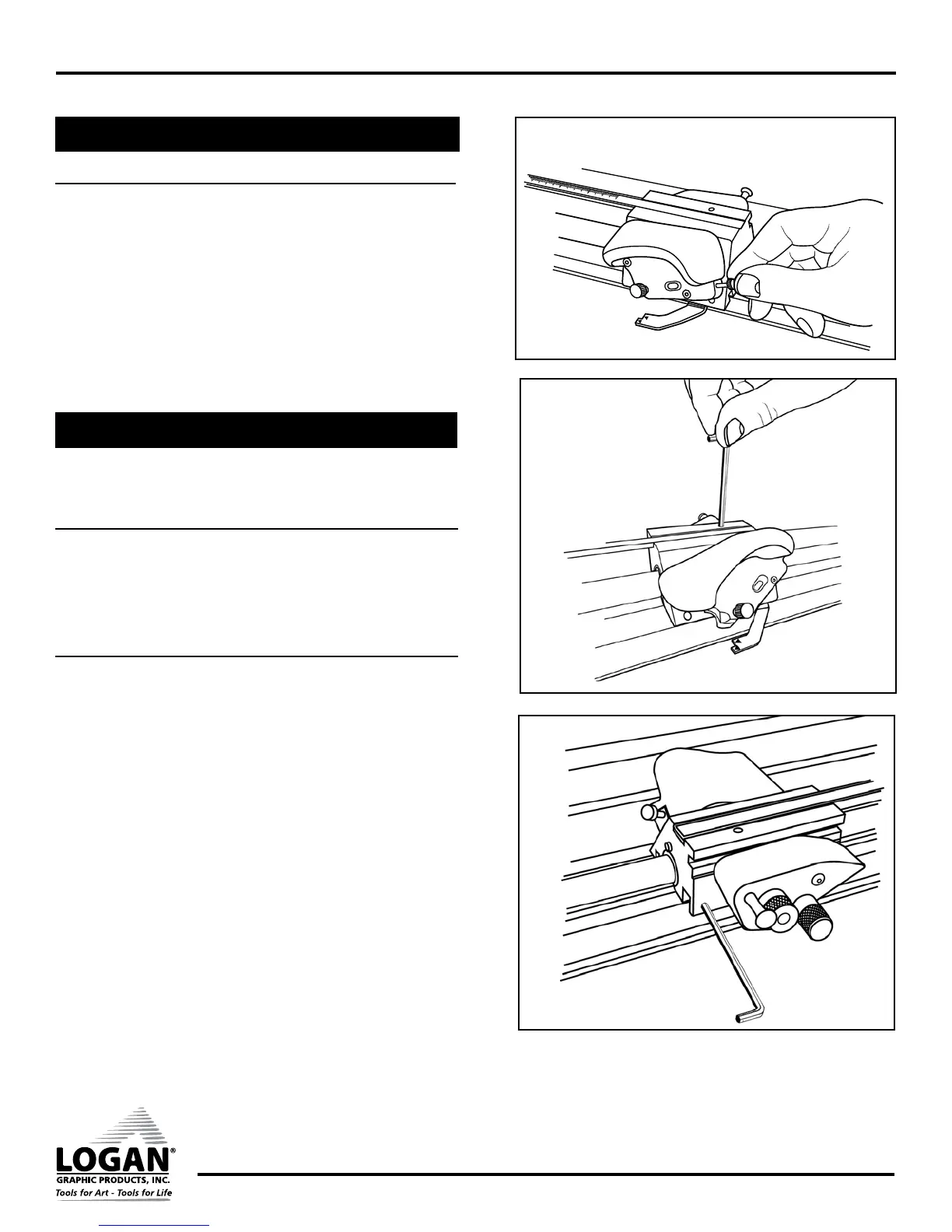

Bevel blade depth adjustment
1. Turn depth adjustment screw clockwise to increase depth or coun-
terclockwise to decrease depth. (Fig. 30)
NOTE: Use the blade window to reference various blade depths.
NOTE: It is always ideal to have just enough blade depth to slice through
the mat you are cutting and score slightly into the slip sheet. Extra blade
depth can allow the blade to flex, resulting in hooks or curves in the cut.
Extra blade depth can also cause the blade to start its cut sooner and
stop its cut later than needed, resulting in overcuts.
If cutting head is too loose, wobbles up and down OR rocks side to
side, you will need to adjust the cutting head.
Bushing Adjustment
1. To eliminate side to side rocking, tighten each adjustment screw
a very small amount using Allen Wrench. (Fig. 32)
2. Test rocking and readjust until rock is eliminated and sliding
motion is smooth.
Bearing Adjustment
1. To eliminate wobble up and down, tighten adjustment screw a
very small amount using Allen Wrench. (Fig. 31)
2. Test wobble and readjust until wobble is eliminated and sliding
motion is smooth.
Adjustments
Cutting Head Slide Adjustment
Fig. 30
Fig. 31
Fig. 32
