Logan 750-1 - Glass Cutting Instructions

Simplex Elite Mat Cutter
Instruction Manual Model 750-1 760-1
13
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515 LoganGraphic.com

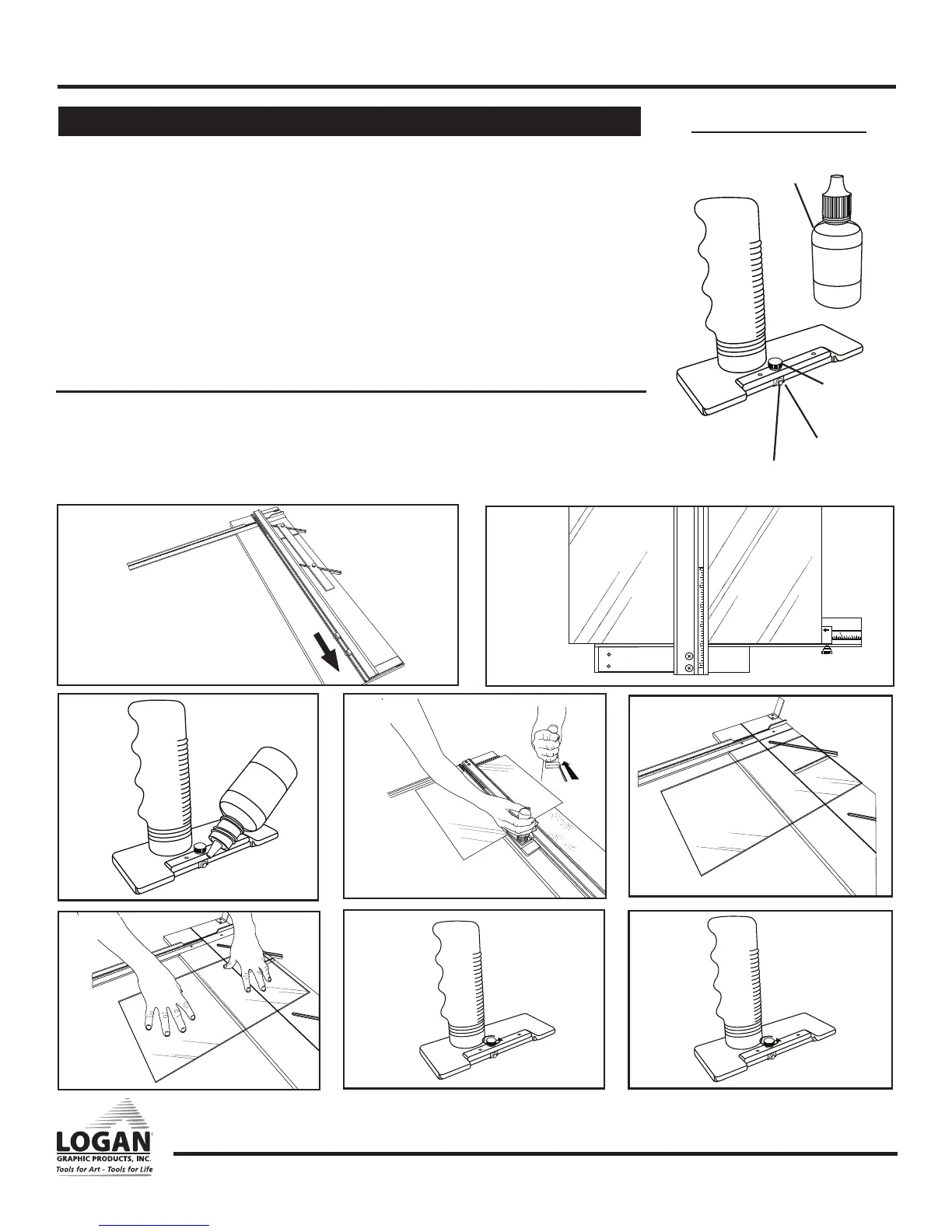

1. Remove mat guide and slip sheet.
2. Slide rail stops to top of rail or remove (Fig. 42).
3. Set squaring arm stop to dimension of cut.
4. Place clean glass under guide rail (Fig. 43) and against squaring arm.
5. Squeeze a drop of cutting oil onto glass wheel (Fig. 44).
6. Hook glass cutter onto guide rail past end of glass. Pull cutter until wheel hits glass (Fig. 45).
7. Pull glass cutter, keeping even constant downward pressure. Press hard enough to score
glass but not to flake or chip surface.
NOTE: Only score glass once. Do not retrace score.
8. Slide glass to align score with edge (Fig. 46) of board.
9. Press down on overhanging glass to separate (Fig. 47).
Change Glass Cutting Wheel
1. Loosen wheel shaft knob (Fig. 48).
2. Carefully remove wheel and shaft.
3. Slide wheel off shaft (Fig. 49).
4. Replace new wheel on shaft.
5. Reassemble.
Fig. 42
Fig. 45
Fig. 48
Fig. 46
Fig. 49
Fig. 44
Fig. 43
Fig. 47
704-1 Glass Cutter
Glass Cutting Instructions
Oil
Shaft
Wheel
Shaft Knob
Glass Cutting Wheel
