9
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 Toll Free 1 800 331 6232 www.logangraphic.com
Instruction Manual
Model F300-1
Studio Joiner

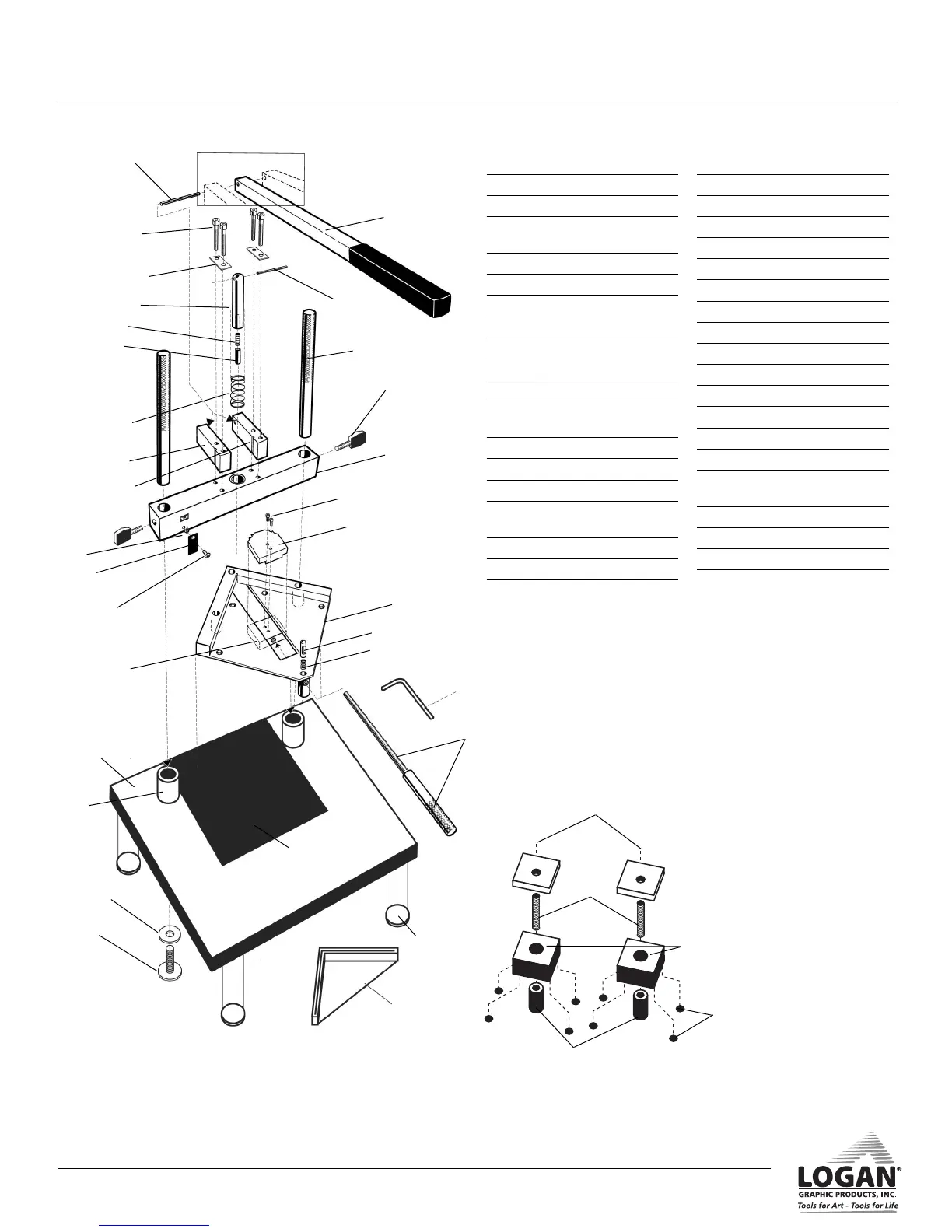

No. Description Qty.
L124N Feet 5
L662 Wrench 1
L869N/ Clamp Screw 1
L932N5
L978 Pin Spring 1
L908N2 Clamp Plate 1
L921N3-BO Handle 1
L922N10 Clamp Base 1
L923N10 Clamp Jaw 1
L925N Plastic Spacer 1
L927N Depth Gauge 1
L929L-BA/ Lever Block 2
L929R-BA
L930N8 Beam 1
L931N4 Drive Rod 1
L936N5 Button Spring 1
L933B4/ Spring Button 1
L933TS
L934N Block Cover 2
L935N Jaw Screw 2
L937 Depth Gauge Screw 1
L939N Block Screw 4
L941N2 Drive Spring 1
L943N3 Magnet 1
L948N2 Handle Pin 1
L949N3 Support Rod 2
L952N Wavy washer 1
L959 Rod Pin 1
L961N T-Knob 2
L1402N-CA Leveler Top 2
L1403 Leveler Rod 2
L1428 Neoprene Pad 1
L1470 Leveler Feet 8
L1471 Leveler Base 2
L1472 Leveler Threaded
Sleeve 2
L1567 Washers 2
L1568 Screws 2
LWS-926N3 Base Board 1
L948N2
L939N
L934N
L941N
L929L-BA
L927N
L937
L124N
L930N8
L961N
L
949N3
L959
L921N3-BO
LWS-926N3*
L1567
L1568
L925N
L1428*
L952N
L662
L1402N-CA*
L1403*
L1471*
L1470*
L1472*
L931N4*
L978*
L943N3*
L908N2
L935N
L923N10
L922N10
L933B4/L933TS*
L936N5
L932N8
L929R-BA
L572N6
* Items are only available as preassembled parts.
L956NStudio Joiner manual R1_08.qxd:Studio Joiner 1_4_05.qxd 1/4/10 11:17 AM Page 10
