Instruction Manual
Model F300-1
Studio Joiner
Beam - Adjustable cross bar which contains lever
and V-nail driver.
Magnetic Tip - Spring loaded pin attached to V-nail
driver which V-nails set on.
Depth Gauge - Indicator connected to beam which
adjusts beam to proper height for driving V-nail.
Knobs- allow beam to be moveable for adjustment.
Support Rods - Rods which set into base board and
provide support for beam.
Vise - Used to secure moulding for corner joining.
Handle - Used to tighten or loosen clamp jaw.
Spring Button - Press down and slide handle to quick
adjust clamp jaw into position.
Spacer - Used for irregular shape moulding to pro-
vide solid surface for joining.
V-Nails - V-shaped fasteners used to hold moulding
corners together.
Levelers - Small blocks designed to stabilize lengths
of moulding extending off the board to help with
beam height adjustment.

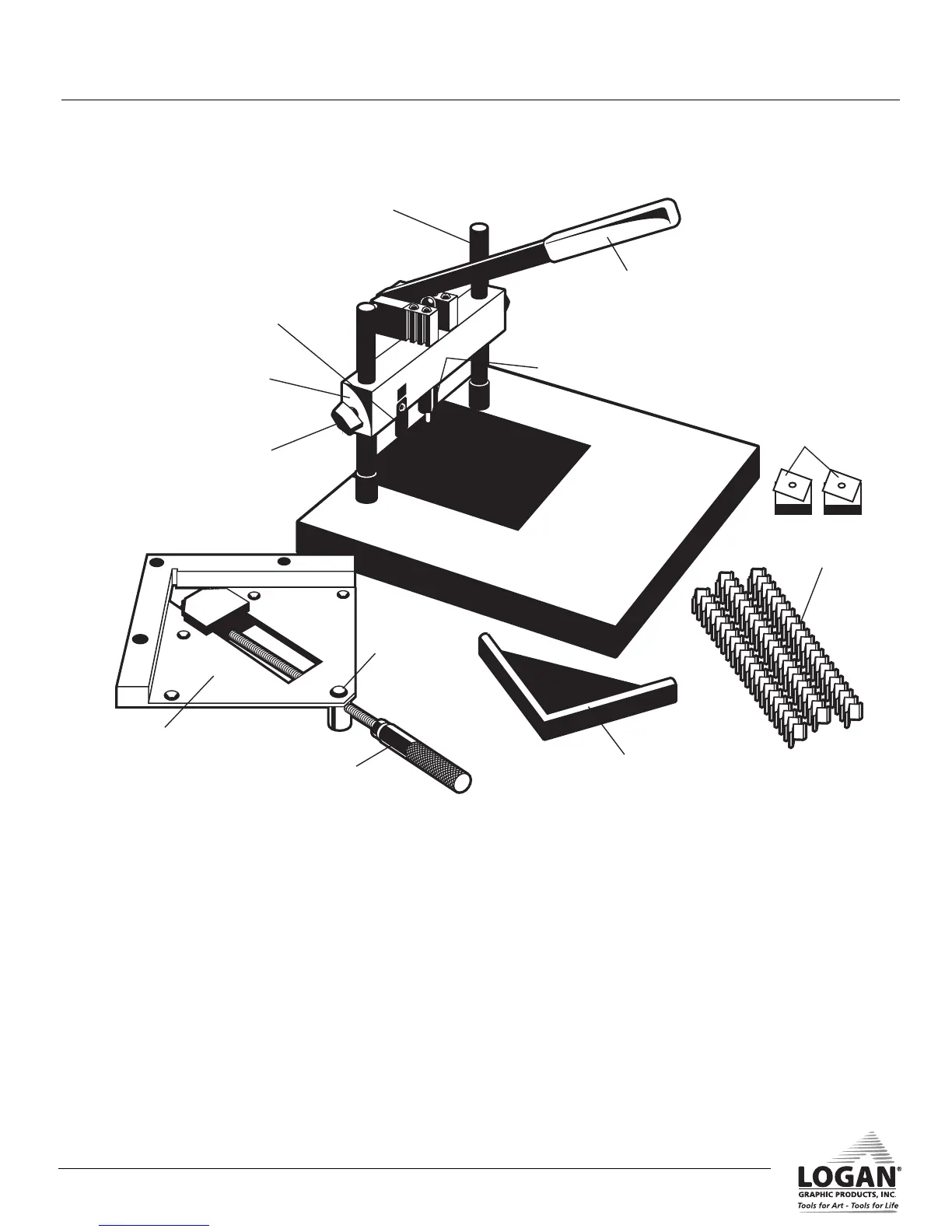

Identification
Support Rod
Beam
Knob
Lever
Magnetic Tip
Levelers
Depth Guage
Spring
Button
Handle
Vise
Spacer
V-Nails
