Instruction Manual
F500-4 Air-Matic Dual Drive Point Driver

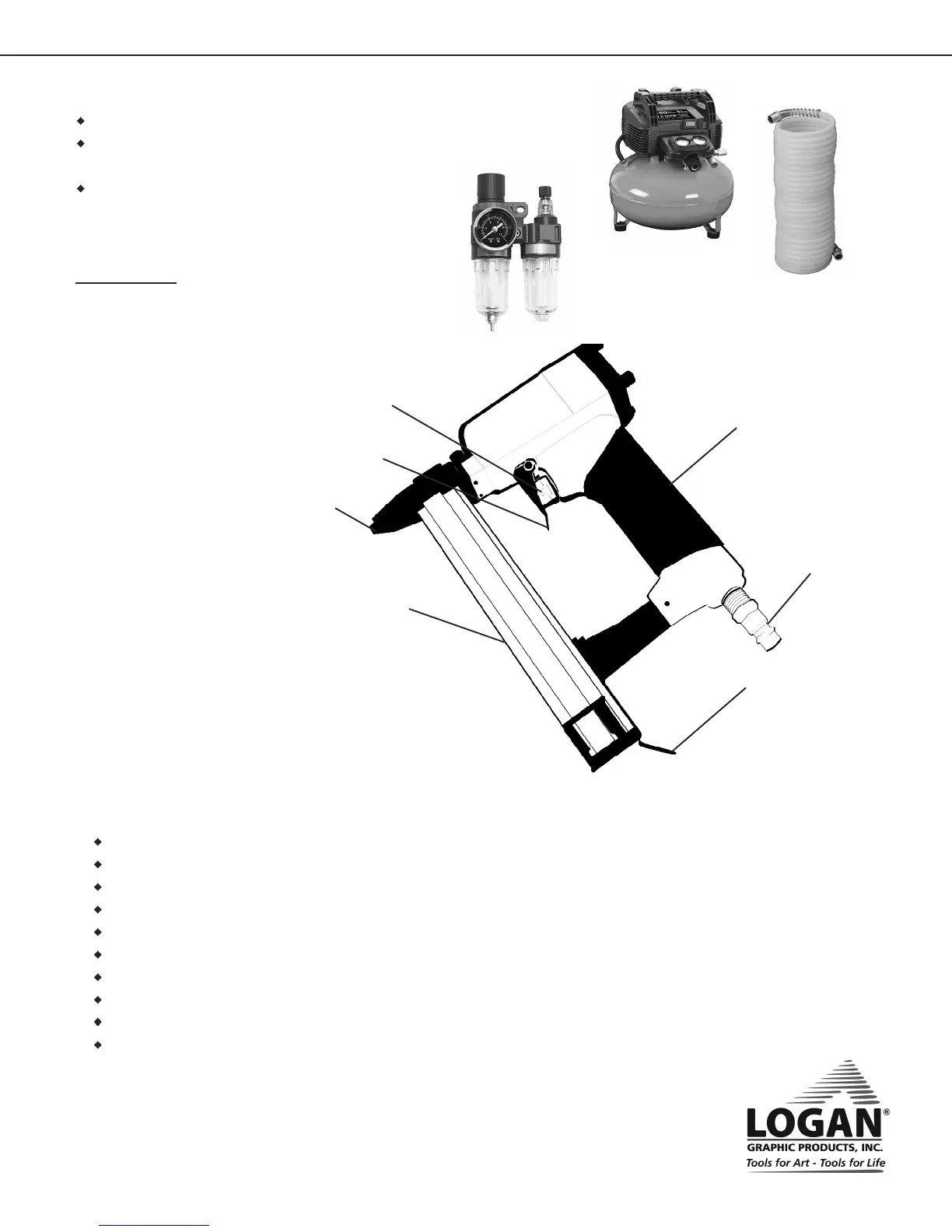

Model F500-4
Drive guide
Point magazine
Trigger
Air line connection
Magazine release lever
Handle grip
Trigger lock
Before you use your F500-4 Air-Matic Dual Drive Point Driver.......
Always use safety glasses when operating the Air-Matic Dual Drive.
Keep children away from air tools.
Never point the Air-Matic at yourself or anyone.
Do not operate the trigger when there are no points in the magazine.
Always use clean, dry air only. Do not use compressed gases of any kind.
Always use a regulator usually found on the air compressor at roughly 50 psi.
Do not exceed maximum psi or permanent damage to the tool can occur.
Engage the trigger lock mechanism anytime the tool is attached to an airline but not being used.
Always disconnect the air line before performing any maintenance or when loading more points.
Only use Logan replacement points.
Supplies needed-
Any air compressor producing between 50 and 100 psi
Air hose with 1/4” standard NPT male plug fittings or quick
release coupler
Regulator/lubricator (optional)
Contents
Air-Matic Dual Drive x 1
Rigid points x 100
Flexible points x 100
