GB-13
PreparationConnectionsInitial SetupUsing the FeaturesEPG (Electronic
Programme Guide)
Hints and Tips, Specification
and Safety Warnings
Using the DVD Features

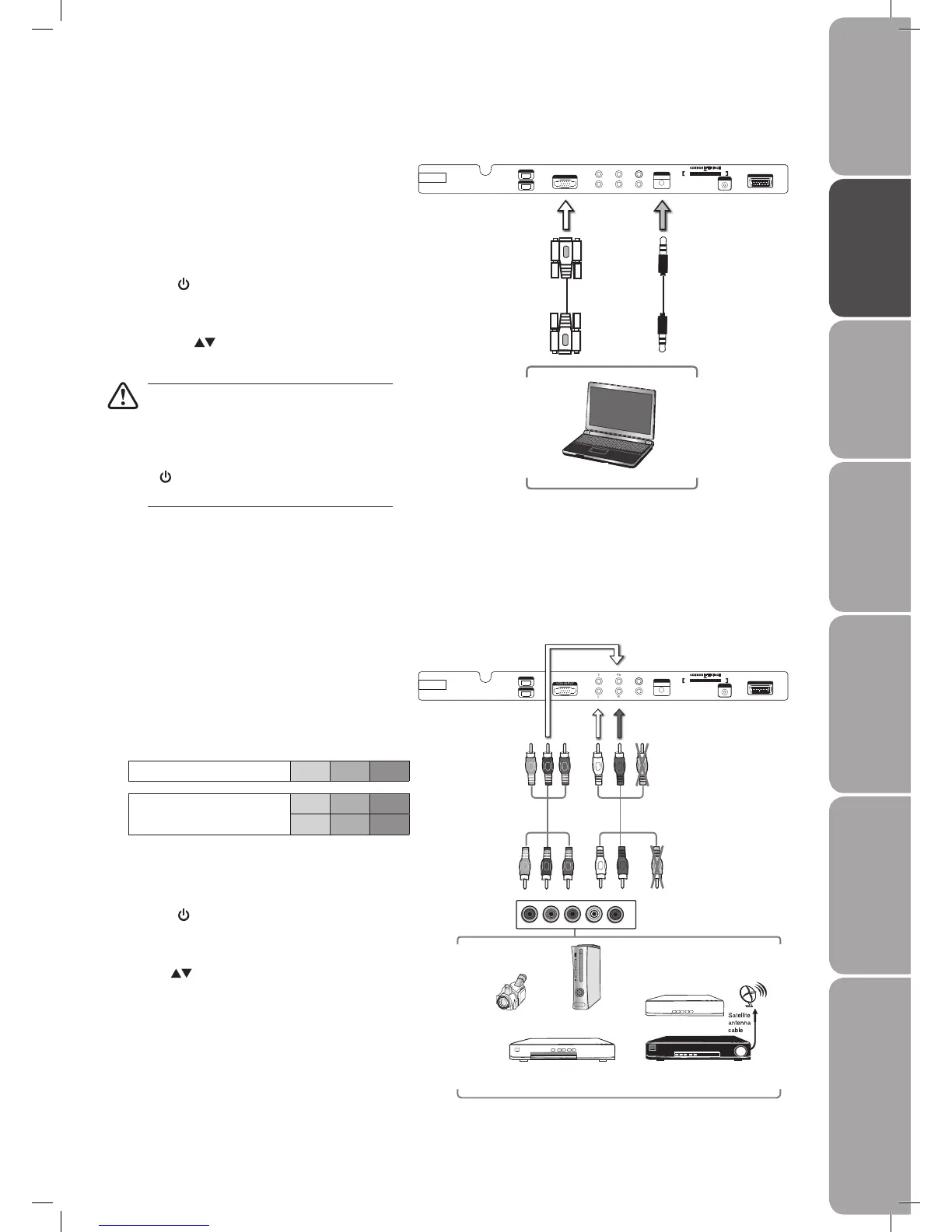

Connecting an AV Device with a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch at
the side of the TV.
4. Press the button on the side panel of the TV or on
the remote control to turn on your TV.
5. Press the SOURCE button to display the Source List.
Use the buttons to select YPbPr and then press
the OK button to confirm.
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
Rear View of TV
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Connecting a Computer with a VGA Cable
1. Use a VGA cable to connect the TV’s VGA input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
at the side of the TV.
3. Press the button on the side panel of the TV or
on the remote control to turn on your TV.
4. Press the SOURCE button to display the Source
List. Use the buttons to select PC and then
press the OK button to confirm.
• The best resolution is 1920 x 1080.
• If your computer is set to shut down after a
few minutes of idle mode, the TV will also
switch to standby due to no signal being
received, this is to save energy. Press the
button on the side panel of the TV or on
the remote control to restart the TV.
Rear View of TV
VGA Cable
(not included)
Audio Cable
(not included)
Computer
Component Cable
(not included)
Pb/Cb
Pb/Cb
Pr/Cr
Pr/Cr
Y
Y
VGA INPUT
Y Pb Pr
L R SPD IF
AUD IO
VGA INPUT
SCART
HDM I 1
HDM I 2
ANT
100 -240V ~ 50/6 0Hz
AC- INPUT
COM MON I NTERF ACE
CARD FACE FRON T
VGA INPUT
Y Pb Pr
L R SPD IF
AUD IO
VGA INPUT
SCART
HDM I 1
HDM I 2
ANT
100 -240V ~ 50/6 0Hz
AC- INPUT
COM MON I NTERF ACE
CARD FACE FRON T
L26DVDB20_IB_final110210_running change4.indd 13 10/02/2011 3:43 PM
