13

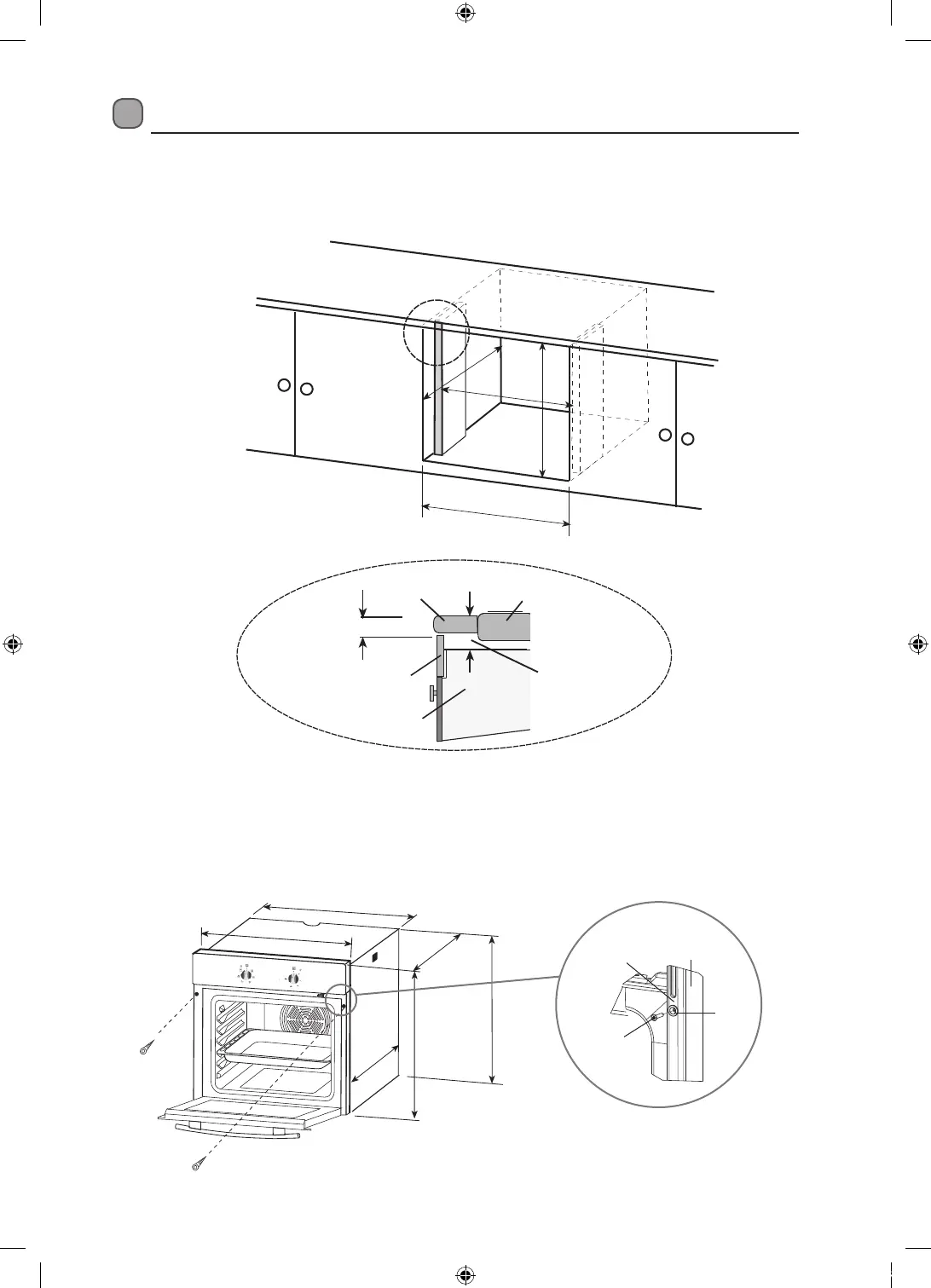

Installing the Built-in Oven
1. The space where the oven will be placed needs to beat least 60 cm wide, 58 cm deep and 59.5 cm high. A
minimum gap of 2.5 cm between the work surface and the control panel, and a distance of 5cm between
the work surface and top of the oven is needed, in order to be able to get to the back of the oven if
necessary and for easy access when sliding the oven out.
2. Ensure the electrical connections have been made.
3. Insert the oven into the cabinet by pushing it back into the space within the cabinet (Ensuring the electrical
cable is not trapped or touching hot parts). Open the door carefully, and insert the fixing screws through
the spacers into the fixing surface of the cabinet, ensure the front frame of the oven is touching the fixing
surface of the cabinet and tighten the fixing screws to hold the oven in place securely.
Cabinet cut - out sizes
59.5cm
58cm
56cm
60cm
Countertop
Built-in oven
Min.2.5cm
Control
panel
Distance between
countertop and
control panel
Built-in hob
Distance between
countertop and
top panel of built-in
oven
Min. 5cm
Cabinet cut - out sizes
59.5cm
58cm
56cm
60cm
Countertop
Built-in oven
Min.2.5cm
Control
panel
Distance between
countertop and
control panel
Built-in hob
Distance between
countertop and
top panel of built-in
oven
Min. 5cm
55.5cm
57cm
57cm
59cm
59.5cm
Mounting screws
Mounting
screw
Front
frame
Wooden
part
Spacer
