Logitech RALLY BAR Setup Guide

RALLY BAR MINI + TAP IP
Setup Guide
|
Guide d’installation

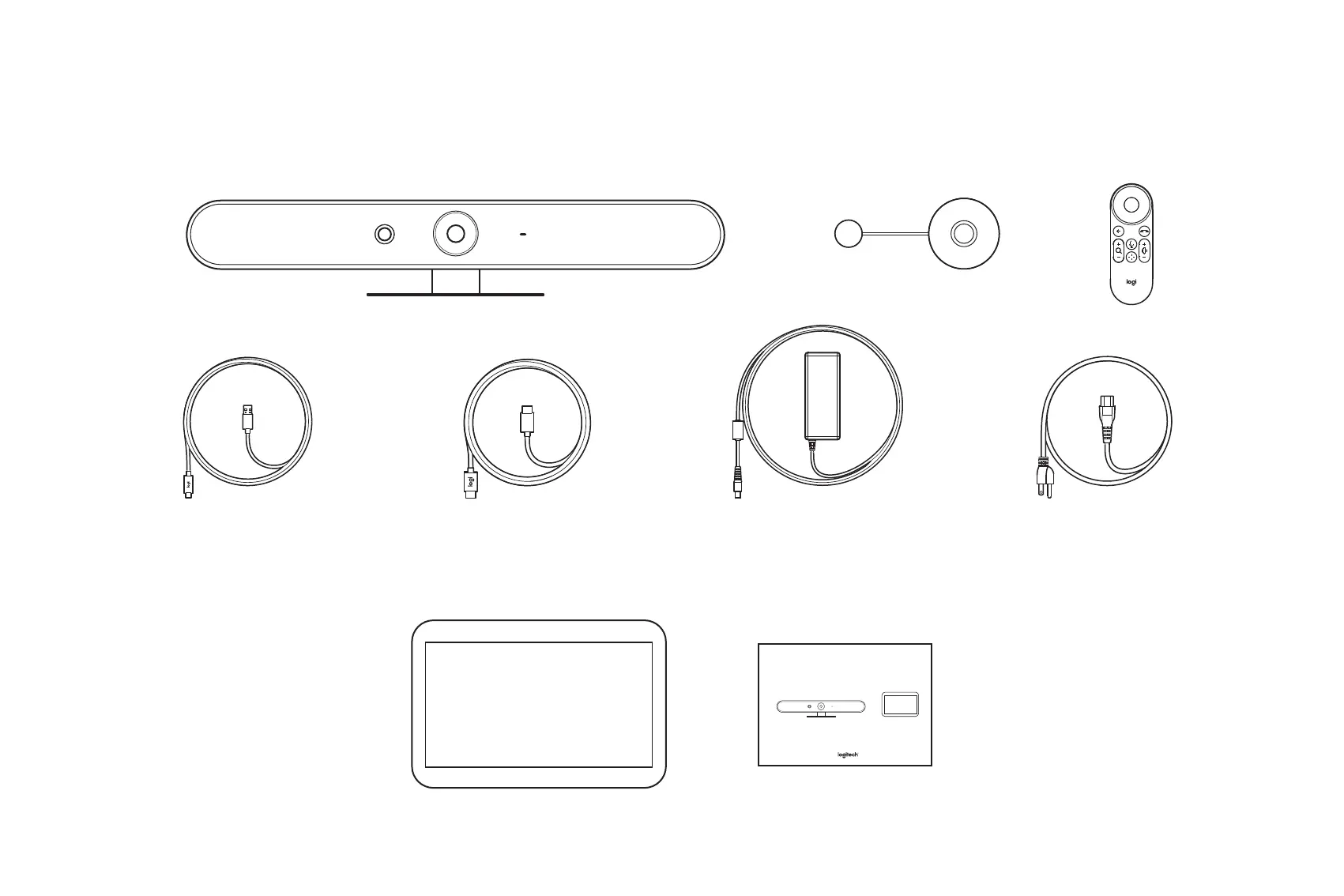

WHAT’S IN THE BOX
FR CONTENU DU COFFRET
DE INHALT
IT CONTENUTO DELLA CONFEZIONE
ES CONTENIDO DE LA CAJA
NL INHOUD VAN DE DOOS
SV INNEHÅLL
DA DET INDEHOLDER KASSEN
NO ESKEN
FI PAKKAUKSEN SISÄLTÖ
EL ΠΕΡΙΕΧΟΜΕΝΑ ΣΥΣΚΕΥΑΣΙΑΣ
RU КОМПЛЕКТ ПОСТАВКИ
PL ZAWARTOŚĆ ZESTAWU
HU A CSOMAG TARTALMA
CS OBSAH BALENÍ
SK OBSAH BALENIA
UK У КОМПЛЕКТІ
ET KARBI SISU
LV IEPAKOJUMA SATURS
LT DĖŽUTĖJE YRA
BG СЪДЪРЖАНИЕ НА КУТИЯТА
HR ŠTO JE U KUTIJI
SR SADRŽAJ PAKOVANJA
SL KAJ JE V ŠKATLI?
RO CONINUTUL CUTIEI
TR KUTUNUN İÇİNDEKİLER
AR 
HE 
PT CONTEÚDO DA EMBALAGEM
繁體中文 包裝內容
한국어 박스 내용물
ID ISI KEMASAN

Logitech RALLY BAR Specifications

General

Pan range	-25 - 25 °
PTZ control	Yes
Product type	Group video conferencing system
Product color	Graphite
Tilt angle range	-15 - 15 °
Number of persons	- person(s)
Megapixel	- MP
Sensor type	-
Digital zoom	3 x
Optical zoom	5 x
Image sensor size	- \
Diagonal field of view	90 °
Vertical field of view	52.2 °
Horizontal field of view	82.1 °
Remote control interface	Bluetooth
Maximum frame rate	30 fps
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Microphone frequency	90 - 16000 Hz
Number of microphones	6
Microphone sensitivity	-36 dB
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB
Output level	92/99 dB
Sample rates	0 - 48 kHz
RMS rated power	8 W
Microphone pick-up range	4.5 m
Output voltage Total Harmonic Distortion (THD)	2 %
Telepresence	No
USB connector type	USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Heat dissipation	64 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Current	4.754 A
Power plug type	Type C
AC input voltage	100 - 240 V
Battery capacity	220 mAh
DC input voltage	19 V
Power source type	AC
Battery technology	Lithium
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, IPv6
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
HDMI cable length	2 m
Power cable length	2.5 m
Master (outer) case width	220 mm
Master (outer) case height	231 mm
Master (outer) case length	1004 mm
Master (outer) case weight	9909 g
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	160 mm
Width	910 mm
Height	164 mm
Weight	7080 g
Package depth	989 mm
Package width	207 mm
Package height	218 mm
Package weight	9305 g
