Logitech Z200 User Manual

English 4

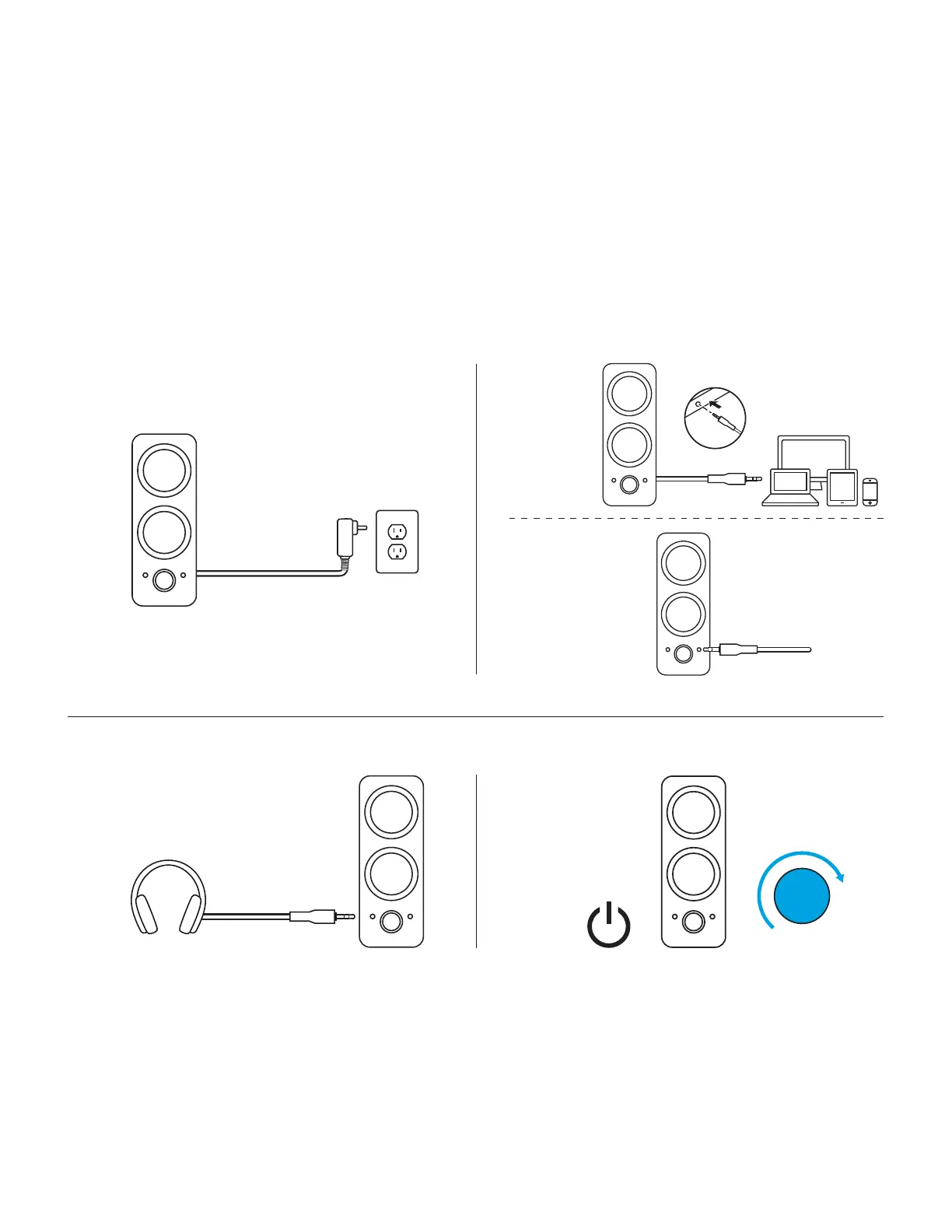

CONNECT THE SPEAKERS
1. Connect the DC power plug to the back of your right speaker and connect your AC adapter
tothe electrical outlet.
2A. Connect to the 3.5 mm audio jack on your source device using the attached 3.5 mm auxiliary
input on the right speaker.
2B. You can also connect a device to the auxiliary input port on the front of the right speaker.
3. (Optional) Connect your headphones to the headphone jack on the front of the right speaker.
4. Turn the speaker on using the power knob.
2A
2B
4
1
3
3.5mm

Logitech Z200 Specifications

General

Product color	White
Volume control	Rotary
Bass adjustment	Yes
Recommended usage	PC
Speaker type	-
Number of drivers	2
Speaker placement	Tabletop/bookshelf
Audio output channels	2.0 channels
Frequency range	120 - 20000 Hz
RMS rated power	5 W
Headphone outputs	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired
Cable length	1.2 m
Power plug type	Type C
Power source type	AC
Cables included	AC, Audio (3.5mm)
Quantity per pack	2 pc(s)
Master (outer) case width	231 mm
Master (outer) case height	262 mm
Master (outer) case length	522 mm
Master (outer) case weight	6467 g
Harmonized System (HS) code	85182200
Package type	Box
Package depth	224 mm
Package width	128 mm
Package height	249 mm
Package weight	1379 g

Weight and Dimensions

Depth	124.07 mm
Width	90 mm
Height	241.2 mm
Weight	1000 g
