Logitech ZONE 750 Complete Setup Guide

INSTRUCTIONS

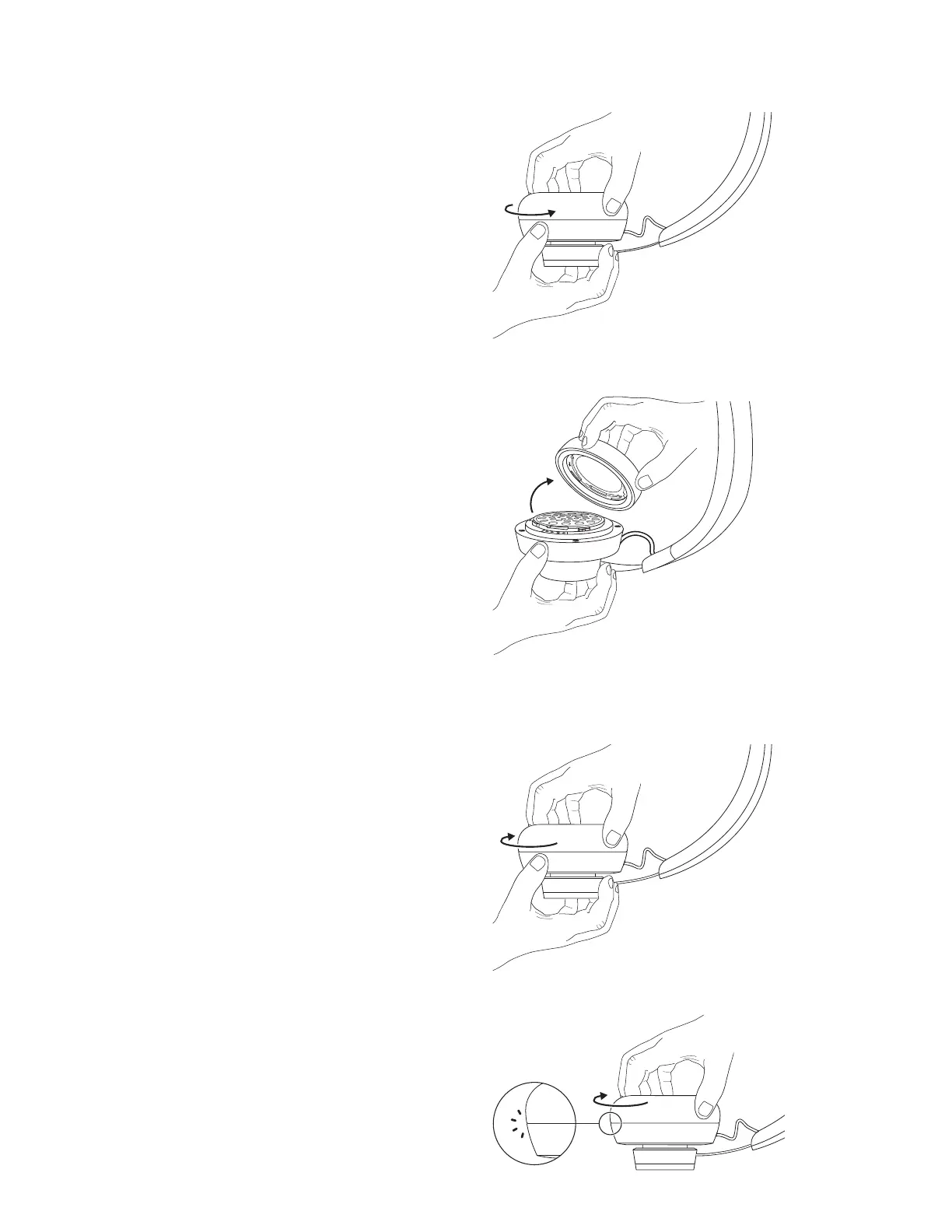

1 Firmly grasp the leatherette earpad along
the side with one hand and hold the earcan
with the other hand.
Rotate the earpad counterclockwise
todetach it from the earcan.
2 Holding the new earpad, place it on top
of the earcan with one hand and use
theother hand to hold the earcan.
Slowly rotate the earpad clockwise until
you feel it click into place.
4 English

Logitech ZONE 750 Specifications

Audio Specifications

input impedance	32 Ohms
sensitivity (headphone)	99 dB SPL/1 mW/1K Hz
sensitivity (microphone)	Main mic: -48 dBV/Pa, Secondary mic: -40 dBV/Pa
frequency response (headset)	20-16 kHz
frequency response (microphone)	100-16 kHz

Cable

cable length	1.9 m
