Logitech ZONE WIRELESS Complete Setup Guide

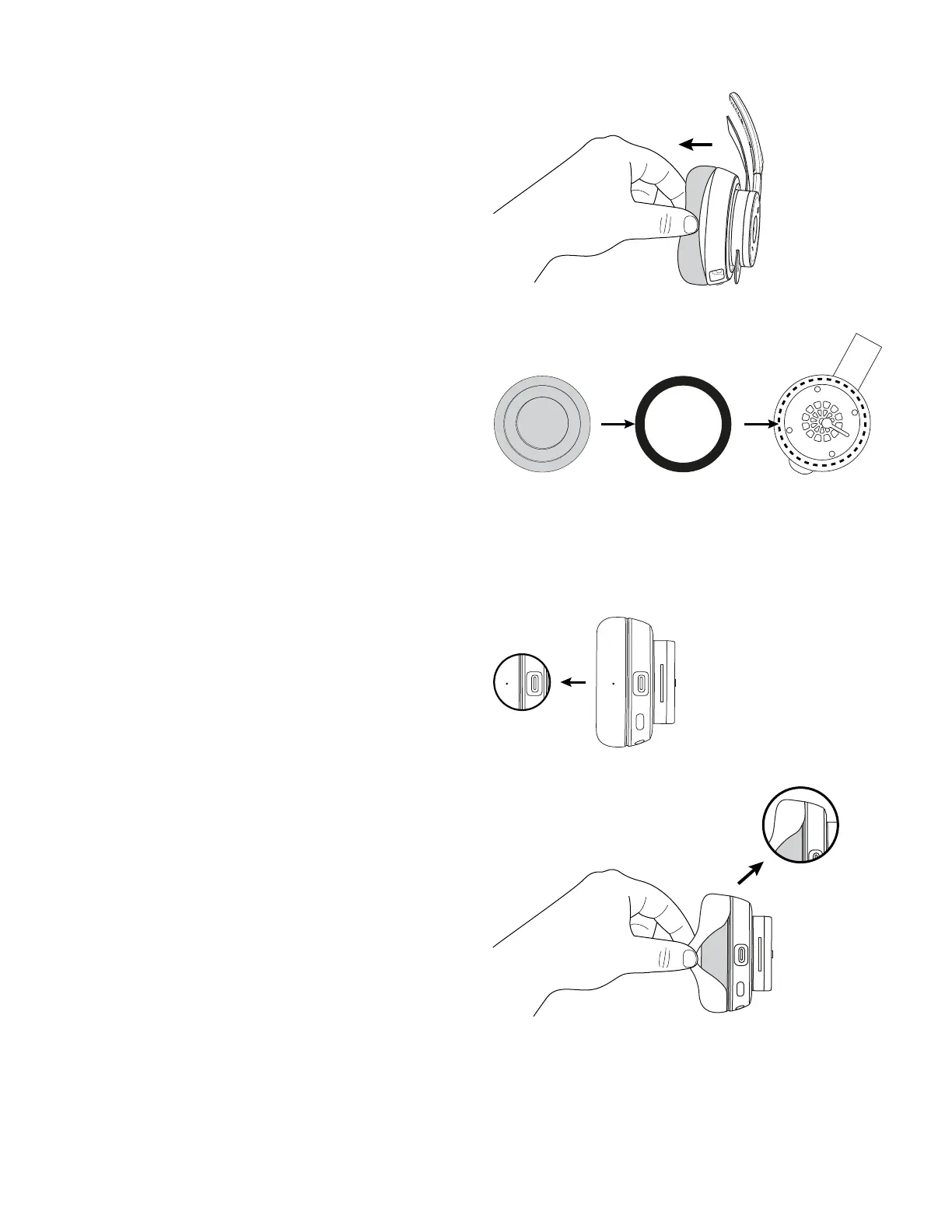

3. If foam cushion is damaged, please follow
the steps below.
a. Peel the foam cushion o and replace
with a new one.
c. Then attach the foam cushion to the tape.
4. Grasp the new earpad cover, making sure that the
small holes on the side align with the top and bottom
of the ear cup. It should align with the USB C port at
the bottom.
b. Place the tape on the top of the ear cup rst.
TapeFoam cushion Ear cup
5. Starting from the top, slot the edge of the earpad
cover inside the gap. Put the edge of the cover into
the gap around the earcan.
5 English

Logitech ZONE WIRELESS Specifications

General

Foldable	Yes
Cable length	1.3 m
Headset type	Binaural
Product type	Headset
Product color	Graphite
Wearing style	Head-band
Recommended usage	Calls/Music
Mobile operating systems supported	Android
USB connector	USB Type-A
Wireless range	30 m
3.5 mm connector	No
Connectivity technology	Wireless
Packaging content	-
Quantity	1
Cables included	USB
Impedance	- Ω
Ear coupling	Supraaural
Headphone frequency	30 - 13000 Hz
Microphone type	Boom
Microphone frequency	85 - 20000 Hz
Microphone direction type	Omnidirectional/Bidirectional microphone
Battery capacity	1.44 Wh
Battery recharge time	2 h
Continuous audio playback time	16 h
Package depth	232 mm
Package width	185 mm
Package height	81 mm
Package weight	458.7 g
Master (outer) case width	243 mm
Master (outer) case height	202 mm
Master (outer) case length	331 mm
Master (outer) case weight	2255 g
Harmonized System (HS) code	85183000

Weight and Dimensions

Depth	70.7 mm
Width	176.7 mm
Height	174.7 mm
Weight	180 g
